Ferris 5900933 - Procut S Series (H2226KAVFS) Wheel Riding Mower

Model: 5900933 - Procut S Series (H2226KAVFS)

Back To Assemblies

Save Part Not Listed?
product name

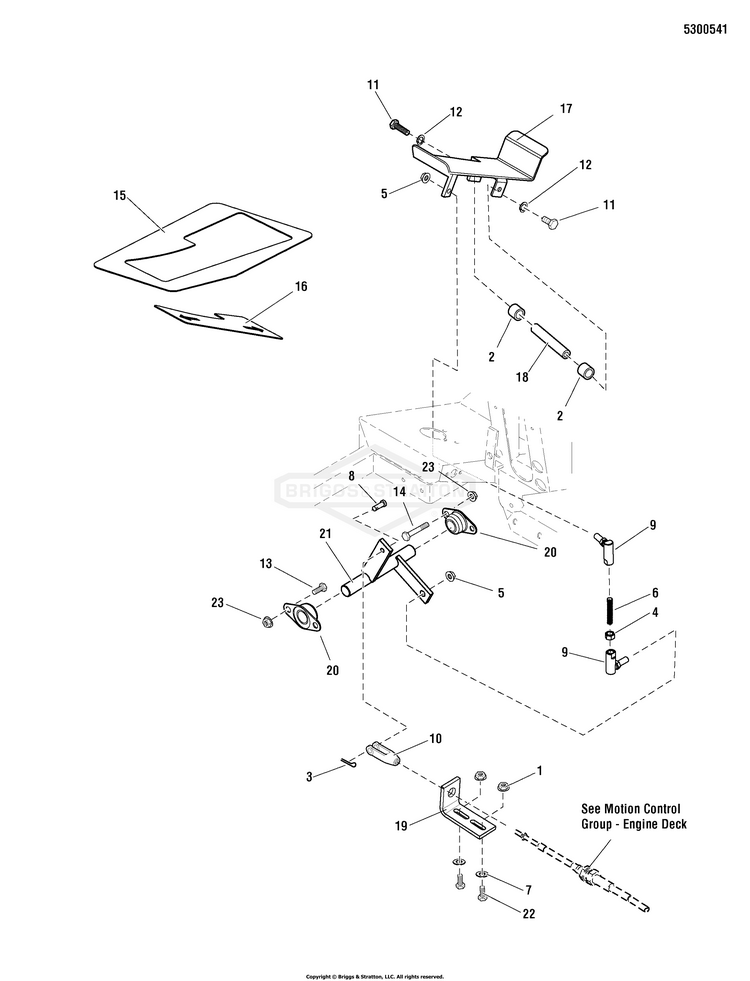

Motion Control Group - Trailer

...
...
1
NUT, 5/16-18 HEX SERR BS-5025139SM
...
2
BUSHING, .75 X 1.00 X BS-5023344SM
...
3
PIN, COTTER, 3/32X.75 BS-703312
...
4
NUT, HEX, 3/8-24 BS-703895
...
5
NUT BS-5025097FS
...
6
STUD BS-5100802FS
...
7
WASHER BS-703350
...
8
PIN - CLEVIS .25X.875 BS-5025212X7SM
...
9
JOINT, Ball BS-5020805FS
...
10
CLEVIS BS-84007748
...
11
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
12
WASHER, 3/8" SPLIT LO BS-5025171SM
...
13
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
14
SCREW BS-703868
...
15
WALK, SAFETY BS-5101012FS
...
16
PEDAL, FOOT BS-5101006FS
...
17
PEDAL, FOOT BS-5402387BFS
...
18
ROD, FOOT PEDAL PIVOT BS-5042147SM
...
19
BRACKET BS-5042170BFS
...
20
BEARING, BRONZE FLANG BS-5021098SM
...
21
WELDMENT BS-5401827BFS
...
22
BOLT BS-5025011X8FS
...
23
NUT BS-703115
Schematic Image Zoomed
