Ferris 5900933 - Procut S Series (H2226KAVFS) Wheel Riding Mower

Model: 5900933 - Procut S Series (H2226KAVFS)

Back To Assemblies

Save Part Not Listed?
product name

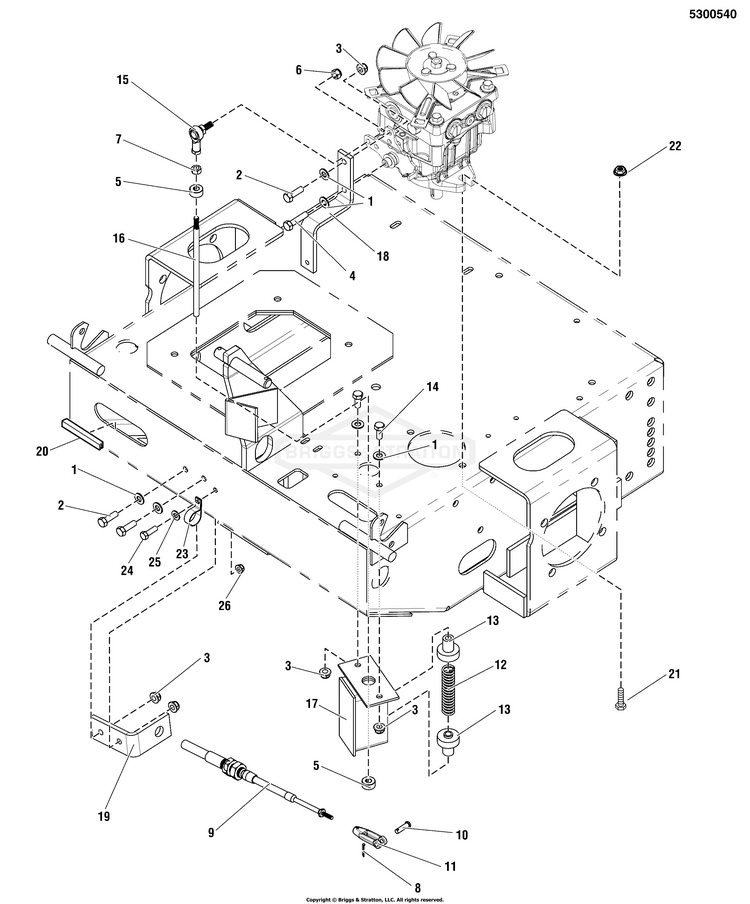

Motion Control Group - Engine Deck

...
...
1
WASHER BS-703350
...
2
BOLT BS-5025011X8FS
...
3
NUT BS-703115
...
4
BOLT, M8-1.25 X 25MM BS-5025237X25YP
...
5
COLLAR, 5/16" SET BS-5020047SM
...
6
NUT, 5/16-24 HEX NYLO BS-5025045SM
...
7
NUT BS-5025033FS
...
8
PIN, COTTER, 3/32X.75 BS-703312
...
9
CABLE, CONTROL BS-5100801FS
...
10
PIN - CLEVIS .25X.875 BS-5025212X7SM
...
11
CLEVIS BS-84007748
...
12
SPRING, RETURN BS-5021354FS
...
13
SPRING, Return BS-5042911FS
...
14
BOLT BS-5025011X8FS
...
15
JOINT, Ball BS-5104833FS
...
16
ROD BS-5100820FS
...
17
RETURN, NEUTRAL BS-5402376BFS
...
18
BAR BS-5402164BFS
...
19
MOUNT BS-5402194BFS
...
20
BLACK SOFTONE Q-TRIM 3.5" LONG BS-5050840X3P5
...
21
BOLT, 3/8-16 X 1-1/4" BS-5025013X10SM
...
22
NUT, 3/8-16 HEX SERRA BS-5025128SM
...
23
CLAMP BS-5021500FS
...
24
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
25
WASHER BS-703332
...
26
NUT BS-5025391FS
Schematic Image Zoomed
