Ferris 5900933 - Procut S Series (H2226KAVFS) Wheel Riding Mower

Model: 5900933 - Procut S Series (H2226KAVFS)

Back To Assemblies

Save Part Not Listed?
product name

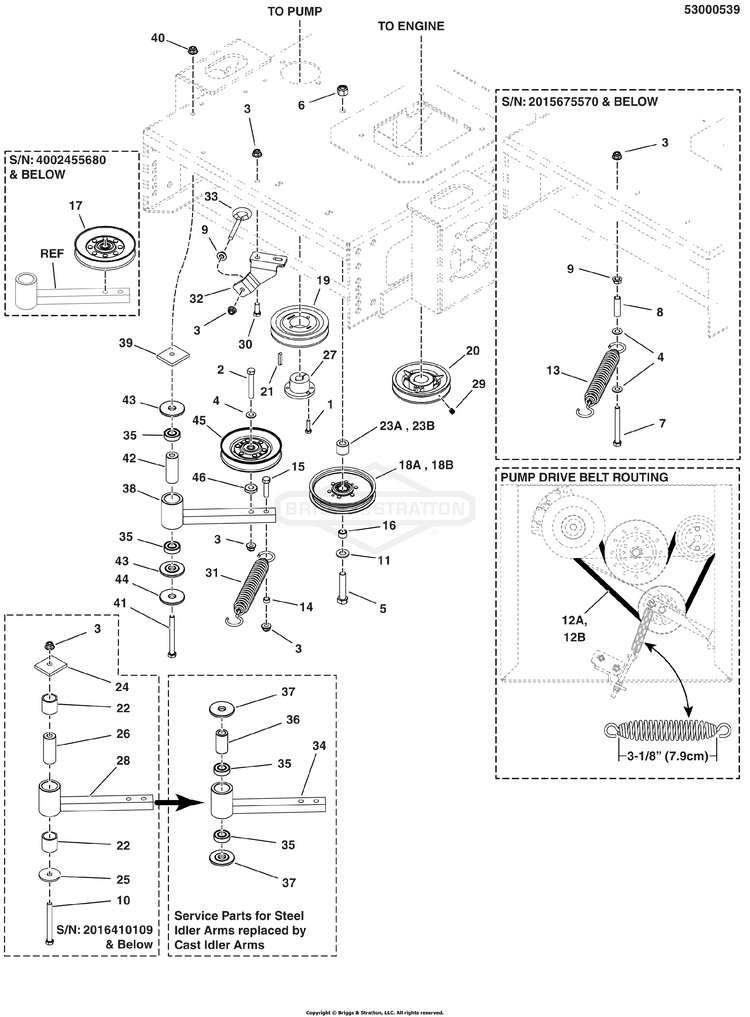

Pump Drive Group

...
...
1
BOLT, 1/4-20 X 1", GD BS-5025010X8SM
...
2
BOLT BS-84007037
...
3
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
4
WASHER BS-5025156FS
...
5
BOLT, 1/2-20 X 2-1/2" BS-5025018X20SM
...
6
NUT, 1/2-20 HEX NYLON BS-5025098SM
...
7
BOLT, 3/8-16 X 3-1/2" BS-5025013X28SM
...
8
HOSE BS-84009617
...
9
NUT, 3/8-16 HEX SERRA BS-5025128SM
...
10
BOLT, 3/8-16 X 4" GD5 BS-5025013X32SM
...
11
WASHER, 1/2" SAE BS-5025158SM
...
12A
BELT (S/N: 2015675571 & Above) BS-5103495FS
...
12B
BELT (S/N: 2015675570 & Below) BS-84009019
...
13
SPRING, EXT BS-5100633YP
...
14
SPACER, .38 X .50 X . BS-5041930SM
...
15
CAPSCREW,3/8-16X1.5 BS-703406
...
16
INSERT, BEARING BS-5020870SM
...
18B
PULLEY, IDLER (S/N: 2015675570 & Below) BS-84010022
...
19
PULLEY BS-5100815FS
...
20
PULLEY, 4.75 OD X 1-1 BS-5021682YP
...
21
KEY, 5MM SQ. W/ RADIU BS-5023254SM
...
22
BUSHING, BRASS, 1.25X BS-5022157SM
...
23A
SPACER, .52 X 1.25 X (S/N: 2015675571 & Above) BS-5047142SM
...
23B
SPACER, .52 X 1.00 X (S/N: 2015675570 & Below) BS-5044673SM
...
24
SPACER, IDLER PIVOT BS-5045090SM
...
25
WASHER, .41 X 1.75 X BS-5025305SM
...
26
SPACER, .39X1.00X2.55 BS-5102004YP
...
27
BUSHING BS-5022383YP
...
28
WELD, ARM, PUMP DRIVE IDLER - BLK BS-5046430A
...
29
SCREW, Set, Hex Socket Head, Cup Point, 5/16-18 x 3/8 BS-1677029SM
...
30
BOLT, 3/8-16 X 1" GD5 BS-5025013X8SM
...
31
SPRING, Extension BS-5102668FS
...
32
BRACKET BS-5409400BFS
...
33
EYE BOLT, 3/8-16 X 5" BS-5023497SM
...
34
ARM, IDLER (Includes items # 35 - 37)(5101178A) BS-84008906
...
35
BEARING, BALL, AXLE BS-7078243YP
...
36
SPACER BS-5102580YP
...
37
SPACER BS-5102579YP
...
38
ASSM, IDLER ARM, PUMP DRIVE, 1/2ID, CAST (SV) (S/N: 2016410110 & Above)(5101178A) BS-5411066YP
...
39
SPACER (S/N: 2016410110 & Above) BS-5103284FS
...
40
NUT (S/N: 2016410110 & Above) BS-770225
...
41
BOLT, 1/2-13 X 4 GD5 (S/N: 2016410110 & Above) BS-5025017X32YP
...
42
SPACER, .52 X .84 X 1 (S/N: 2016410110 & Above) BS-5103812YP
...
43
SPACER, IDLER ARM (S/N: 2016410110 & Above) BS-5103262YP
...
44
WASHER (S/N: 2016410110 & Above) BS-5103282YP
...
45
PULLEY (S/N: 4002455681 and Above) BS-84004874
...
46
SPACER, .39 X 1.00 X (S/N: 4002455681 and Above) BS-5044960SM
