Ferris 5900933 - Procut S Series (H2226KAVFS) Wheel Riding Mower

Model: 5900933 - Procut S Series (H2226KAVFS)

Back To Assemblies

Save Part Not Listed?
product name

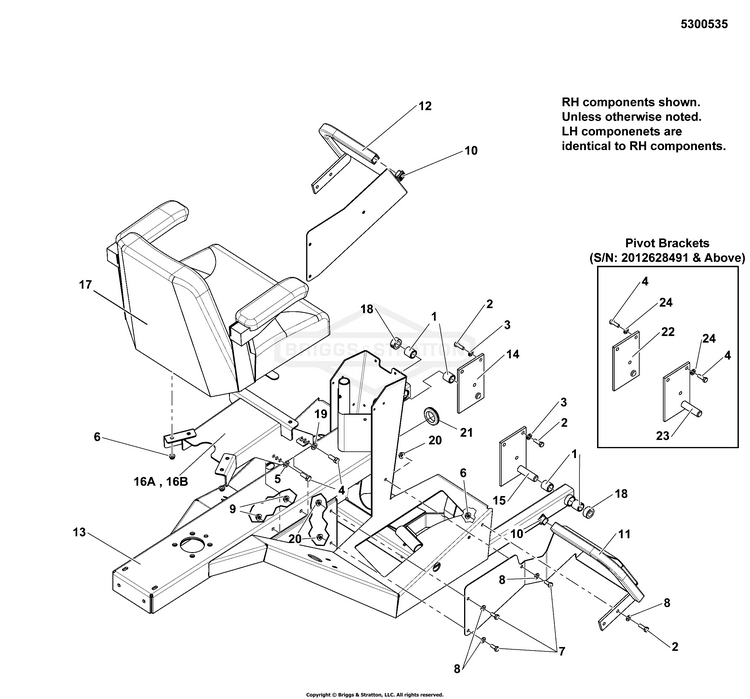

Seat & Mount Group

...
...
1
BUSHING, .75 X 1.00 X BS-5023344SM
...
2
BOLT BS-5025011X8FS
...
3
WASHER, 5/16" LOCK BS-5025170SM
...
4
BOLT, 3/8-16 X 1" GD5 BS-5025013X8SM
...
5
WASHER BS-5025156FS
...
6
NUT BS-703115
...
7
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
8
WASHER BS-703350
...
9
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
10
CAP, PLASTIC, 1" X 1" BS-5021686
...
11
GUARD, RH BS-5402287BFS
...
12
GUARD, LH BS-5402286BFS
...
13
FRAME ASSEMBLY BS-5421829BFS
...
14
PIVOT (S/N: 2012628490 & Below) BS-84010463
...
15
PIVOT (S/N: 2012628490 & Below) BS-84010464
...
16A
WELD, SEAT MOUNT - RED (S/N: 2014582799 & Above) BS-5408073B
...
16B
WELD, SEAT MOUNT - RED (S/N: 2014582798 & Below) BS-5401708B
...
17
SEAT ASSEMBLY (S/N: 4000875837 & Above) BS-5108191FS
...
17
SEAT (S/N: 2017192383 to 4000875836) BS-84003661
...
17
SEAT ASSEMBLY (S/N: 2015460123 to 2017192382) BS-5108191FS
...
17
SEAT, LOW, COMPANION (S/N: 2014582799 to 2015460122) BS-5103004
...
17
SEAT, GRAY, COMPLETE (S/N: 2014582798 & Below) BS-5022031SM
...
18
COLLAR, 3/4" SPLIT BS-5010114SM
...
19

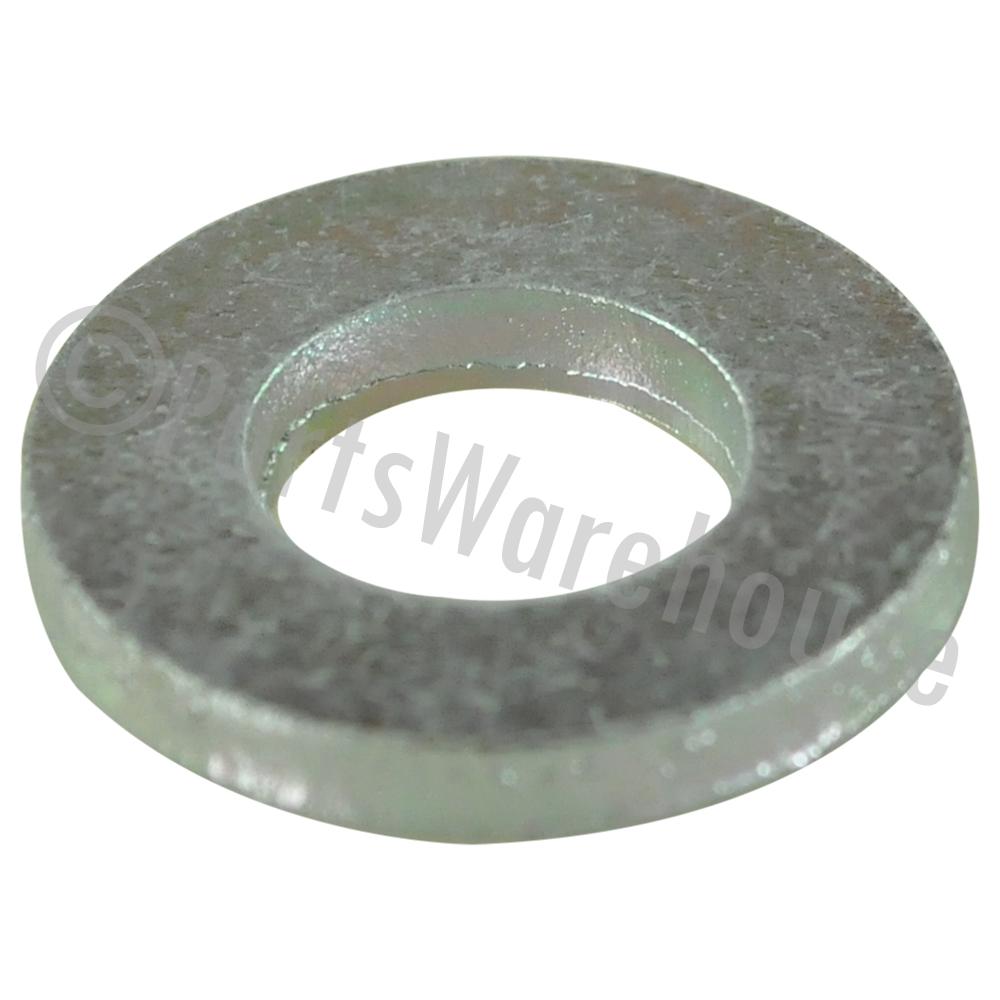

WASHER, 3/8" BS-5025293SM
...
20
NUT, 5/16-18 HEX SERR BS-5025139SM
...
21
GROMMET, 7/8 BS-5021379SM
...
22
PIVOT (S/N: 2012628491 & Above) BS-5403653BFS
...
23
PIVOT (S/N: 2012628491 & Above) BS-5403652BFS
...
24
WASHER, 3/8" SPLIT LO BS-5025171SM
