Ferris 5900933 - Procut S Series (H2226KAVFS) Wheel Riding Mower

Model: 5900933 - Procut S Series (H2226KAVFS)

Back To Assemblies

Save Part Not Listed?
product name

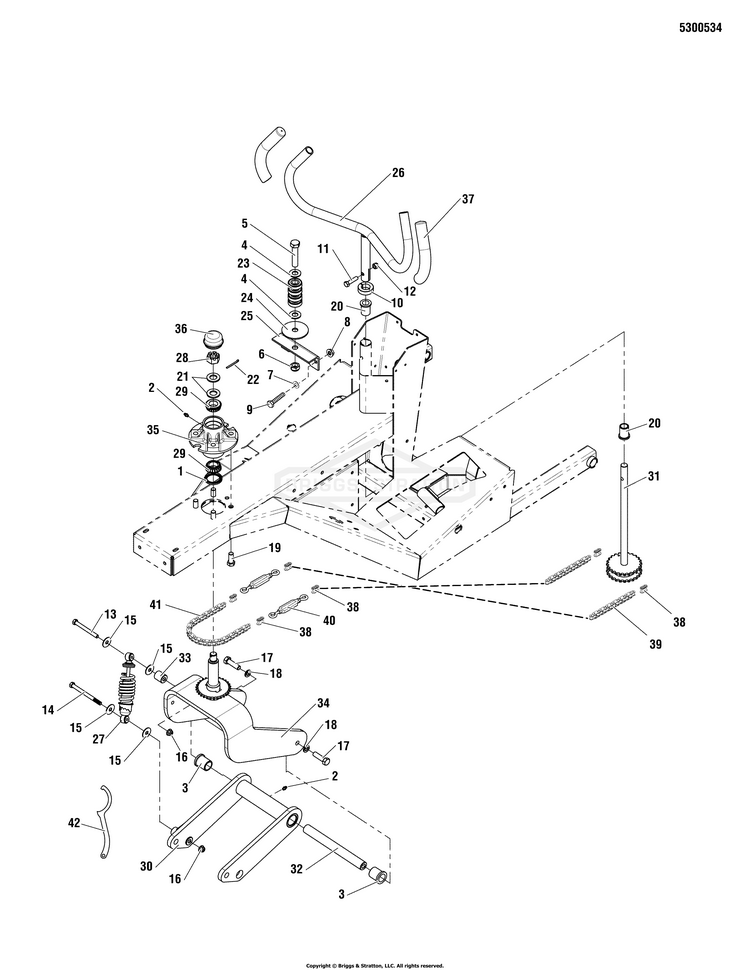

Steering & Suspension Group

...
...
1
SEAL BS-5100838FS
...
2
GREASE FITTING, 1/4-2 BS-5020095SM
...
3
BUSHING, FLANGE BS-5021541SM
...
4
WASHER, 5/8" SAE BS-5025281SM
...
5
BOLT, 5/8-11 x 3" GD5 CZ BS-5025019X24
...
6
NUT BS-5025282FS
...
7
WASHER BS-703350
...
8
NUT BS-703115
...
9
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
10
COLLAR, 1" SPLIT BS-5020602SM
...
11
CAPSCREW,3/8-16X1.5 BS-703406
...
12
NUT, 3/8-16 HEX NYLON BS-5025096SM
...
13
BOLT, 3/8-16 X 3-1/2" BS-5025013X28SM
...
14
BOLT, 3/8-16 X 4-1/2 BS-5025013X36YP
...
15
WASHER, 3/8" FENDER BS-5025165SM
...
16
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
17
BOLT BS-5025018X14FS
...
18
LOCKWASHER, 1/2 BS-5025331SM
...
19
BOLT, 1/2-20 X 1-1/4" GD8 CZ BS-5025018X10SM
...
20
BUSHING, FLANGE, 3/4 BS-5020823SM
...
21

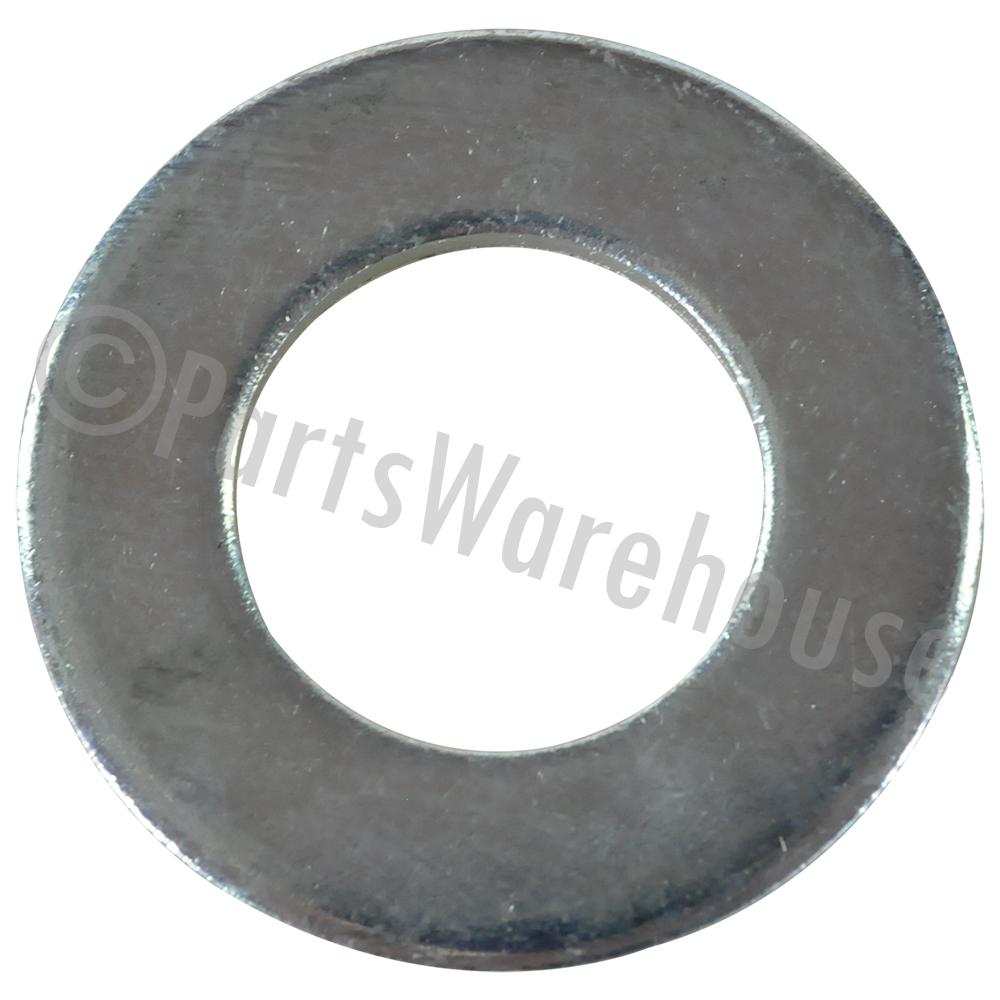

WASHER, 3/4" SAE BS-5025160SM
...
22
PIN, COTTER, 1/8" X 1 BS-5025203X10SM
...
23
BEARING BS-5021882FS
...
24
WASHER BS-5043652FS
...
25
MOUNT BS-5044627BFS
...
26
HANDLE BS-5402373BFS
...
27
ABSORBER, SHOCK BS-5023383FS
...
28
NUT BS-5025104FS
...
29
BEARING BS-5100839FS
...
30
ARM BS-5401698BFS
...
31
STEERING SHAFT WELDME BS-5042087SM
...
32
SHAFT BS-5100564FS
...
33
SPACER BS-5100563FS
...
34
MOUNT BS-5401696BFS
...
35
HUB BS-5100840FS
...
36
CAP, DUST BS-5021073SM
...
37
GRIP, FOAM 1" ID X 7. BS-5020837SM
...
38
CHAIN, LINK BS-5010674SM
...
39
CHAIN, ROLLER BS-5010673X33FS
...
40
TURNBUCKLE ASSY BS-5042090SM
...
41
CHAIN, ROLLER BS-5010673X43FS
...
42
SPANNER WRENCH BS-5022853SM
