Ferris 5900632 - 61" Side Discharge Mower Deck (R61) Wheel Riding Mower

Model: 5900632 - 61" Side Discharge Mower Deck (R61)

Save Part Not Listed?
product name

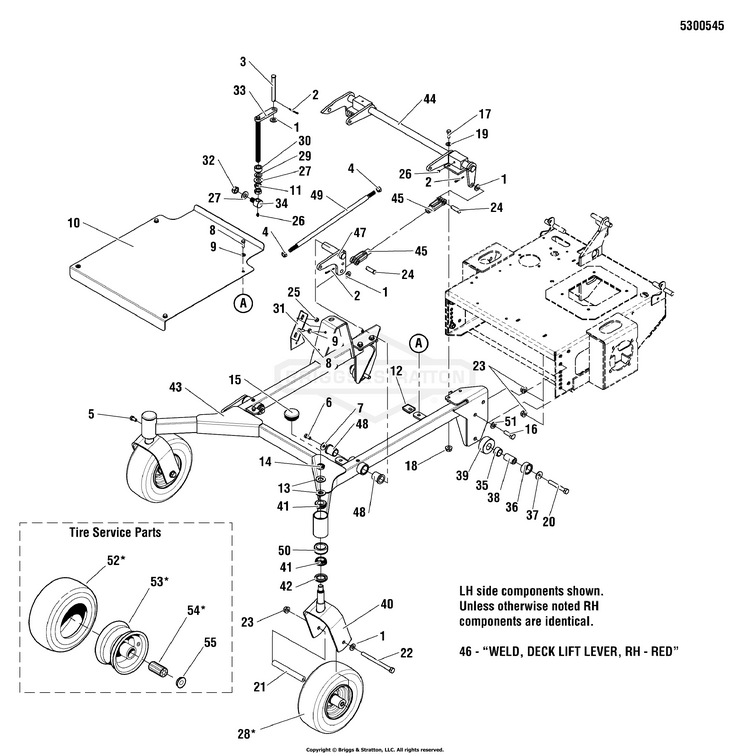

61" Mower Deck - Deck Lift

...
...
1
WASHER, 1/2" SAE BS-5025158SM
...
2
PIN - COTTER BS-5025203X6SM
...
3
PIN, CLEVIS BS-5025456FS
...
4
NUT, 1/2-20 HEX JAM BS-5025089SM
...
5
BOLT - 1/4-28 X 1/2 BS-5025457SM
...
6
BOLT - 3/8-16 X 3/4 BS-5025443SM
...
7
WASHER - .39X1.50 BS-5100548SM
...
8
BOLT BS-5025011X8FS
...
9
WASHER BS-703350
...
10
GUARD, CENTER BS-5402268BFS
...
11
NUT, 5/8-18 HEX JAM BS-5025454SM
...
12
CLIP BS-5025452YP
...

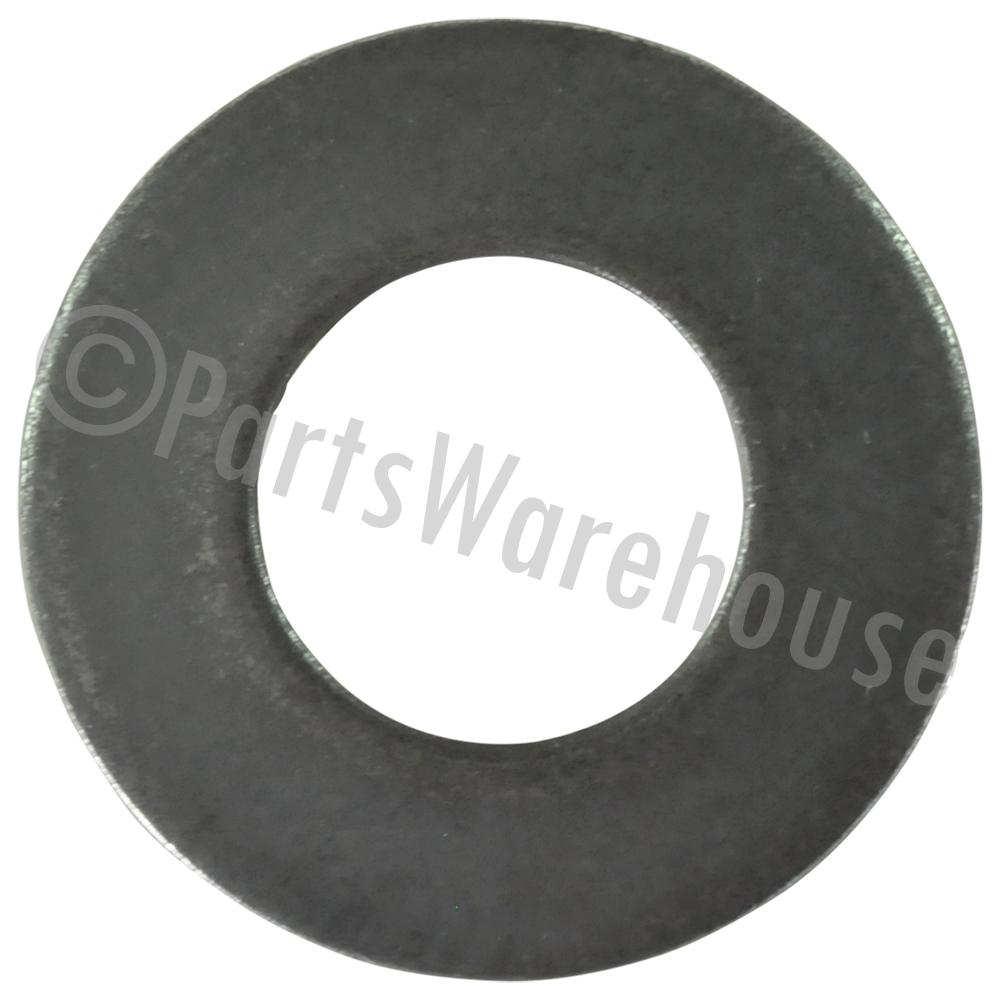

13
WASHER, BELLEVILLE BS-5025449SM
...
14
NUT - 3/4-16 HEX JAM BS-5025448SM
...
15
CAP BS-5109845FS
...
16
CAPSCREW, 1/2-13X1.5 BS-703571
...
17
BOLT, 3/8-16 X 1-1/4" BS-5025013X10SM
...
18
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
19
WASHER BS-5025156FS
...
20
BOLT, 1/2-13 X 3-1/2" BS-5025017X28SM
...
21
CASTER AXLE DDSH BS-5045996SM
...
22
BOLT, 1/2-13 X 7 GD5 BS-5025017X56YP
...
23
NUT BS-770225
...
24
CLEVIS PIN, 1/2 X 1.3 BS-5025479YP
...
25
NUT BS-703115
...
26
GREASE FITTING, 1/4-2 BS-5020095SM
...
27
WASHER, 5/8" SAE BS-5025281SM
...
28a
WHEEL, CASTER, 11X4.0 (S/N: 2013131013 & Above) BS-5101418YP
...
29
WASHER, THRUST BS-5100823FS
...
30
SPACER BS-5100836YP
...
31
PLATE BS-5402370BFS
...
32
NUT BS-5025282FS
...
33
HANDLE BS-5100825FS
...
34
PIVOT, DECK LIFT BS-5100803YP
...
35
BUSHING BS-5100809FS
...
36
ROLLER BS-5100826FS
...
37
WASHER, 1/2" USS BS-5025150SM
...
38
SPACER BS-5100689FS
...
39
GUIDE BS-5100646FS
...
40
YOKE, CASTER BS-5401759BFS
...
41
BEARING, TAPERED ROLL BS-5020884SM
...

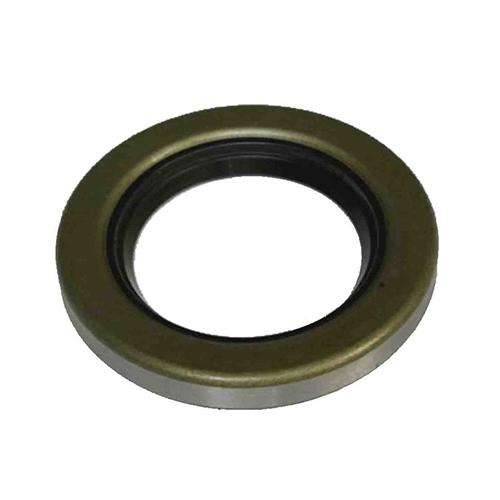

42
SEAL, GREASE BS-5021072SM
...
43
MOUNT, DECK BS-5401755BFS
...
44
SHAFT BS-5401754BFS
...
45
CLEVIS, 1/2-20, STEEL BS-5023174SM
...
46
LEVER, Lift BS-5402278BFS
...
47
LIFT, DECK BS-5402277BFS
...
48
BUSHING, FLANGE BS-5021541SM
...
49
ROD, DECK LIFT, 19.25 BS-5103758YP
...
50
BEARING CUP BS-5020883SM
...
51
WASHER, 1/2" YELLOW BS-5025440SM
...
52
TIRE, Caster, 11 X 4.0 - 5 (SV) BS-5022433X1SM
...
53a
WHEEL FOR 11X4.0-5 TI (SV 5101418 Tire) BS-5101418X2YP
...
53b
WHEEL FOR 11X4.0-5 TI (SV 5022433 Tire) BS-5101418X2YP
...
54a
BEARING, CASTER WHEEL, 11 X 4.0 - 5 BEAD LOCK (SV) (SV 5101418 Tire) BS-5101418X1YP
...
54b
BEARING, Roller (2 per tire) (SV 5022433 Tire) BS-5021042SM
...
55
RETAINER, Bearing BS-5021043SM

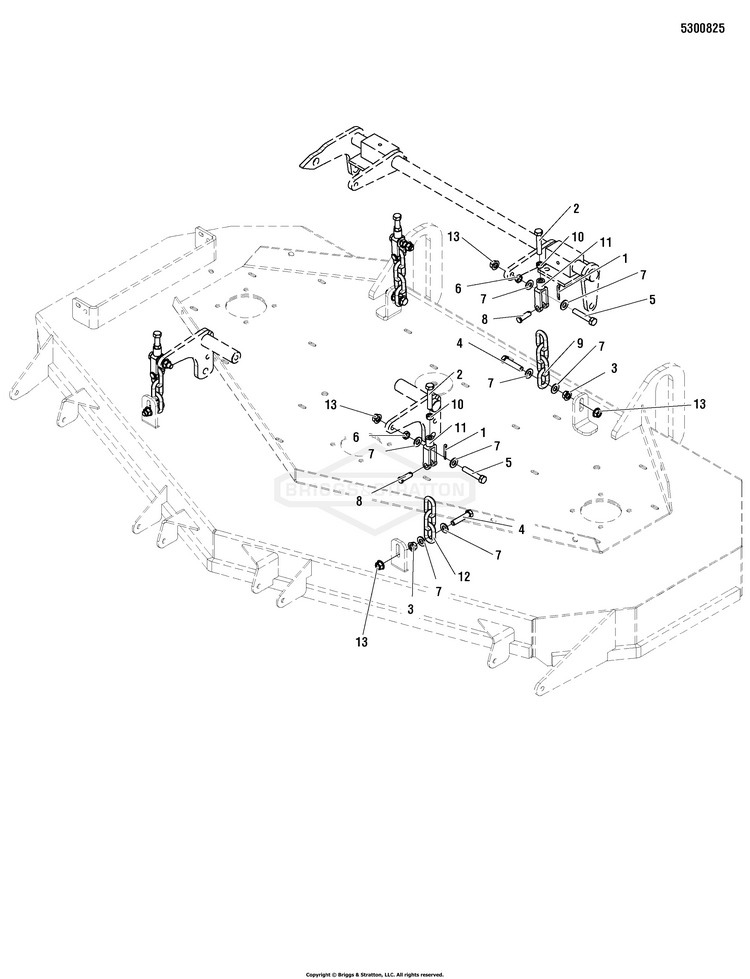

61" Mower Deck - Hanger Chains

...
...
1
PIN - COTTER BS-5025203X6SM
...
2
BOLT, 5/16-18X2 BS-5025055X16SM
...
3
NUT, 3/8-16 HEX SERRA BS-5025128SM
...
4
BOLT, 3/8-16 X 1-3/4" BS-5025013X14SM
...
5
CAPSCREW, 3/8-16X2 BS-703589
...
6
NUT, 3/8-16 HEX JAM BS-5025084SM
...
7
WASHER BS-5025156FS
...
8
PIN - CLEVIS BS-5025214X9SM
...
9
CHAIN, 5/16", 4 LINKS BS-5050878X4YP
...
10
NUT, 5/16-18 HEX BS-5025032SM
...
11
CLEVIS, 5/16-18, 3/8 BS-5100375YP
...
12
CHAIN, 5/16" GD30, 3 BS-5050878X3SM
...
13
NUT, 3/8-16 HEX NYLOCK BS-5025394SM

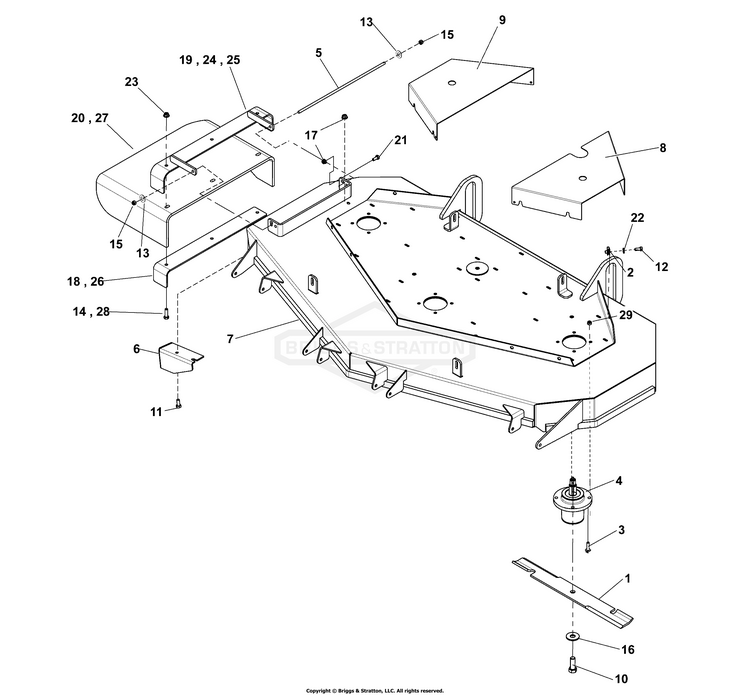

61" Mower Deck - Housing, Covers, Spindles and Blades

...
...
1
BLADE SET, 61 DECK (3) (S/N: 2015251379 & Above)(SV)(Set of 3 blades) BS-5101755S
...
1
BLADE SET, 61 DECK (SET OF 3 BLADES) (S/N: 2015251378 & Below)(SV)(Set of 3 blades) BS-5020842S
...
2
BODY CLIP, 5/16-18 X BS-5022308SM
...
3
BOLT BS-5025390X10FS
...
4
ASSM, SPINDLE, LOW PR (Nut and Washer Sold Seperately) BS-5061095SM
...
5
MOUNT, Chute BS-5061300SM
...
6
DEFLECTOR BS-84003247
...
7
MOWER DECK (Includes safety decals.) BS-84008911
...
8
GUARD, Pulley BS-5402266BFS
...
9
GUARD, PULLEY BS-5402267BFS
...
10
BOLT (Torque blade mounting bolt to 120 ft-lbs) BS-5025320X14FS
...
11
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
12
BOLT BS-5025011X8FS
...
13
WASHER, 5/16" GD.9 FL BS-5025292SM
...
14
CAPSCREW,3/8-16X1.5 (S/N: 2017100600 & Below) BS-703406
...
15
NUT, 5/16-24 HEX NYLO BS-5025045SM
...
16
WASHER, 5/8" YZ BS-5025477SM
...
17
NUT BS-703115
...
18
SUPPORT, DISCHARGE BS-5402360AYP
...
19
FRAME, CHUTE (S/N: 2016739652 & Below) BS-84010571
...
20
CHUTE, DISCHARGE, RUBBER, 61/72" (S/N: 2017100600 & Below) BS-5402403SM
...
21
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
22
WASHER BS-703350
...
23
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
24
FRAME, CHUTE (S/N: 2016739652 - 2017100600) BS-84010572
...
25
KIT-MOUNTING PLATE, CHUTE ROTATION (S/N: 2017100601 & Above) BS-5413400AYP
...
26
SUPPORT (S/N: 2017100601 & Above) BS-5413398AYP
...
27
CHUTE, RUBBER DISCHARGE (5104442) (S/N: 2017100601 & Above) BS-84011105
...
28
BOLT, 3/8-16 X 1-1/2 (S/N: 2017100601 & Above) BS-5025146X12YP
...
29
NUT, 3/8-16 HEX NYLOCK BS-5025394SM

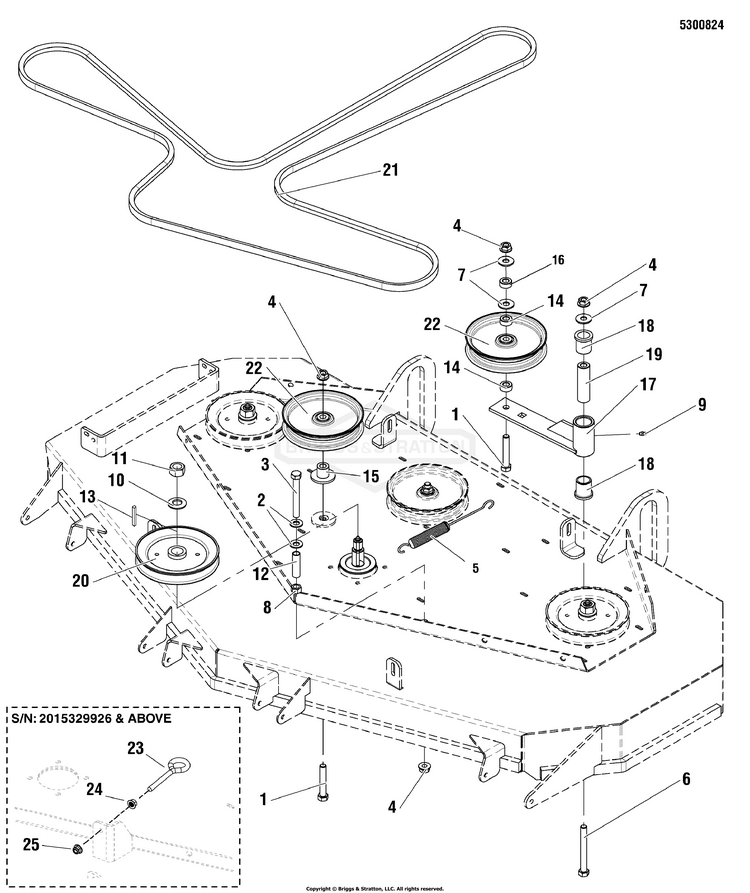

61" Mower Deck - Pulleys, Belt and Idler Arm

...
...
1
BOLT, 1/2-13 BS-5025017X26SM
...
2
WASHER, 1/2" SAE (S/N: 2015329925 & Below) BS-5025158SM
...
3
BOLT, 1/2-13 X 4 GD5 (S/N: 2015329925 & Below) BS-5025017X32YP
...
4
NUT (S/N: 2015329925 & Below) BS-770225
...
5
SPRING, EXTENSION BS-5100632YP
...
6
BOLT, 1/2-13 X 4-1/2" BS-5025017X36SM
...
7
WASHER, 1/2" USS BS-5025150SM
...
8
NUT, 1/2-13 HEX (S/N: 2015329925 & Below) BS-5025308
...
9
GREASE FITTING, 1/4-2 BS-5020095SM
...
10
WASHER, Belleville, 3/4 BS-770223
...
11
NUT, 3/4-16 HEX BS-5025405SM
...
12
HOSE (S/N: 2015329925 & Below) BS-5050857X2P25FS
...
13
KEY, 1/4 SQ X 1-1/4 BS-5050407X10YP
...
14
SPACER BS-5101162YP
...
15
IDLER MNT BS-5103430YP
...
16
SPACER .515X1.00X.218 BS-5100520SM
...
17
ARM, IDLER (Includes Bushings & grease fittings.) BS-5407343FS
...
18
BUSHING, FLANGE BS-5021541SM
...
19
SPACER, .52 X 1.00 X BS-5045022SM
...
20
PULLEY, 6.5 EOD X 25M BS-5100700SM
...
21
BELT, DRIVE BS-84003642
...
23
EYE BOLT, 3/8-16 X 5" (S/N: 2015329926 & Above) BS-5023497SM
...
24
NUT, 3/8-16 HEX SERRA (S/N: 2015329926 & Above) BS-5025128SM
...
25
NUT, 3/8-16 HEX NYLOCK (S/N: 2015329926 & Above) BS-5025394SM

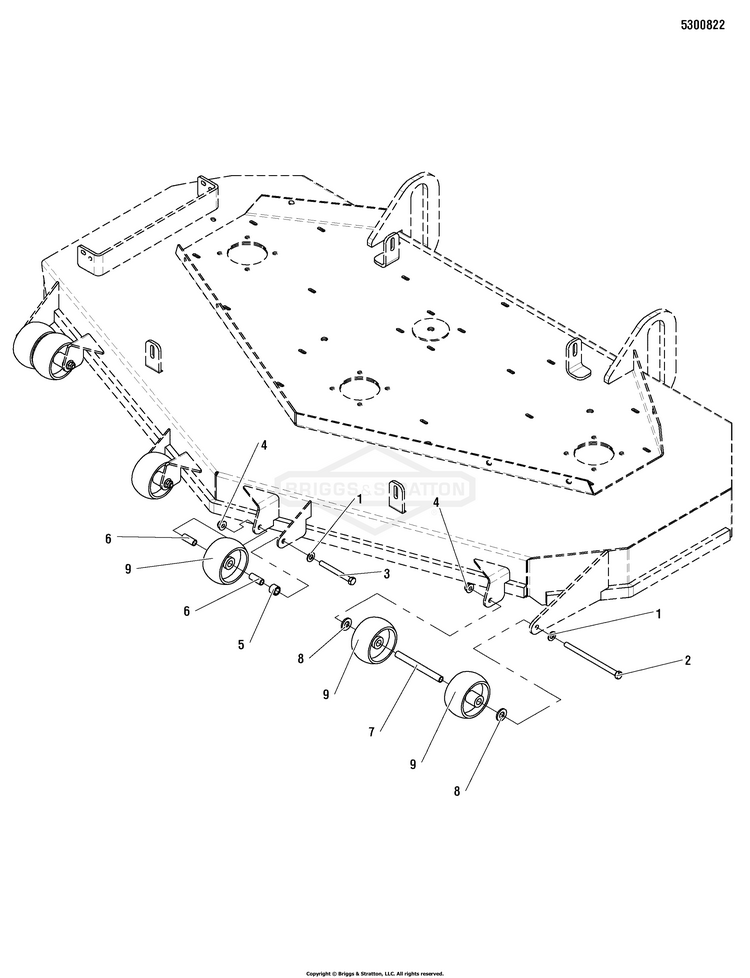

61" Mower Deck - Rollers

...
...
1
WASHER BS-5025156FS
...
2
BOLT, 3/8-16 X 6" GD5 BS-5025013X48SM
...
3
BOLT, 3/8-16 X 3-1/2" BS-5025013X28SM
...
4
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
5
SPACER, .51 X .75 X . BS-5047027SM
...
6
SPACER, .38 X .50 X 1 BS-5041931SM
...
7
SPACER, .38 X .50 X 5 BS-5046586SM
...
8
WASHER, 1/2" YELLOW BS-5025440SM
...
9
GAUGE WHEEL BS-1714760SM

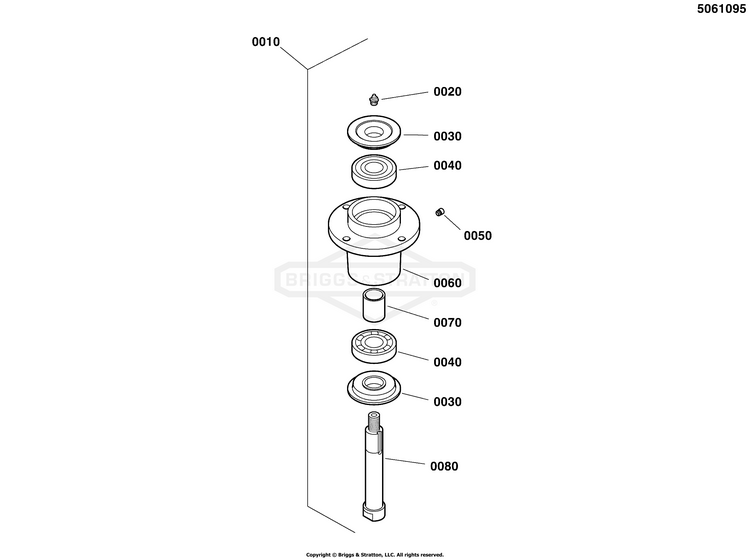

Spindle SERVICE PARTS - 5061095

...
...
0010
ASSM, SPINDLE, LOW PR (Nut and Washer Sold Seperately) (Includes items #0020 - 0080) BS-5061095SM
...
0020
FITTING BS-5023329SM
...
0030
SHIELD, TRASH BS-5049793SM
...
0040
BEARING, .98 X 2.44 X BS-5023330SM
...
0050
FITTING, RELIEF, 1-5 BS-5023296SM
...
0060
SUB ASM, SPINDLE, LON (Includes items #0040 - Qty (2) & #0070 - Qty (1)) BS-5102993YP
...
0070
SPACER BS-5061099SM
...
0080
SHAFT, SPINDLE BS-5061098SM
