Ferris 5900534 - Procut S Series (H2228B) Wheel Riding Mower

Model: 5900534 - Procut S Series (H2228B)

Back To Assemblies

Save Part Not Listed?
product name

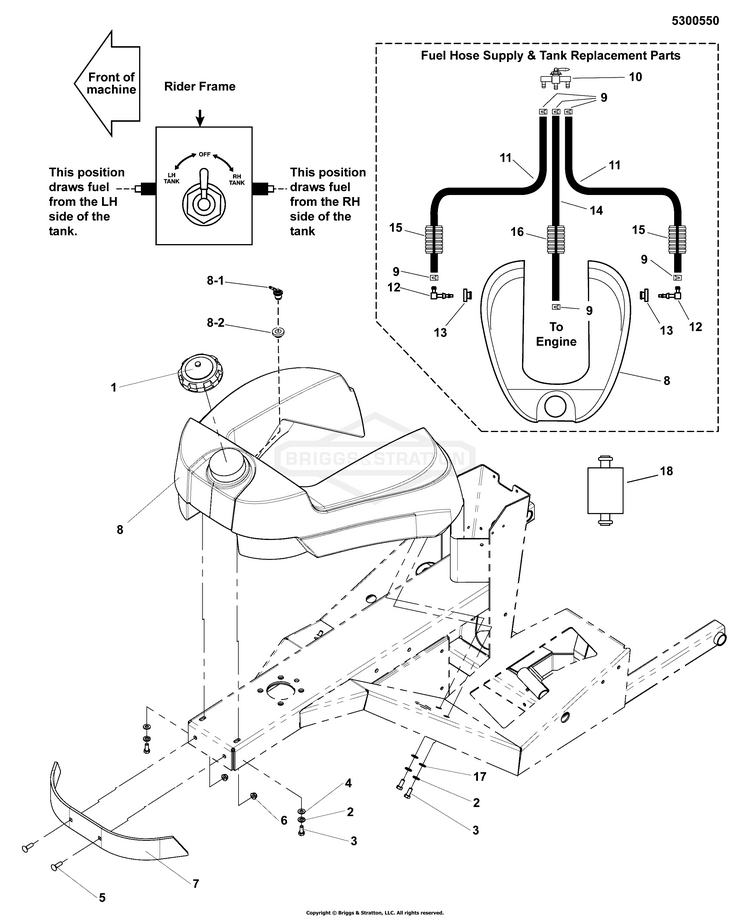

Fuel Tank & Mount Group

...
...
1
CAP, FUEL, VENTED (S/N: 2014754381 & Below) BS-5101651SM
...
1
CAP, FUEL TANK (S/N: 2014754382 & Above) BS-84005958
...
2
WASHER, 5/16" LOCK BS-5025170SM
...
3
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
4
WASHER BS-703350
...
5
BOLT, 5/16-18 X 1", C BS-5025145X8SM
...
6
NUT BS-703115
...
7
BUMPER BS-5402393BFS
...
8
TANK, FUEL (S/N: 2014754381 & Below)(Includes items #8-1 and #8-2) BS-5103179FS
...
8
TANK, FUEL (S/N: 2014754382 & Above)(Includes items #8-1 and #8-2) BS-5103179FS
...
8-1
ASSY., REMOTE VENT - NO VALVE BS-80019626
...
8-2
GROMMET BS-799624
...
9
CLAMP, Hose BS-691038
...
10

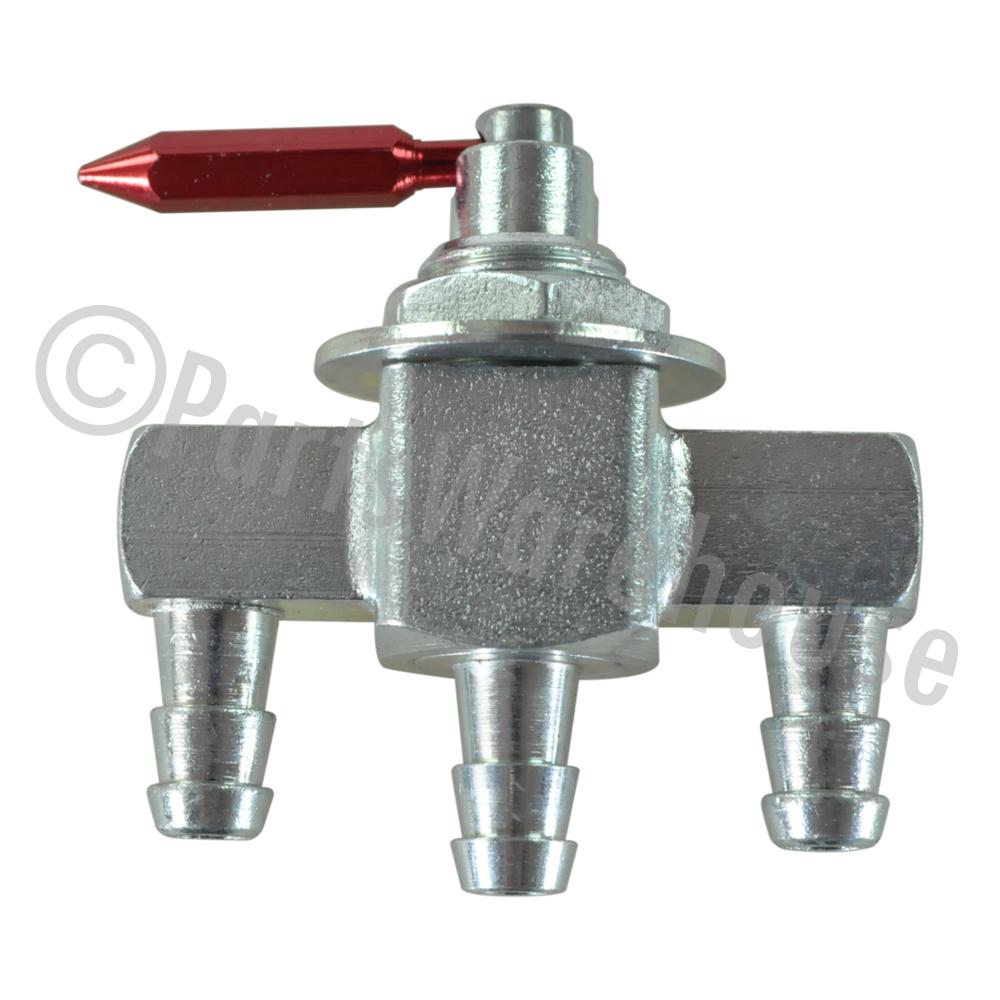

VALVE, FUEL, STR. OUT BS-5023358SM
...
11
HOSE, FUEL, 1/4 IN, LW PRMTN X 42 BS-5050831X42
...
12
ELBOW FITTING BS-5023061SM
...
13

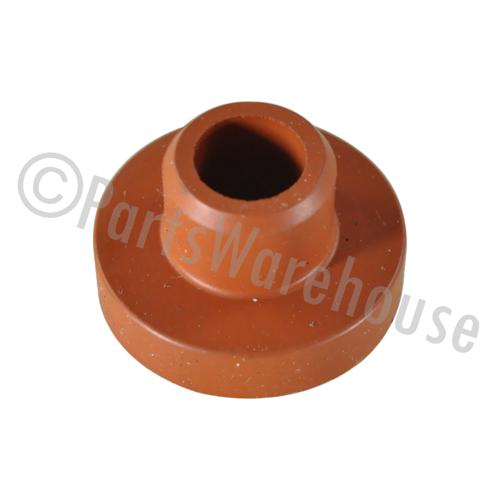

BUSHING BS-1726400FS
...
14
HOSE, Fuel (Kawasaki FH Series Models) BS-5050831X21FS
...
14
HOSE, 1/4" FUEL, 28.00" (Briggs & Stratton & Kohler Models) BS-5050831X28SM
...
14
HOSE, FUEL (Kawasaki FS Series Models) BS-5050831X13FS
...
15
WIRE LOOM, 1/2" ID, 39" BS-5050833X39
...
16
WIRE, LOOM (Kawasaki FH Series Models) BS-84010814
...
16
WIRE LOOM, 1/2 ID, 28" (Briggs & Stratton & Kohler Models) BS-5050833X28
...
16
WIRE LOOM, OIL DRAIN (Kawasaki FS Series Models) BS-5050833X6YP
...
17
WASHER BS-5025337FS
...
18
FILTER, FUEL BS-5021178X3FS
