product name

Ferris 5900234 - 61" Mower Deck (S/N: 7671 & Above) (R61) Wheel Riding Mower

Model: 5900234-61"MowerDeck(S/N:7671&Above)(R61)

Save Part Not Listed?
product name

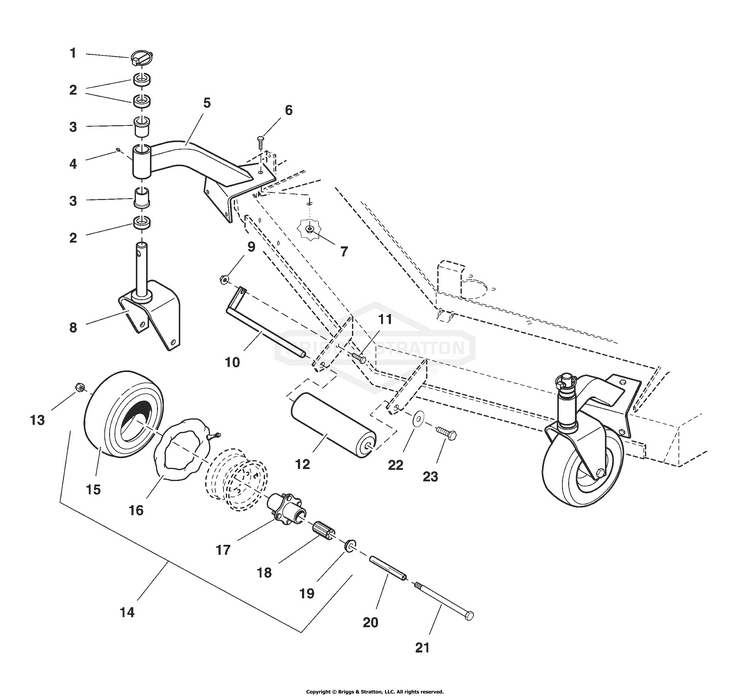

52" & 61" Mower Deck - Rollers & Casters

...
...
1
PIN, LYNCH, 7/16 BS-5020655SM
...
2
SPACER, 1.02 X 1.56 X BS-5041476SM
...
3
BUSHING, FLANGE BS-5021541SM
...
4
GREASE FITTING, 1/4-2 BS-5020095SM
...
5
MOUNT (Includes Ref No. 3 & 4) BS-5043887FS
...
6
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
7
NUT, 5/16-18 HEX SERR BS-5025139SM
...
8
BRACKET, MOUNTING BS-84010489
...
9
NUT, 3/8-16 HEX SERRA BS-5025128SM
...
10
WELD, BRACKET, ROLLER SECURED W/ 5025013X8 & 5101414 BS-5041655AYP
...
11
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
12
ROLLER, DECK BS-5020785SM
...
13
NUT BS-5025056FS
...
14
TIRE ASSM, 9 X 3.5 X (Includes Ref No. 15 - 19) BS-5021181SSM
...
15
TIRE, Front, 9 x 3.5 x 4 BS-5021181X1SM
...
16
TUBE, for 9 x 3.5 x 4 Tire BS-5021181X2SM
...
17
HUB, 4 Bolt, Silver (Includes Ref No. 18 & 19) BS-5021181SX3SM
...
18
BEARING, Roller (1 per tire) (1 per tire) BS-5021182SM
...
19
RETAINER, Bearing (2 per tire) BS-5021043SM
...
20
AXLE, CASTER WHEEL BS-5041657SM
...
21
BOLT, 1/2-13 X 5-1/2" BS-5025017X44SM
...
22
WASHER - .39X1.50 BS-5100548SM
...
23
BOLT, 3/8-16 X 1" GD5 BS-5025013X8SM

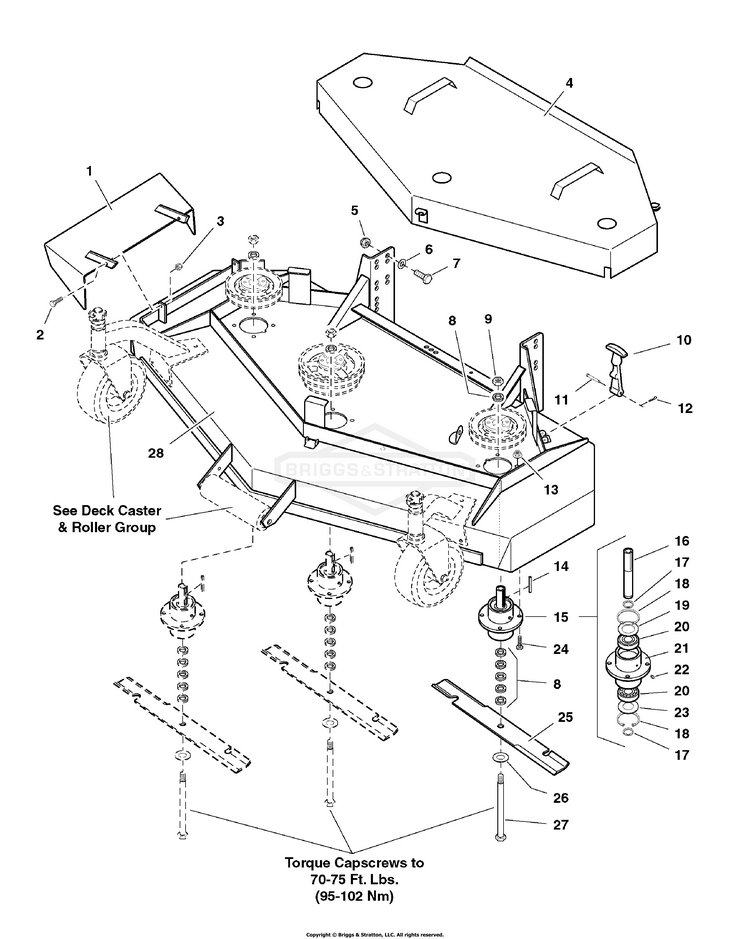

61" Mower Deck - Housing, Covers, Spindles & Blades - Side Discharge

...
...
1
CHUTE, DISCHARGE BS-84009144
...
2
BOLT BS-5025011X8FS
...
3
NUT BS-5025057FS
...
4
61" SPINDLE COVER BS-5030822B
...
5
NUT, 1/2-20 HEX NYLON BS-5025098SM
...
6
WASHER, 1/2" SAE BS-5025158SM
...
7
BOLT, 1/2-20 X 1-1/4" GD8 CZ BS-5025018X10SM
...
8
SPACER, .63 X 1.06 X BS-5041477SM
...
9
NUT, 5/8-11 HEX BS-5025040SM
...
10
LATCH, RUBBER BS-5020841X1SM
...
11
PIN, CLEVIS BS-5020841X4FS
...
12
PIN, COTTER BS-5020841X5FS
...
13
NUT, 5/16-18 HEX SERR BS-5025139SM
...
14
KEY, 1/4" SQ X 2.50 BS-5050407X20SM
...
15
ASSM, SPINDLE, THRU B BS-5061033SM
...
16
SPINDLE SHAFT BS-5041480SM
...
17
SNAP RING, External BS-5020864SM
...
18
SNAP RING, INTERNAL BS-5020866SM
...
19
SPINDLE WASHER, Top BS-5041653SM
...
20
BEARING BS-5020828SM
...
21
SPINDLE HOUSING BS-5030293
...
22
GREASE FITTING, 1/4-2 BS-5020095SM
...
23
SPINDLE WASHER, Bottom BS-5041672SM
...
24
BOLT, 5/16-18 X 1-1/4 BS-5025055X10YP
...
25
BLADE-21 BLACK BS-5020842ASM
...
26
WASHER, 5/8" YZ BS-5025477SM
...
27
BOLT, 5/8-11 X 9-1/2" BS-5025019X76SM
...
28
DECK SHELL W/DECALS, 61" (Includes safety decals) BS-5630820

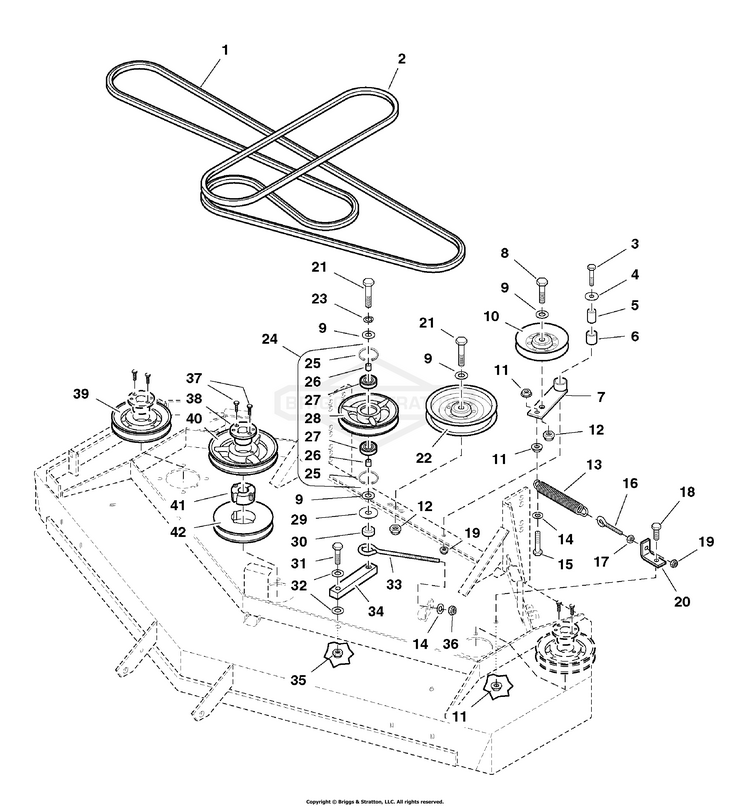

61" Mower Deck - Pulleys, Belt & Idler Arm

...
...
1
BELT, Spindle Drive 131.75 EL BS-5020824SM
...
2
BELT, Deck Drive BS-5021063SM
...
3
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
4
WASHER, 5/16" FENDER BS-5025164SM
...
5
SPACER, .32 X .75 X 1 BS-5042134SM
...
6
BUSHING, BRASS, 3/4 X BS-5020876BSM
...
7
PULLEY ASSEMBLY BS-84008914
...
8
BOLT, 1/2-20 x 2 BS-5025018X16
...
9
WASHER, 1/2" SAE BS-5025158SM
...
10
PULLEY, IDLER, V-NOTC BS-5021097SM
...
11
NUT, 3/8-16 HEX SERRA BS-5025128SM
...
12
NUT, 1/2-20 HEX NYLON BS-5025098SM
...
13
SPRING, EXTENSION BS-5021103SM
...
14
WASHER BS-5025156FS
...
15
CAPSCREW, 3/8-16X2 BS-703589
...
16
EYE BOLT, 5/16-18 X 3 BS-5025141X26YP
...
17
NUT, 5/16-18 HEX BS-5025032SM
...
18
BOLT, 3/8-16 X 1" GD5 BS-5025013X8SM
...
19
NUT BS-5025057FS
...
20
ANCHOR, SPRING BS-5042142BFS
...
21
BOLT, 1/2-20 X 2-1/4" BS-5025018X18SM
...
22
PULLEY, IDLER, FLAT BS-5021096SM
...
23
LOCKWASHER, 1/2 BS-5025331SM
...
24
IDLER PULLEY, Complete (includes Ref 25-28) BS-5030819SM
...
25
RING, SNAP BS-5020865FS
...
26
INSERT, BEARING BS-5020870SM
...
27
BEARING, BALL 11/16X1 BS-1705897SM
...
28
PULLEY, IDLER BS-5041481FS
...
29
WASHER, 1/2" USS BS-5025150SM
...
30
SPACER, .52 X 1.00 X BS-5044609SM
...
31
BOLT BS-5025016X14YP
...
32
WASHER, 7/16 ID X.065 BS-703183
...
33
EYE BOLT, 3/8-16 X 8" BS-5021811SM
...
34
ARM, Idler BS-5044610B
...
35
NUT BS-5025094YP
...
36
NUT, 3/8-16 HEX NYLON BS-5025096SM
...
37
BOLT, 1/4-20 X 1", GD BS-5025010X8SM
...
38
BUSHING, Tapered Hub (Includes bolts) BS-5020819SM
...
39
PULLEY, Spindle BS-5020814SM
...
40
PULLEY, SPINDLE, BH66 BS-5020815SM
...
41
BUSHING, Taper Lock BS-5022160SM
...
42
PULLEY, Taper Lock BS-5022159SM
