Ferris 5900234 - 61" Mower Deck (S/N: 7541 - 7670) (R61) Wheel Riding Mower

Model: 5900234-61"MowerDeck(S/N:7541-7670)(R61)

Save Part Not Listed?
product name

61" Mower Deck - Complete

...
...
1
61" MOWER HOUSING ASSEMBLY (Includes safety decals) BS-5630820
...
2
61" SPINDLE COVER BS-5030822B
...
3
CHUTE, DISCHARGE BS-84009144
...
4
ASSM, SPINDLE, THRU B BS-5061033SM
...
5
SPINDLE SHAFT BS-5041480SM
...
6
SNAP RING, External BS-5020864SM
...
7
SNAP RING, INTERNAL BS-5020866SM
...
8
SPINDLE WASHER, Top BS-5041653SM
...
9
BEARING BS-5020828SM
...
10
SPINDLE HOUSING BS-5030293
...
11
GREASE FITTING, 1/4-2 BS-5020095SM
...
12
SPINDLE WASHER, Bottom BS-5041672SM
...
13
SPACER, .63 X 1.06 X BS-5041477SM
...
14
BLADE-21 BLACK BS-5020842ASM
...
15
PULLEY, Spindle BS-5020814SM
...
16
BUSHING, Tapered Hub (Includes bolts) BS-5020819SM
...
17
PULLEY, Taper Lock BS-5022159SM
...
18
BUSHING, Taper Lock BS-5022160SM
...
19
PULLEY, SPINDLE, BH66 BS-5020815SM
...
20
PULLEY, IDLER, FLAT BS-5021096SM
...
21
PULLEY ASSEMBLY BS-84008914
...
-
BUSHING, BRASS, 3/4 X BS-5020876BSM
...
22
SPACER, .32 X .75 X 1 BS-5042134SM
...
23
PULLEY, IDLER, V-NOTC BS-5021097SM
...
24
SPRING, EXTENSION BS-5021103SM
...
25
EYE BOLT, 5/16-18 X 3 BS-5025141X26YP
...
26
ANCHOR, SPRING BS-5042142BFS
...
27
IDLER PULLEY, Complete (includes Ref 25-28) BS-5030819SM
...
-
PULLEY, IDLER BS-5041481FS
...
-
BEARING, BALL 11/16X1 BS-1705897SM
...
-
INSERT, BEARING BS-5020870SM
...
-
RING, SNAP BS-5020865FS
...
28
SPACER, .52 X 1.00 X BS-5044609SM
...
29
EYE BOLT, 3/8-16 X 8" BS-5021811SM
...
30
MOUNT BS-5043887FS
...
-
BUSHING, FLANGE BS-5021541SM
...
-
FITTING BS-5021728FS
...
31
SPACER, 1.02 X 1.56 X BS-5041476SM
...
32
PIN, LYNCH, 7/16 BS-5020655SM
...
33
BRACKET, MOUNTING BS-84010489
...
34
TIRE ASSM, 9 X 3.5 X BS-5021181SSM
...
35
AXLE, CASTER WHEEL BS-5041657SM
...
36
WELD, BRACKET, ROLLER SECURED W/ 5025013X8 & 5101414 BS-5041655AYP
...
37
ROLLER, DECK BS-5020785SM
...
38
BELT, Spindle Drive 131.75 EL BS-5020824SM
...
39
BELT, Deck Drive BS-5021063SM
...
40
LATCH, RUBBER BS-5020841X1SM
...
41
KEY, 1/4" SQ X 2.50 BS-5050407X20SM
...
42
ARM, Idler BS-5044610B
...
43
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
44
BOLT BS-5025011X8FS
...
45
BOLT, 5/16-18 X 1-1/4 BS-5025055X10YP
...
46
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
47
WASHER, 5/16" FENDER BS-5025164SM
...
48
NUT BS-5025057FS
...
49
NUT, 5/16-18 HEX SERR BS-5025139SM
...
50
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
51
BOLT, 3/8-16 X 1" GD5 BS-5025013X8SM
...
52
CAPSCREW, 3/8-16X2 BS-703589
...
53
WASHER BS-5025156FS
...
54
NUT, 3/8-16 HEX NYLON BS-5025096SM
...
55
NUT, 3/8-16 HEX SERRA BS-5025128SM
...
56
BOLT BS-5025016X14YP
...
57
WASHER, 7/16 ID X.065 BS-703183
...
58
NUT BS-5025094YP
...
59
BOLT, 1/2-13 X 5-1/2" BS-5025017X44SM
...
60
BOLT, 1/2-20 x 2 BS-5025018X16
...
61
BOLT, 1/2-20 X 2-1/4" BS-5025018X18SM
...
62
WASHER, 1/2" SAE BS-5025158SM
...
63
WASHER, 1/2" USS BS-5025150SM
...
64
LOCKWASHER, 1/2 BS-5025331SM
...
65
NUT BS-5025056FS
...
66
NUT, 1/2-20 HEX NYLON BS-5025098SM
...
67
BOLT, 5/8-11 X 9-1/2" BS-5025019X76SM
...
68
WASHER, 5/8" YZ BS-5025477SM
...
69
NUT, 5/8-11 HEX BS-5025040SM

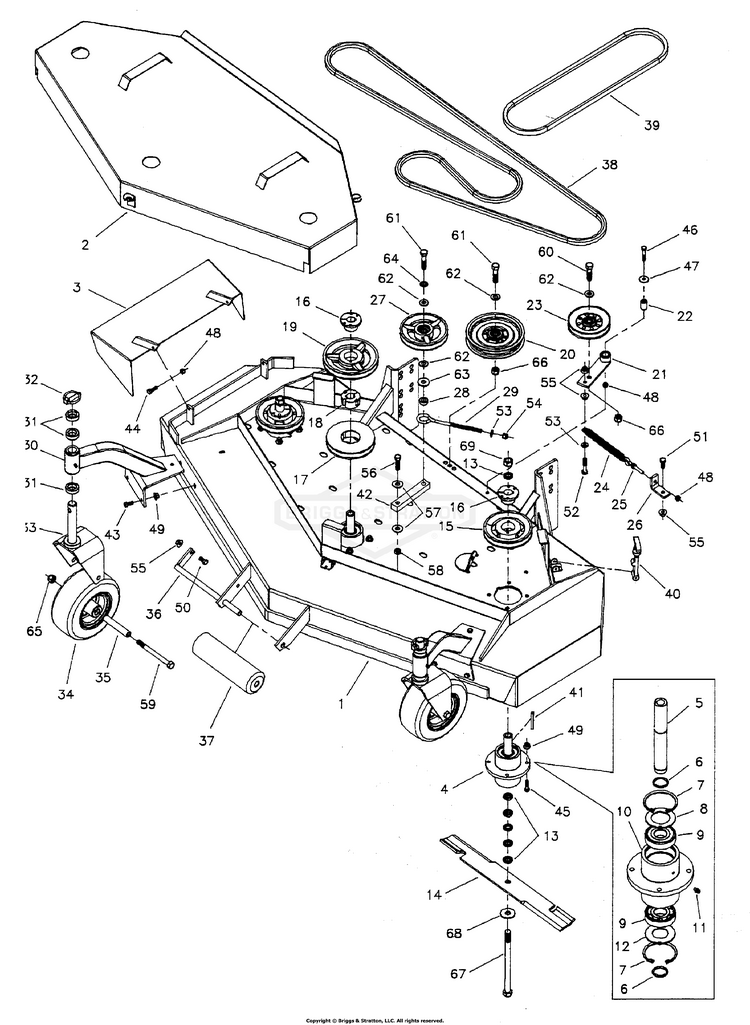

Schematic Image Zoomed
