Ferris 5900232 - 52" Mower Deck (S/N: 7541 - 7670) (R52) Wheel Riding Mower

Model: 5900232-52"MowerDeck(S/N:7541-7670)(R52)

Save Part Not Listed?
product name

52" Mower Deck - Complete

...
...
1
DECK SHELL W/ DECALS, 52" - R52 (Includes safety decals) BS-5600247
...
2
52" GUARD BS-5030845B
...
3
CHUTE, DISCHARGE BS-84009144
...
4
ASSM, SPINDLE, THRU B BS-5061033SM
...
5
SPINDLE SHAFT BS-5041480SM
...
6
SNAP RING, External BS-5020864SM
...
7
SNAP RING, INTERNAL BS-5020866SM
...
8
SPINDLE WASHER, Top BS-5041653SM
...
9
BEARING BS-5020828SM
...
10
SPINDLE HOUSING BS-5030293
...
11
GREASE FITTING, 1/4-2 BS-5020095SM
...
12
SPINDLE WASHER, Bottom BS-5041672SM
...
13
SPACER, .63 X 1.06 X BS-5041477SM
...
14
MOWER BLADE (52" Deck) BS-5021227ASM
...
15
PULLEY, Spindle BS-5020814SM
...
16
BUSHING, Tapered Hub (Includes bolts) BS-5020819SM
...
17
PULLEY, Taper Lock BS-5022159SM
...
18
BUSHING, Taper Lock BS-5022160SM
...
19
PULLEY, IDLER, FLAT BS-5021096SM
...
20
PULLEY, IDLER, V-NOTC BS-5021097SM
...
21
IDLER ARM, Complete BS-5042338B
...
21
BUSHING, BRASS, 3/4 X BS-5020876BSM
...
22
SPACER, .32 X .75 X 1 BS-5042134SM
...
23
SPRING, EXTENSION BS-5021103SM
...
24
EYE BOLT, 5/16-18 X 3 BS-5025141X26YP
...
25
EYE BOLT, 3/8-16 X 8" BS-5021811SM
...
26
ARM, Idler BS-5044610B
...
27
MOUNT BS-5043887FS
...
27
BUSHING, FLANGE BS-5021541SM
...
27
FITTING BS-5021728FS
...
28
SPACER, 1.02 X 1.56 X BS-5041476SM
...
29
BRACKET, MOUNTING BS-84010489
...
30
PIN, LYNCH, 7/16 BS-5020655SM
...
31
TIRE ASSM, 9 X 3.5 X BS-5021181SSM
...
32
AXLE, CASTER WHEEL BS-5041657SM
...
33
WELD, BRACKET, ROLLER SECURED W/ 5025013X8 & 5101414 BS-5041655AYP
...
34
ROLLER, DECK BS-5020785SM
...
35
KEY, 1/4" SQ X 2.50 BS-5050407X20SM
...
36
LATCH, RUBBER BS-5020841X1SM
...
37
BELT, BP-SEC, 118.782EL BS-5021297SM
...
38
BELT BS-84009028
...
39
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
40
BOLT BS-5025011X8FS
...
41
BOLT, 5/16-18 X 1-1/4 BS-5025055X10YP
...
42
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
43
WASHER, 5/16" FENDER BS-5025164SM
...
44
NUT BS-5025057FS
...
45
NUT, 5/16-18 HEX SERR BS-5025139SM
...
46
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
47
CAPSCREW, 3/8-16X2 BS-703589
...
48
WASHER BS-5025156FS
...
49
NUT, 3/8-16 HEX NYLON BS-5025096SM
...
50
NUT, 3/8-16 HEX SERRA BS-5025128SM
...
51
BOLT BS-5025016X14YP
...
52
WASHER, 7/16 ID X.065 BS-703183
...
53
NUT BS-5025094YP
...
54
BOLT, 1/2-20 x 2 BS-5025018X16
...
55
BOLT, 1/2-20 X 2-1/4" BS-5025018X18SM
...
56
BOLT, 1/2-13 X 5-1/2" BS-5025017X44SM
...
57
WASHER, 1/2" SAE BS-5025158SM
...
58
LOCKWASHER, 1/2 BS-5025331SM
...
59
NUT BS-5025056FS
...
60
NUT, 1/2-20 HEX NYLON BS-5025098SM
...
61
BOLT, 5/8-11 X 9-1/2" BS-5025019X76SM
...
62
WASHER, 5/8" YZ BS-5025477SM
...
63
NUT, 5/8-11 HEX BS-5025040SM

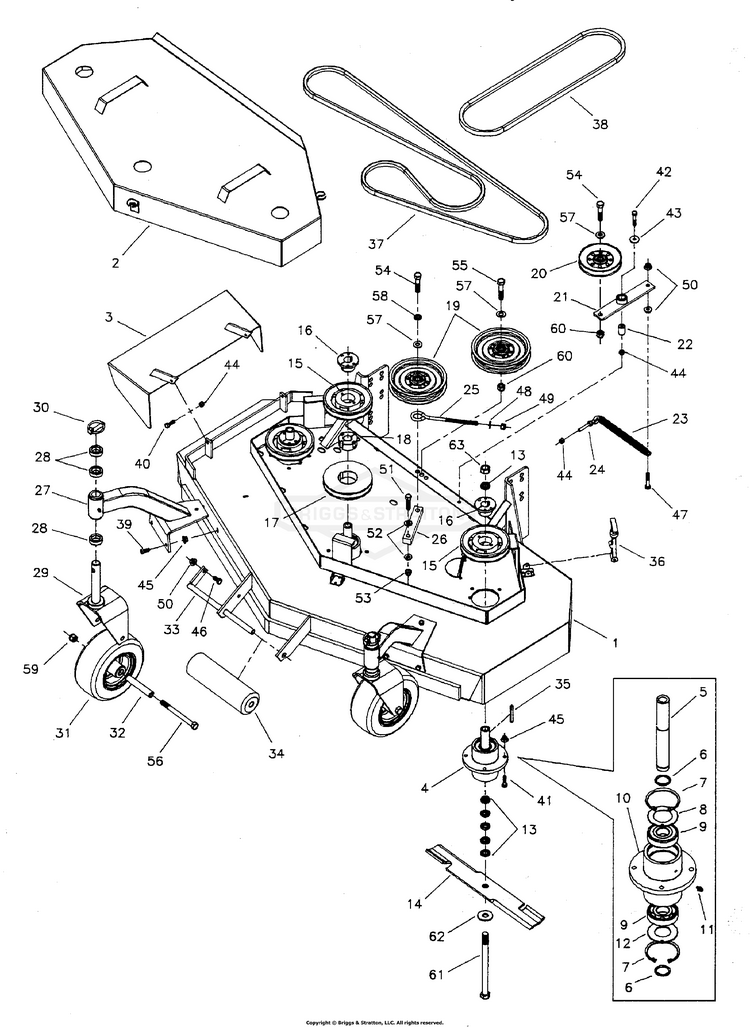

Schematic Image Zoomed
