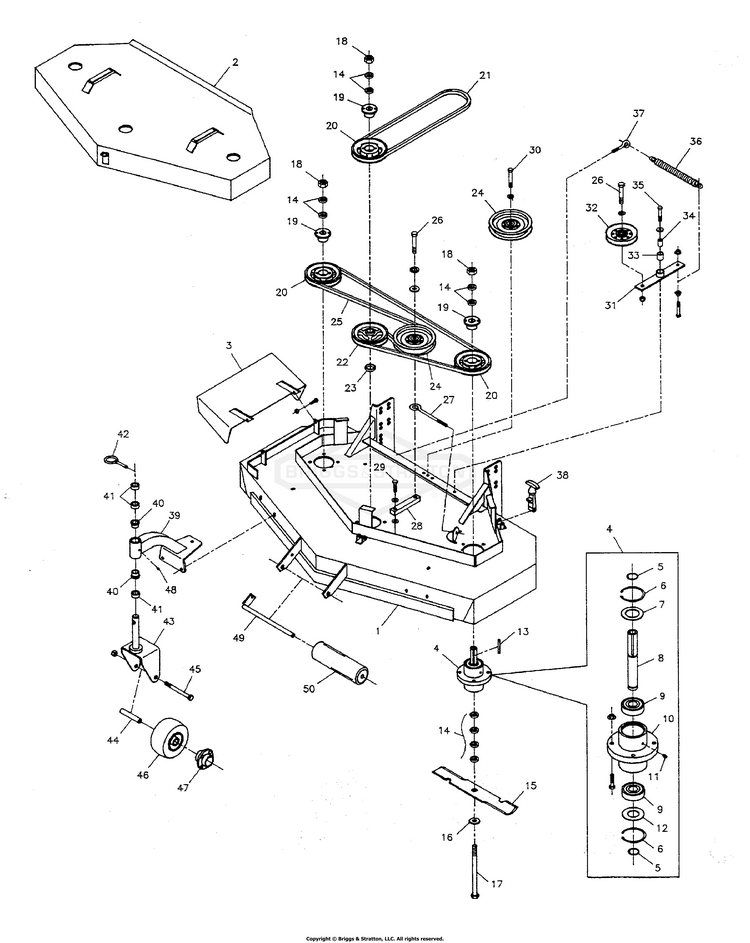

Ferris 5900232 - 52" Mower Deck (S/N: 4259 - 7540) (R52) Wheel Riding Mower

Model: 5900232-52"MowerDeck(S/N:4259-7540)(R52)

Save Part Not Listed?
product name

52" Mower Deck - Complete

...
...
1
DECK SHELL W/DECALS, 52" (Includes safety decals) BS-5600247
...
2
52" GUARD BS-5030845B
...
3
CHUTE, DISCHARGE BS-84009144
...
4
ASSM, SPINDLE, THRU B BS-5061033SM
...
5
SNAP RING, External BS-5020864SM
...
6
SNAP RING, INTERNAL BS-5020866SM
...
7
SPINDLE WASHER, Top BS-5041653SM
...
8
SPINDLE SHAFT BS-5041480SM
...
9
BEARING BS-5020828SM
...
10
SPINDLE HOUSING BS-5030293
...
11
GREASE FITTING, 1/4-2 BS-5020095SM
...
12
SPINDLE WASHER, Bottom BS-5041672SM
...
13
KEY, 1/4" SQ X 2.50 BS-5050407X20SM
...
14
SPACER, .63 X 1.06 X BS-5041477SM
...
15
MOWER BLADE (52" Deck) BS-5021227ASM
...
16
WASHER, 5/8" YZ BS-5025477SM
...
17
BOLT, 5/8-11 X 9-1/2" BS-5025019X76SM
...
18
NUT, 5/8-11 HEX BS-5025040SM
...
19
BUSHING, Tapered Hub (Includes bolts) BS-5020819SM
...
20
PULLEY, Spindle (H22's) BS-5020814SM
...
20
PULLEY, Split Steel (H19's) BS-5021492
...
21
BELT (H22's) BS-84009028
...
21
Deck Drive Belt (H19's) BS-5021677
...
22
PULLEY, CENTER SPINDL BS-5041478SM
...
22
PULLEY, Split Steel (H19's) BS-5021492
...
23
SPACER BS-5041484FS
...
24
PULLEY, IDLER, FLAT BS-5021096SM
...
25
BELT, BP-SEC, 118.782EL BS-5021297SM
...
26
BOLT, 1/2-20 X 2-1/4" BS-5025018X18SM
...
27
EYE BOLT, 3/8-16 X 8" BS-5021811SM
...
27
J-BOLT (H19's, S/N: 612 & below) BS-5041671
...
28
ARM, Idler BS-5044610B
...
28
IDLER ARM (H19's, S/N: 612 & below) BS-5041622
...
29
BOLT BS-5025016X14YP
...
30
BOLT, 1/2-20 X 2-1/2" BS-5025018X20SM
...
31
IDLER ARM, Complete BS-5042338B
...
32
PULLEY, IDLER, V-NOTC BS-5021097SM
...
33
BUSHING, BRASS, 3/4 X BS-5020876BSM
...
34
SPACER, .32 X .75 X 1 BS-5042134SM
...
35
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
36
SPRING, EXTENSION BS-5021103SM
...
38
LATCH, RUBBER BS-5020841X1SM
...
39
MOUNT BS-5043887FS
...
40
BUSHING, FLANGE BS-5021541SM
...
41
SPACER, 1.02 X 1.56 X BS-5041476SM
...
42
PIN, LYNCH, 7/16 BS-5020655SM
...
43
BRACKET, MOUNTING BS-84010489
...
44
AXLE, CASTER WHEEL BS-5041657SM
...
45
BOLT, 1/2-13 X 5-1/2" BS-5025017X44SM
...
46
TIRE ASSM, 9 X 3.5 X BS-5021181SSM
...
47
4 BOLT HUB W/ BEARING BS-5021181X3
...
47
NLA - Hub Complete (Stamped T) BS-5021262
...
48
GREASE FITTING BS-5021729
...
49
WELD, BRACKET, ROLLER SECURED W/ 5025013X8 & 5101414 BS-5041655AYP
...
50
ROLLER, DECK BS-5020785SM
