Ferris 5900228 - 72" Mower Deck (S/N: 855 - 1022) (P72) Wheel Riding Mower

Model: 5900228-72"MowerDeck(S/N:855-1022)(P72)

Save Part Not Listed?
product name

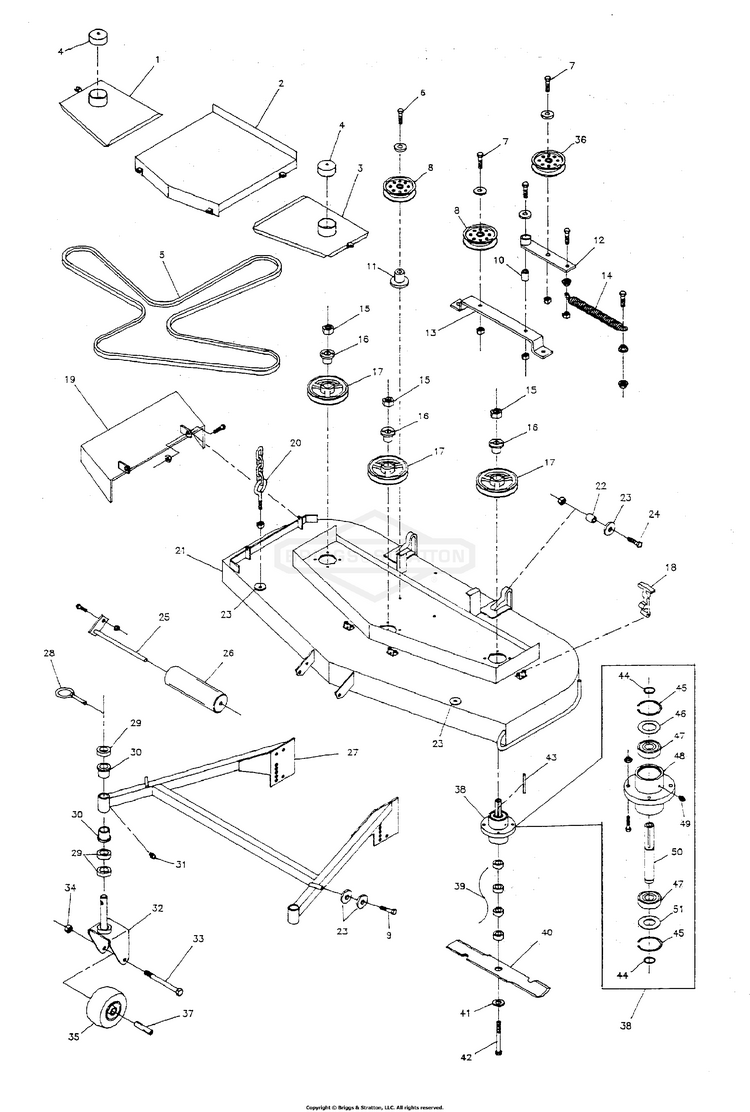

72" Mower Deck - Complete

...
...
1
WELD, 72" GUARD - RH BS-5049035B
...
2
CENTER DECK GUARD BS-5044198B
...
3
SPINDLE COVER-LH BS-5044180B
...
4
CAP BS-5021674FS
...
5
BELT BS-5104067FS
...
6
BOLT, 1/2-13 X 4-1/2" BS-5025017X36SM
...
7
BOLT, 1/2-20 X 2-1/2" BS-5025018X20SM
...
8
PULLEY, IDLER, FLAT, BS-5021831SM
...
9
BOLT, 1/2-13 X 3-1/2" BS-5025017X28SM
...
10
SPACER, .32 X .75 X 1 BS-5042134SM
...
11
SPACER BS-5044695FS
...
12
ARM, IDLER BS-84009640
...
13
IDLER MOUNT BS-5044174B
...
14
SPRING, EXTENSION BS-5021103SM
...
15
NUT, 5/8-11 HEX BS-5025040SM
...
16
BUSHING, Tapered Hub (Includes bolts) BS-5020819SM
...
17
PULLEY, SPINDLE BS-84010053
...
18
LATCH, RUBBER BS-5020841X1SM
...
19
DISCHARGE CHUTE BS-5044201B
...
20
DECK HANGER BS-5044199
...
21
DECK SHELL W/DECALS, P72, SIDE DISCHARGE (Includes safety decals) BS-5600077
...
22
DECK MOUNT SPACER BS-5044166
...
23

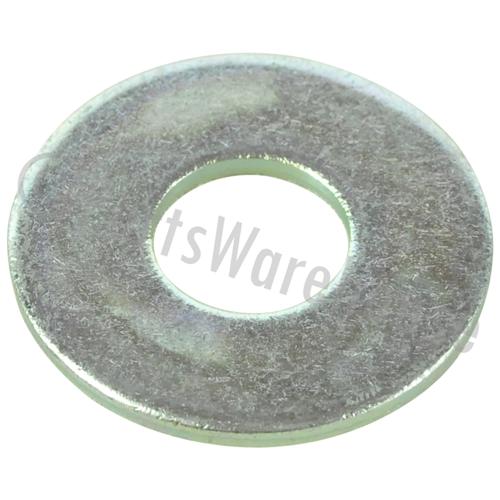

WASHER, 1/2" USS BS-5025150SM
...
24
BOLT, 1/2-20 X 2-1/2" BS-5025018X20SM
...
25
WELD, BRACKET, ROLLER SECURE W/ 5025013X8 & 5101414 BS-5041655AYP
...
26
ROLLER, DECK BS-5020785SM
...
27
CASTER MOUNT FRAME, Complete BS-5044257
...
28
PIN, LYNCH, 7/16 BS-5020655SM
...
29
SPACER, 1.02 X 1.56 X BS-5041476SM
...
30
BUSHING, FLANGE BS-5021541SM
...
31
FITTING BS-5021728FS
...
32
BRACKET, MOUNTING BS-84010489
...
33
BOLT, 1/2-13 X 5-1/2" BS-5025017X44SM
...
34
NUT BS-5025056FS
...
35
TIRE ASSM, 9 X 3.5 X BS-5021181SSM
...
36
PULLEY, IDLER BS-84009643
...
37
AXLE, CASTER WHEEL BS-5041657SM
...
38
ASSM, SPINDLE, THRU B BS-5061033SM
...
39
SPACER, .63 X 1.06 X BS-5041477SM
...
40
MOWER BLADE, 24-1/2" BS-5021408
...
41
WASHER, 5/8" YZ BS-5025477SM
...
42
BOLT, 5/8-11 X 9-1/2" BS-5025019X76SM
...
43
KEY, 1/4" SQ X 2.50 BS-5050407X20SM
...
44
SNAP RING, External BS-5020864SM
...
45
SNAP RING, INTERNAL BS-5020866SM
...
46
SPINDLE WASHER, Top BS-5041653SM
...
47
BEARING BS-5020828SM
...
48
SPINDLE HOUSING BS-5030293
...
49
GREASE FITTING, 1/4-2 BS-5020095SM
...
50
SPINDLE SHAFT BS-5041480SM
...
51
SPINDLE WASHER, Bottom BS-5041672SM
