Ferris 5601141 - Kit, Sulky, XS-2 Attachment

Model: 5601141 - Kit, Sulky, XS-2

Save Part Not Listed?
product name

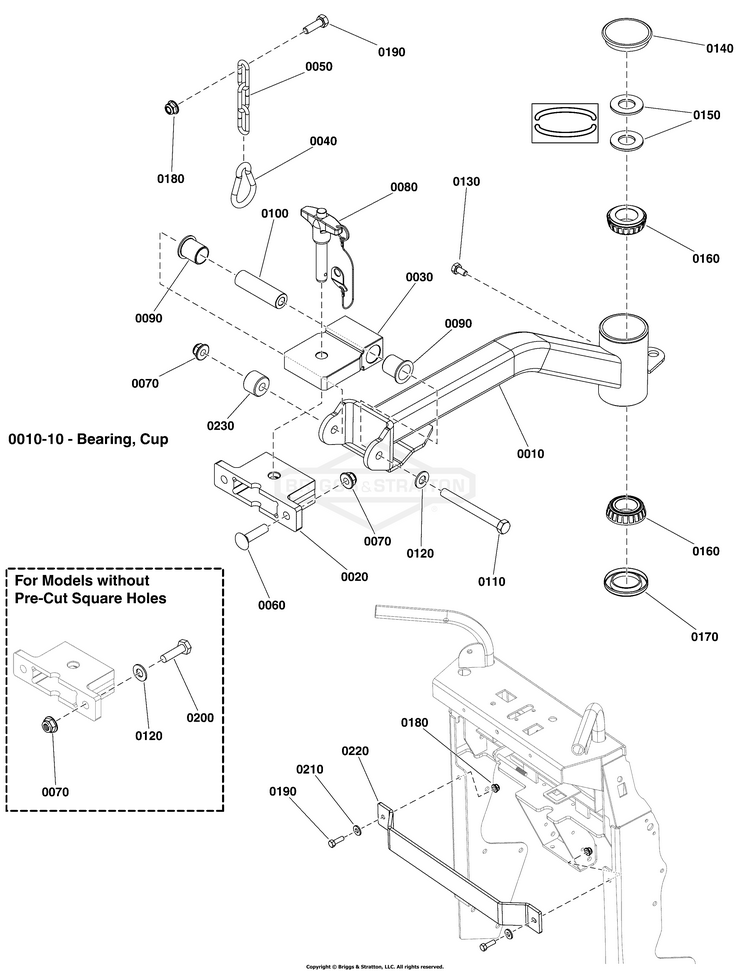

Arm & Mount Group

...
...
0010
ARM BS-84010382
...
0010-10
BEARING, TAPERED ROLL BS-5020884SM
...
0020
RECEIVER, SULKY BS-5106375FS
...
0030
BLOCK, JUNCTION BS-5106554FS
...
0040
RING, SNAP BS-5106384FS
...
0050
CHAIN BS-5106385FS
...
0060
BOLT, 3/8-16 X 1-1/2 BS-5025146X12YP
...
0070
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
0080
PIN BS-5106350FS
...
0090
BUSHING BS-5106372FS
...
0100
SPACER BS-5106348FS
...
0110
BOLT (Torque the nut for this bolt to 40 ft.lbs. (54 Nm)) BS-5025676X38FS
...
0120
WASHER BS-5025156FS
...
0130
BOLT - 1/4-28 X 1/2 BS-5025457SM
...
0140
CAP BS-5109845FS
...
0150
WASHER, BELLEVILLE BS-5025449SM
...
0160
BEARING, TAPERED ROLL BS-5020884SM
...
0170
SEAL, GREASE BS-5021072SM
...
0180
NUT BS-703115
...
0190
BOLT BS-5025011X8FS
...
0200
BOLT, 3/8-16 X 1-1/4" BS-5025013X10SM
...
0210
WASHER, 5/16" GD.9 FL BS-5025292SM
...
0220
BAR BS-5419312AAFS
...
0230
SPACER BS-5043815YP

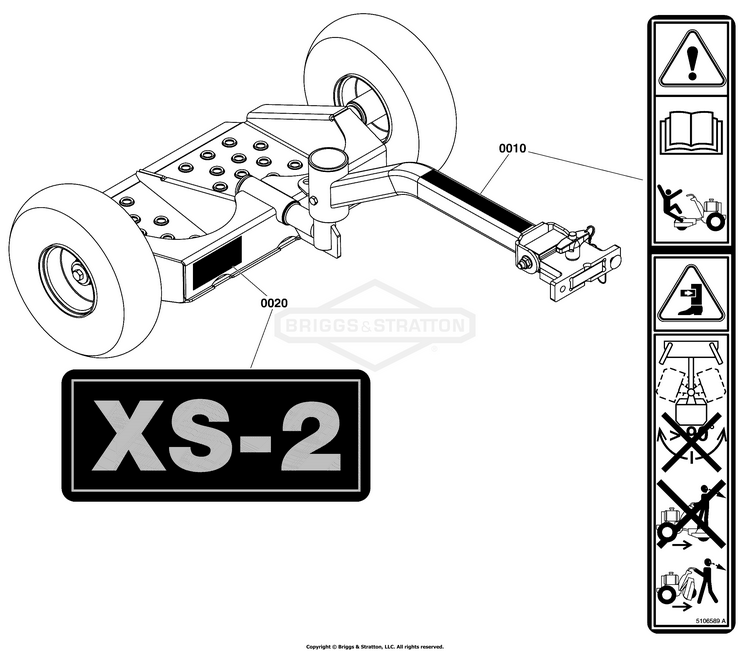

Decal Group

...
...
0010
DECAL, WARNING/SAFETY BS-5106589FS
...
0020
DECAL, MODEL BS-5106591FS

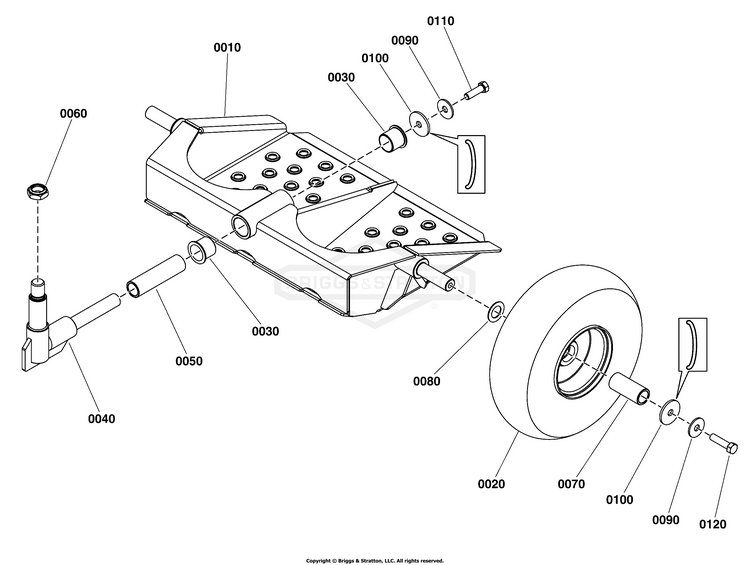

Platform Group

...
...
0010
FRAME, Sulky BS-5417574AFS
...
0020
TIRE ASSEMBLY BS-5106374FS
...
0020-10
BEARING (One per tire.)(Not an illustrated part.) BS-84008995
...
0020-20
BUSHING (Two per tire.)(Not an illustrated part.) BS-84010092
...
0030
BUSHING BS-5106414FS
...
0040
PIVOT BS-5418100AFS
...
0050
SPACER BS-5106537FS
...
0060
NUT - 3/4-16 HEX JAM BS-5025448SM
...
0070
SLEEVE BS-5106352FS
...
0080
SHIM BS-5106586FS
...
0090
WASHER - .39X1.50 BS-5100548SM
...
0100
WASHER, BEVELED BS-5106588FS
...
0110
BOLT (Torque to 40 ft.lbs. (54 Nm)) BS-5108223FS
...
0120
BOLT (Torque to 40 ft.lbs. (54 Nm)) BS-5025490FS
