Ferris 5600069 - Headlight Kit Attachment

Model: 5600069 - Headlight Kit

Save Part Not Listed?
product name

Headlight Kit - 5600069

...
...
0010
SWITCH, HEADLIGHT BS-1703799SM
...
0020
HEADLIGHT-4 RECT. (Halogen Bulb) BS-5023482
...
0020
HEADLIGHT ASSEMBLY (LED Bulb) BS-5417573FS
...
0030
BOLT, 1/4-20 X 1", GD BS-5025010X8SM
...
0040
NUT BS-5025391FS
...
0050
WASHER BS-703332
...
0060
WIRE HARNESS, HEADLIG BS-5061793SM
...
0070
MOUNT BS-5401917BFS
...
0080
TIE, Cable 11" Long BS-5021029SM
...
0090
RING, SWITCH RETAINER BS-5022222SM

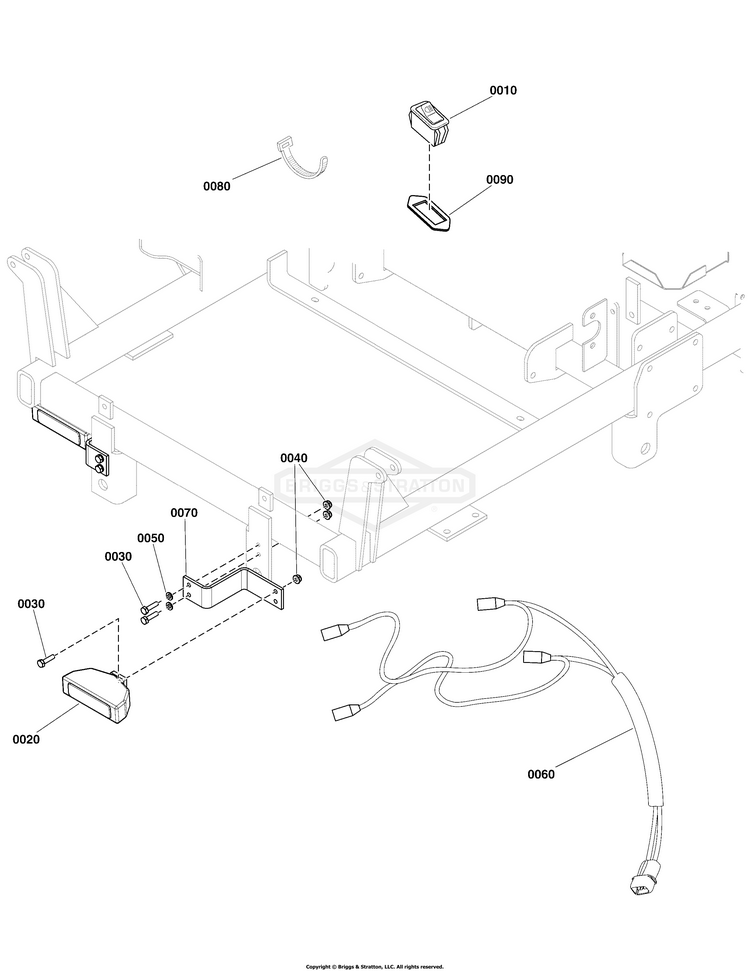

Schematic Image Zoomed
