product name

Ferris 5600053 - Headlight Kit Attachment

Model: 5600053 - Headlight Kit

Save Part Not Listed?
product name

Headlight Kit - 5600053

...
...
0010
SWITCH, HEADLIGHT BS-1703799SM
...
0020
TIE, Cable 11" Long BS-5021029SM
...
0030
RING, SWITCH RETAINER BS-5022222SM
...
0040
HEADLIGHT-4 RECT. (Halogen Bulb) BS-5023482
...
0040
HEADLIGHT ASSEMBLY (LED Bulb) BS-5417573FS
...
0060
BOLT BS-5025011X8FS
...
0070
WASHER BS-703332
...
0080
WASHER BS-703350
...
0090
NUT BS-5025391FS
...
0100
NUT BS-703115
...
0110
WIRE HARNESS, HEADLIG BS-5061793SM
...
0120
MOUNT BS-5401160BFS
...
0140

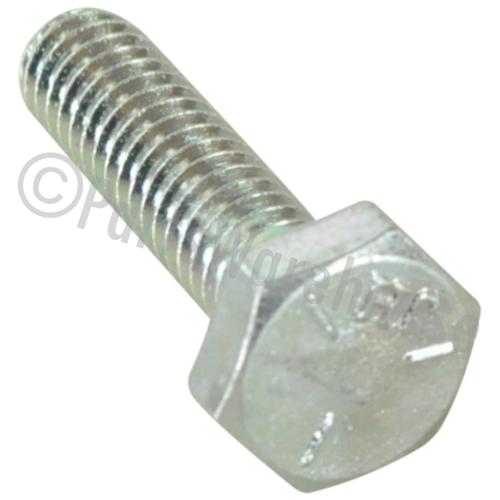

BOLT, 1/4-20 X 1", GD BS-5025010X8SM

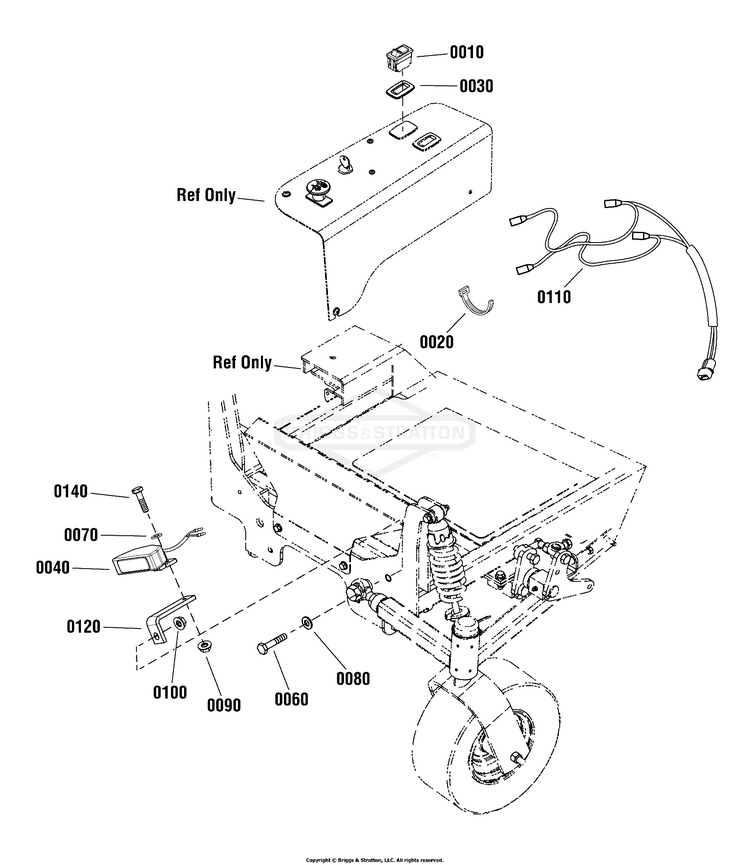

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
