Ferris 1697543-00 - Kit, eHOZ Catcher, Twin, CS Attachment

Model: 1697543-00 - Kit, eHOZ Catcher, Twin, CS

Back To Assemblies

Save Part Not Listed?
product name

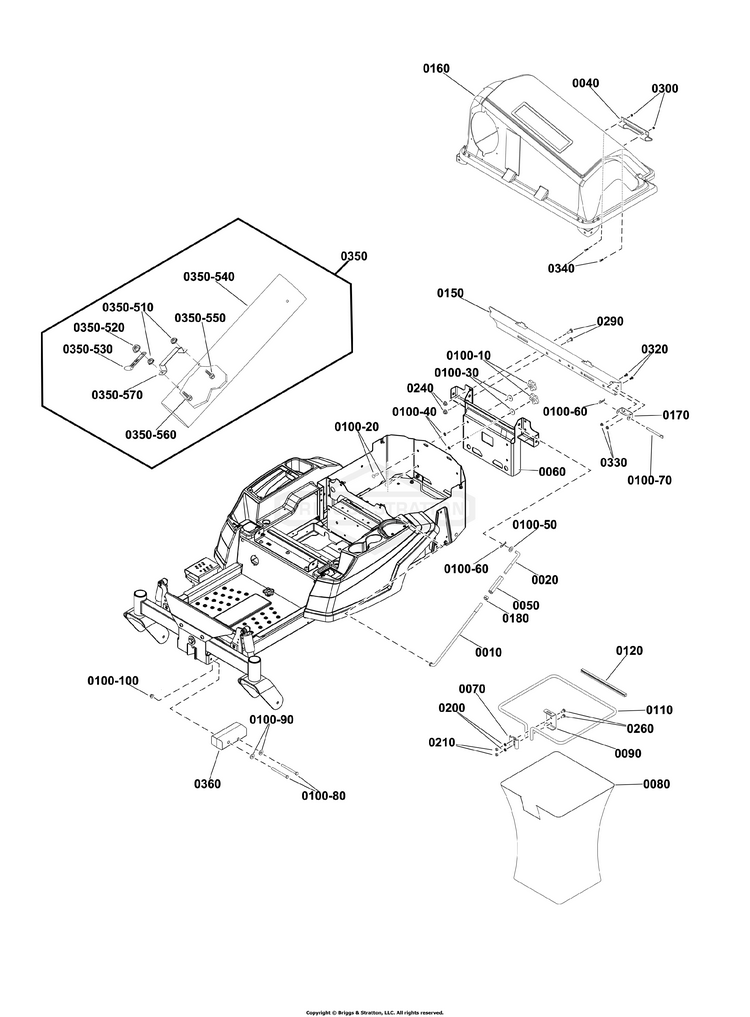

Catcher Group

...
...
0010
ROD, Bag Support BS-1759374YP
...
0020
ROD, Bag Support Upper BS-1759375YP
...
0040
HANDLE, Plastic BS-054537MA
...
0050
NUT, Coupling BS-708163
...
0060
MOUNT, Grass Catcher BS-84010824
...
0070
CLAMP, GRASS BAG - BL BS-1672023ASM
...
0080
BAG-GRASS 15.9 X 16.5 BS-1703764SM
...
0090
HANGER, Grass Bag Hoop, 10 Gauge Twin BS-1703807ASM
...
0100-10
KNOB, Threaded, 5 Lobe, 5/16-18 x 3/4 Lg BS-1733098SM
...
0100-20
BOLT, 5/16-18X1.25 G5 BS-703446
...
0100-30
WASHER-0.312(0.33IDX1 BS-1960044SM
...
0100-40
RETAINER, GR5, 5/16 BS-703297
...
0100-50
WASHER, 1/2" SAE BS-5025158SM
...
0100-60
PIN, 3/32 X 1.6 BS-703300
...
0100-70
PIN, Cover Hinge, 3/8 Dia.x 3-3/4 BS-054407ZMA
...
0100-80
BOLT, 3/8-16 X 4" GD5 BS-5025013X32SM
...
0100-90
WASHER BS-704128
...
0100-100
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
0110
HOOP, Twin, 1/2 Dia. BS-1733491SM
...
0120
EDGING, Tube Grass Bag BS-1733709SM
...
0150
SUPPORT, Cross BS-1759713AYP
...
0160
COVER BS-84008082
...
0170
PIVOT, HINGE BS-1736886BMYP
...
0180
NUT,1/2-13,GR5,HEX,ZC BS-703340
...
0200
WASHER, 5/16" LOCK BS-5025170SM
...
0210
NUT, 5/16-18 HEX BS-5025032SM
...
0240
NUT, 3/8-16 HEX SERRA BS-5025128SM
...
0260
BOLT, Round Head, Short Square Neck BS-703185
...
0290
BOLT, RD SQ 3/8-16X1 BS-703815
...
0300
NUT, NYLOCK, 10-24 BS-703412
...
0320
BOLT-RD HD SH SQ NK 1 BS-1960252SM
...
0330
NUT, 1/4-20, GR5 BS-703233
...
0340
SCREW, Truss Head, Phillips, #10-24 x 3/4, BS-1960404SM
...
0350-510
NUT, HEX, KEPS,1/4-20 BS-703914
...
0350-520
NUT, HEX FLNG, 1/4-20 BS-703916
...
0350-530
STRAP, Hood Rubber BS-2171600SM
...
0350-540
TUBE, Clear, 34" BS-7104383YP
...
0350-550
SCREW, Slotted, 1/4-20 x 1/2 BS-004X24MA
...
0350-560
SCREW, Machine, 1/4-20 X 1 BS-004X71MA
...
0350-570
HANDLE, Connect Tube BS-054416ZMA
...
0360
WEIGHT, Front BS-1759653YP
