Ferris 1697379A-00 - 61" Turbo Collection System Attachment

Model: 1697379A-00 - 61" Turbo Collection System

Save Part Not Listed?
product name

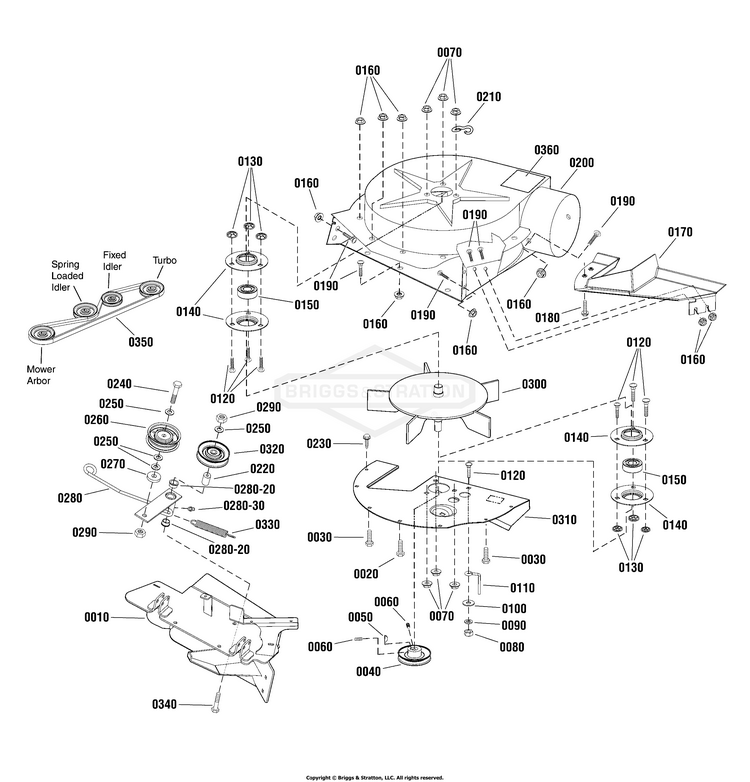

Turbo Housing Group (5303620)

...
...
0010
WELD, ADAPTER, 61, TPRO, 550Z - BLK BS-5411717A
...
0030
HHCS, 1/4-20 X 0.875, GR 5, ZINC/CLEAR BS-80004833
...
0040
PULLEY, 2 3/4 BS-1736092SM
...
0050
KEY, Woodruff, 3/16 BS-2860403SM
...
0060
SCREW, Set, Hex Socket Head, Cup Point, 5/16-18 x 3/8 BS-1677029SM
...
0070
NUT, 5/16-18 HEX SERR BS-5025139SM
...
0080
NUT, 5/16-18 HEX BS-5025032SM
...
0090
WASHER, 5/16" LOCK BS-5025170SM
...
0100
WASHER BS-5025337FS
...
0110
BELT STOP BS-1678435SM
...
0140
BEARING RETAINER - PL BS-1665982SM
...
0150
BEARING, BALL BS-2108202SM
...
0160
NUT BS-5025391FS
...
0170
PLATE-COVER,BLACK POL BS-1705267SM
...
0180
SCREW-HEX WSHR HD HI,LO .250 X .750 ZC/C BS-80027822
...
0190
BOLT, 1/4-20X.750, SQ BS-703575
...
0200
HOUSING, Blower BS-84008104
...
0210
"S" HOOK BS-1672689SM
...
0220
SPACER, .376 ID x 58 OD X 1 3/4 LG BS-1676833SM
...
0240
CAPSCREW,3/8-16X1.5 BS-703406
...
0250
WASHER BS-5025156FS
...
0260
PULLEY, Idler BS-2154534SM
...
0270
WSHR,0.453IDX1.250ODX0.250THK,FLAT,ZC/CL BS-80005608
...
0280
ASSY, IDLER ARM, 52" FAB TURBO ( Includes Ref. Nos. 0280-20 & 0280-30) BS-1756380
...
0280-20
BUSHING-0.628IDX BS-1676148SM
...
0290
NUT, 3/8-16 HEX SIDE BS-5025100SM
...
0300
FAN ASSY. (5 Blade) BS-1706631ASM
...
0310
PLATE-14GA FOR MDVS REG,BM,LL,BLACK TEXT BS-1705266A
...
0320
PULLEY, 3" OD BS-1721134SM
...
0330
SPRING, Extension BS-1716853SM
...
0340
HHCS, 3/8-16 X 3.250, GR 5, ZINC/CLEAR BS-80004845
...
0350
BELT, A-SEC, 45.0", ARAMID WRAPPED BS-5104088
...
0360
DECAL, Danger BS-1700259SM

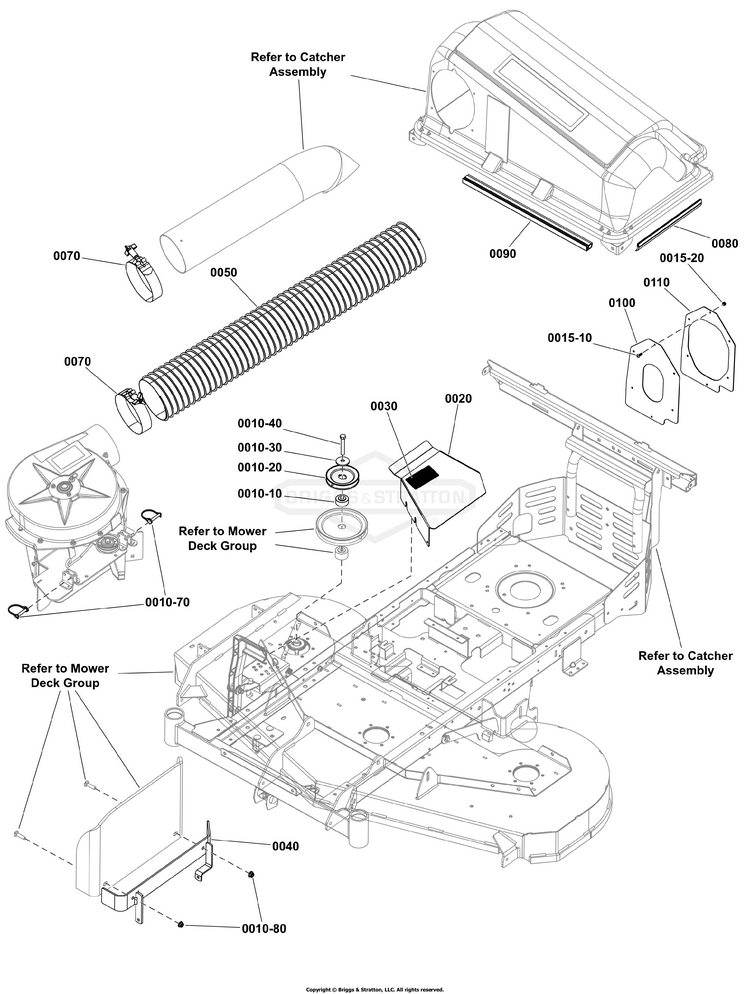

Turbo Mounting Group (80104500)

...
...
0010-10
SPACER, HUB BS-706362
...
0010-20
PULLEY ASSY Turbo BS-1709941SM
...
0010-30
WASHER, SPRING 0.475I BS-1656916SM
...
0010-40
CAPSCREW-HEX HD 7/16- BS-1926110SM
...
0010-70
SNAPPERPIN BS-5100847SM
...
0010-80
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
0015-10
SCREW, Phillips, #10-24 X 3/4 BS-1960404SM
...
0020
COVER, RH ARBOR TURBO (61 HOZ-XT) BS-80104512AA
...
0030
DECAL, WARNING, ENG BS-5103184YP
...
0040
WELD, FRAME, CHUTE, 550Z BLOWER - BLK BS-5411894A
...
0050
HOSE, FLEXIBLE, 6" DIA X 42" BS-80104457
...
0070
CLAMP BS-5103469YP
...
0080
EDGING, Seal BS-1721175SM
...
0090
EDGING, 12/1/2 BS-1717496SM
...
0100
SEAL BS-1733741YP
...
0110
FLANGE, Seal BS-1732735ASM
