Emglo K5HGA-8P Type 2 Compressor

Model: K5HGA-8P Type 2

Save Part Not Listed?
product name

Popular Parts

Popular Parts

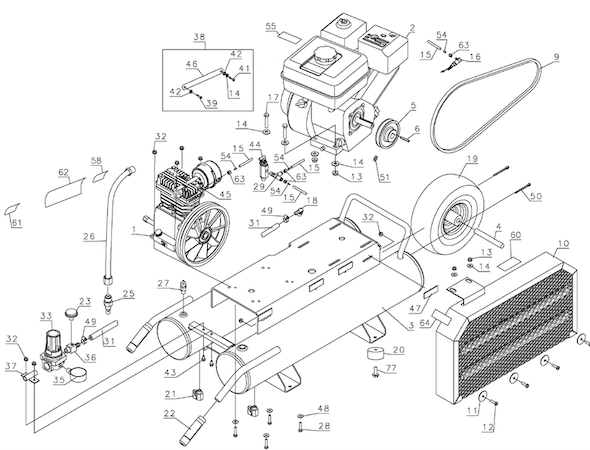

Emglo K5HGA-8P Type 2

...
...
1
Pump DWB-A16622
...
2
5.5Hp Honda DWB-628353-00
...
4
Axle Wheelbarrow DWB-DAC-138
...
5
Pulley DWB-5130226-00
...
6
Key DWB-5130192-00
...
9
V-Belt DWB-5130227-00
...
10
Belt Guard DWB-A21190
...
11
Fender Washer DWB-5130832-00
...
12
Screw DWB-A18823
...
13
Nut .312-18 Unc Hex DWB-SSF-8150
...
14
Washer DWB-5130198-00
...
15
Tubing DWB-A12463
...
16
Idle Control Kit DWB-A13616
...
18
Hose Barb DWB-5136608-00
...
19
Wheel DWB-N008948
...
20
Foot Pad DWB-A14785
...
21
Ball Valve DWB-N003818
...
22
Grip DWB-A17037
...
23
Gauge 1.5Od 200Psi . DWB-Z-D23004
...
25
Flare DWB-5130179-00
...
26
Hose Assembly DWB-5130208-00
...
27
Valve DWB-5130030-00
...
28
Hex Head Bolt DWB-5130792-00
...
29
Tee Fitting DWB-A12579
...
31
Air Hose DWB-A13447
...
32
Nut DWB-513021300
...
33
Regulator Assembly. DWB-A18682
...
35
Gauge 2 Od 200Psi 1 DWB-Z-D28274
...
36
Hose Barb DWB-A19965
...
37
Bracket DWB-513268500
...
38
Bracket DWB-513023200
...
39
Bolt DWB-5130233-00
...
41
Bolt DWB-5130234-00
...
42
Lock Washer DWB-513023500
...
43
Lock Bolt DWB-5130257-00
...
44
Pilot Valve DWB-5130236-00
...
45
Elbow DWB-SSP-6422
...
46
Bracket DWB-5130231-00
...
47
Isolator DWB-A12474
...
48
Flat Washer DWB-5130830-00
...
49
Hose Clamp DWB-5136697-00
...
50
Pin Cotter 5/32X2 DWB-SSN-2406
...
51
Set Screw DWB-5140006-94
...
54
Sleeve DWB-5130039-00
...
55
Decal DWB-A16611
...
58
Name Plate DWB-A20149
...
60
Warning Label DWB-A14971
...
61
Label DWB-A17566
...
62
Label,Brand DWB-A16818
...
63
Assembly Nut Sleeve 1/4 DWB-SSP-7811
...
64
Decal DWB-A16612
...
77
Screw .250-20X.750 H DWB-91895680

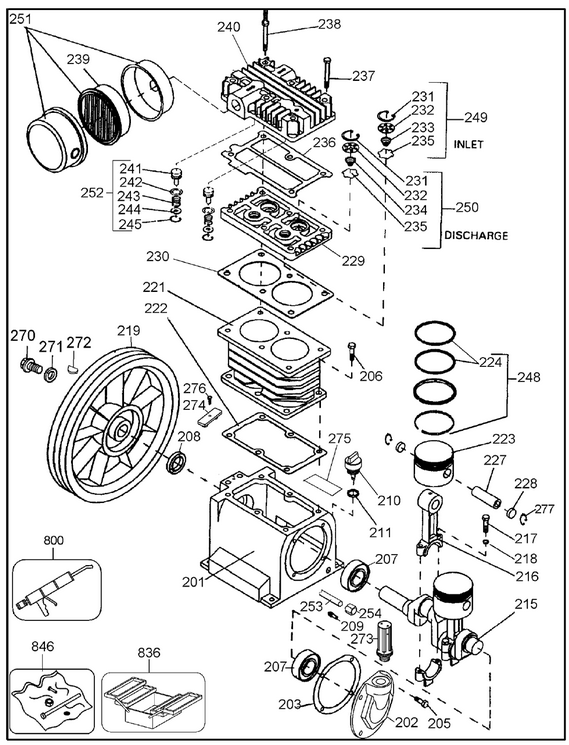

Emglo K5HGA-8P Type 2

...
...
201
Crank Case DWB-513216800
...
202
Bearing Cap DWB-A11060
...
203
Gasket DWB-5130111-00
...
205
Bolt DWB-5130113-00
...
206
Bolt DWB-5130114-00
...
207
Ball Bearing DWB-513011500
...
208
Seal DWB-5130116-00
...
209
Plug DWB-5130117-00
...
210
Oil Cap DWB-A11065
...
210
Oil Cap DWB-513392600
...
211
O-Ring DWB-5130119-00
...
215
Crankshaft DWB-5137151-00
...
216
Connecting Rod DWB-627567-00
...
217
Bolt DWB-621424-00
...
218
Lock Washer DWB-5130127-00
...
219
Flywheel DWB-513715000
...
221
Cylinder DWB-5132171-00
...
222
Gasket DWB-5130545-00
...
223
Piston Assembly. DWB-513016101
...
224
Compression Ring DWB-5130133-00
...
227
Piston Pin DWB-5130135-00
...
228
Retainer DWB-5130136-00
...
229
Valve Plate DWB-5130137-02
...
230
Gasket DWB-5130138-00
...
231
Retaining Ring DWB-513013900
...
232
Valve Bumper DWB-513014000
...
233
Valve Spring DWB-5130141-00
...
234
Valve Spring DWB-5130142-00
...
235
Valve Disc DWB-5130143-00
...
236
Gasket DWB-5130144-00
...
237
Bolt DWB-5130145-00
...
238
Bolt DWB-5130146-00
...
239
Filter DWB-5130147-00
...
239
Filter - 4 Pack DWB-5130147-01
...
240
Head DWB-5130148-00
...
241
Unloader Assembly. DWB-513016800
...
242
O-Ring DWB-5130150-00
...
243
Spring DWB-513015100
...
244
Washer DWB-5130152-00
...
245
Retaining Ring DWB-620639-00
...
248
Ring Set DWB-514003093
...
249
Valve Assembly DWB-513016400
...
250
Valve Assembly DWB-513016500
...
251
Filter Assembly DWB-5131692-00
...
252
Unloader Assembly. DWB-513016800
...
253
Nipple DWB-5130154-00
...
254
Cap DWB-513015500
...
270
Bolt DWB-621452-00
...
271
Washer DWB-621451-00
...
272
Key DWB-5137183-00
...
273
Breather DWB-A11062
...
274
Vent Plug DWB-A11063
...
275
Label DWB-A17145
...
276
Rivet DWB-A11064
...
277
Retaining Ring DWB-623935-00

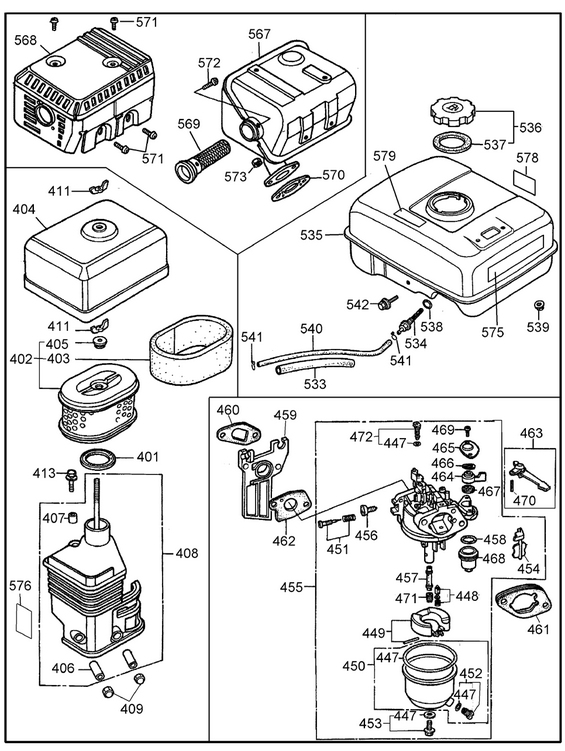

Emglo K5HGA-8P Type 2

...
...
401
Gasket DWB-285800-01
...
402
Element DWB-285800-02
...
403
Filter DWB-285800-03
...
404
Cover DWB-285800-04
...
405
Grommet DWB-285800-05
...
406
Collar DWB-285800-06
...
407
Collar DWB-285800-07
...
408
Elbow DWB-285800-08
...
409
Nut DWB-285800-09
...
411
Wing Nut DWB-285800-11
...
413
Bolt DWB-285800-13
...
414
Camshaft DWB-285800-14
...
415
Push Rod DWB-285800-15
...
416
Arm DWB-285800-16
...
417
Lifter DWB-285800-17
...
418
Pivot DWB-285800-18
...
419
Spring DWB-285800-19
...
420
Valve DWB-285800-20
...
421
Valve DWB-285800-21
...
422
Spring DWB-285800-22
...
423
Retainer DWB-285800-23
...
424
Retainer DWB-285800-24
...
425
Rotator Valve DWB-285800-25
...
426
Plate DWB-285800-26
...
427
Bolt DWB-285800-27
...
428
Nut DWB-285800-28
...
429
Control Assembly DWB-285800-29
...
430
Arm DWB-285800-30
...
431
Rod DWB-285800-31
...
432
Spring DWB-285800-32
...
433
Spring DWB-285800-33
...
434
Lever DWB-285800-34
...
435
Spring DWB-285800-35
...
436
Washer DWB-285800-36
...
437
Holder DWB-285800-37
...
438
Spacer DWB-285805-67
...
439
Spring DWB-285800-39
...
440
Spring DWB-285800-40
...
441
Bolt DWB-285800-41
...
442
Bolt DWB-285800-42
...
443
Nut DWB-285800-43
...
444
Screw DWB-285800-44
...
445
Screw & Washer DWB-285800-45
...
446
Nut DWB-285800-46
...
447
Gasket Set DWB-285800-47
...
448
Valve Set DWB-285800-48
...
449
Float Set DWB-285800-49
...
450
Chamber Set DWB-285800-50
...
451
Set Screw DWB-285800-51
...
452
Set Screw DWB-285800-52
...
453
Set Screw DWB-285800-53
...
454
Choke Set DWB-285800-54
...
455
Carburetor DWB-285800-55
...
456
Screw DWB-285800-56
...
457
Nozzle DWB-285800-57
...
458
O-Ring DWB-285800-58
...
459
Insulator DWB-285800-59
...
460
Gasket DWB-285800-60
...
461
Spacer DWB-285800-61
...
462
Gasket DWB-285800-62
...
463
Lever DWB-285800-63
...
464
Lever DWB-285800-64
...
465
Plate DWB-285800-65
...
466
Spring DWB-285800-66
...
467
Gasket DWB-285800-67
...
468
Cup DWB-285800-68
...
469
Screw DWB-285800-69
...
470
Pin DWB-285800-70
...
471
Jet DWB-285800-72
...
471
Jet DWB-285800-71
...
472
Jet DWB-285800-73
...
473
Cover Assembly. DWB-285800-74
...
474
Gasket DWB-285800-75
...
475
Cap Assembly. DWB-285800-76
...
476
Cap Assembly. DWB-285800-77
...
477
Gasket DWB-285800-78
...
478
Seal DWB-285800-79
...
479
Pin DWB-285800-80
...
480
Bolt DWB-285800-81
...
481
Ball Bearing DWB-285800-82
...
482
Crankshaft DWB-285800-83
...
483
Key DWB-285800-84
...
484
Cylinder Head DWB-285806-68
...
485
Guide DWB-285800-86
...
486
Guide DWB-285800-87
...
487
Clip DWB-285800-88
...
488
Gasket DWB-285800-89
...
489
Cover DWB-285800-90
...
490
Gasket DWB-285800-91
...
491
Tube DWB-285800-92
...
492
Bolt DWB-285800-93
...
493
Bolt DWB-285800-94
...
494
Bolt DWB-285800-95
...
495
Pin DWB-285800-96
...
496
Bolt DWB-285800-97
...
497
Spark Plug DWB-285800-98
...
498
Cylinder DWB-285800-99
...
499
Switch Assembly. DWB-285801-00
...
500
Governor Assembly. DWB-285801-01
...
501
Slider DWB-285801-02
...
502
Shaft DWB-285801-03
...
503
Drain Plug DWB-285801-04
...
504
Washer DWB-285801-05
...
505
Washer DWB-285801-06
...
506
Clip DWB-285801-07
...
507
Ball Bearing DWB-285801-08
...
508
Seal DWB-285800-79
...
509
O-Ring DWB-285801-10
...
510
Nut DWB-285801-11
...
511
Washer DWB-285801-12
...
512
Lock Pin DWB-285801-13
...
513
Bolt DWB-285801-14
...
515
Cover DWB-285801-15
...
516
Plate DWB-285801-16
...
517
Clip DWB-285801-17
...
518
Shroud DWB-285801-18
...
519
Switch Assembly. DWB-285801-19
...
520
Bolt DWB-285800-41
...
521
Bolt DWB-285801-21
...
522
Oil Alert Unit DWB-285801-22
...
523
Bolt DWB-285801-23
...
524
Key DWB-285801-24
...
525
Fan DWB-285801-25
...
526
Pulley DWB-285801-26
...
527
Flywheel DWB-285801-27
...
528
Nut DWB-285801-28
...
529
Ignition Coil DWB-285801-29
...
530
Capacitor Assembly DWB-285801-30
...
531
Wire DWB-285801-31
...
532
Bolt DWB-285801-32
...
533
Rubber Tube DWB-285801-33
...
534
Joint DWB-285801-34
...
535
Tank DWB-285801-35
...
536
Cap DWB-285801-36
...
537
Gasket DWB-285801-37
...
538
O-Ring DWB-285801-10
...
539
Nut DWB-285800-46
...
540
Hose DWB-285801-40
...
541
Clip DWB-285801-41
...
542
Bolt DWB-285801-42
...
543
Starter Assembly. DWB-285806-79
...
544
Reel DWB-285801-44
...
545
Ratchet DWB-285801-45
...
546
Guide DWB-285801-46
...
547
Spring DWB-285801-47
...
548
Spring DWB-285801-48
...
549
Spring DWB-285801-49
...
550
Knob DWB-285801-50
...
551
Rope DWB-285805-10
...
551
Rope DWB-285801-51
...
552
Screw DWB-285801-52
...
553
Bolt DWB-285801-53
...
554
Ring Set DWB-285801-56
...
554
Ring Set DWB-285801-57
...
554
Ring Set DWB-285801-54
...
554
Ring Set DWB-285801-55
...
555
Piston DWB-285806-62
...
555
Piston DWB-285806-64
...
555
Piston DWB-285801-61
...
555
Piston DWB-285801-60
...
556
Pin DWB-285801-62
...
557
Con Rod Assembly DWB-285801-64
...
557
Con Rod Assembly DWB-285801-63
...
558
Bolt DWB-285801-65
...
559
Clip DWB-285801-66
...
567
Muffler DWB-285801-67
...
568
Protector DWB-285801-68
...
569
Spark Arrester DWB-285801-69
...
570
Gasket DWB-285801-70
...
571
Screw DWB-285801-71
...
572
Screw DWB-285801-72
...
573
Nut DWB-285801-73
...
574
Emblem DWB-285801-74
...
575
Label DWB-285801-75
...
576
Label DWB-285801-76
...
577
Label DWB-285801-77
...
578
Label DWB-285801-78
...
579
Label DWB-285801-79
...
580
Seal DWB-285806-76
...
581
Starter Pulley DWB-285806-81
...
800
Oil DWB-5130427-00
...
836
Loctite DWB-5140100-02
...
846
Tune-Up Kit DWB-5140019-94
...
846
Valve Plate Assembly DWB-513262700
...
846
Piston Assembly. DWB-513016101
...
846
Vent Upgrade Kit DWB-A11845
...
846
Head Assembly DWB-5130167-00
...
846
Gasket Set DWB-513015800
...
846
Label Set DWB-513033500
...
846
Repair Kit DWB-5130159-00
