product name

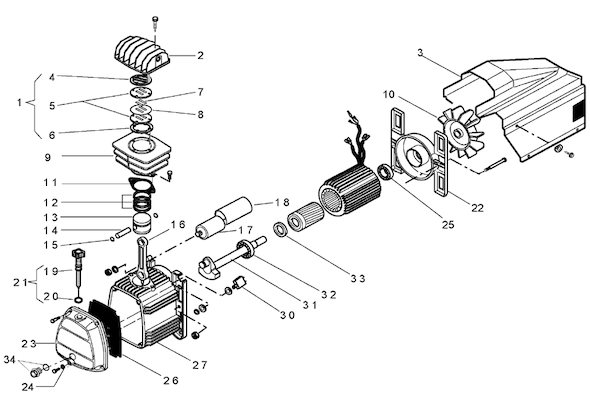

Emglo EM810-4M Type 1 Compressor

Model: EM810-4M

Save
 Part Not Listed?Part Not Listed?
product name

Emglo EM810-4M

...
...
1
Valve Kit DWB-5140110-50
...
2
Head DWB-5130284-00
...
3
Housing DWB-5140016-92
...
4
Gasket DWB-5130078-00
...
5
Valve Plate DWB-5140016-72
...
6
Gasket DWB-5130082-00
...
7
Valve Blade DWB-5140016-73
...
8
Valve Plate Gasket DWB-5140016-74
...
9
Cylinder DWB-5140016-95
...
10
Fan DWB-5130107-00
...
11
Seal DWB-5140016-75
...
12
Piston Ring Set DWB-5130084-00
...
13
Piston DWB-5130085-00
...
14
Pin DWB-5130086-00
...
15
Retaining Ring DWB-5130087-00
...
16
Connecting Rod DWB-5130088-00
...
17
Condenser DWB-5140016-76
...
18
Cover DWB-5140016-77
...
19
Dipstick DWB-5134612-00
...
20
O-Ring DWB-5140026-42
...
21
Dipstick DWB-5140016-78
...
22
End Cover DWB-5134707-00
...
23
Cover DWB-5140110-51
...
24
O-Ring DWB-5140016-81
...
25
Bearing DWB-5140111-80
...
26
Cover,Seal DWB-5140016-83
...
27
Case Assy DWB-5140040-44
...
30
Overload Protector DWB-5140028-31
...
31
Crankshaft DWB-5140016-86
...
32
Bearing DWB-5140016-87
...
33
Seal DWB-5140016-88
...
34
Oil Glass DWB-5140110-53
...
51
Pressure Switch DWB-5140050-55
...
52
Tube DWB-5140038-30
...
53
Tube DWB-5140038-31
...
54
Foot Pad DWB-5140038-32
...
55
Knob DWB-5140038-33
...
56
Handle DWB-5140111-81
...
57
Wheel DWB-5140111-82
...
58
Valve DWB-5134604-00
...
59
Plate DWB-5140038-37
...
60
Handle-Sleeve DWB-5140111-83
...
61
Handle-Sleeve DWB-5140111-84
...
62
Pin DWB-5140038-40
...
63
Clip DWB-5140038-41
...
64
Stopper DWB-5140111-85
...
65
Cover DWB-5140111-86
...
66
Gauge DWB-5140111-87
...
67
Cordset DWB-5140050-56
...
68
Locknut DWB-5140028-18
...
69
Compression Nut DWB-629409-00
...
70
Compression Ring DWB-629408-00
...
71
Compression Ring DWB-5140028-17
...
72
Compass DWB-5140028-19
...
73
Fitting DWB-5140110-56
...
74
Elbow DWB-5140038-46
...
75
Quick Coupler DWB-5140030-62
...
76
Pump/Motor Assy DWB-5140111-88
...
77
Filter DWB-5140019-80
...
78
Safety Valve DWB-5140028-14
...
79
Lock Nut DWB-5140111-89
...
80
Elbow DWB-5140028-59
...
81
Check Valve Assy DWB-5140030-78
...
82
Air Pipe DWB-5140038-47
...
83
Hose Clamp DWB-5140038-48
...
84
Compression Ring DWB-5140111-90
...
85
Check Valve DWB-5140111-91
...
86
Cable Clamp DWB-5140038-53
...
87
Drain Valve DWB-5140038-49
...
88
Front Panel DWB-5140038-50
...
89
Manifold DWB-5140111-92
...
90
Grommet DWB-5140028-30
...
91
Base Plate DWB-5140110-58
...
100
Nameplate DWB-N104698
...
101
Label DWB-N118967
...
105
Label DWB-N097031
...
106
Label DWB-N097032
...
107
Label DWB-N119219
...
109
Warning Label DWB-627676-00
...
111
Warning Label DWB-A18336
...
112
Label DWB-626966-00
...
113
Warning Strip DWB-5130366-00
...
114
Decal DWB-5130060-00

Emglo EM810-4M

...
...
51
Pressure Switch DWB-5140050-55
...
52
Tube DWB-5140038-30
...
53
Tube DWB-5140038-31
...
54
Foot Pad DWB-5140038-32
...
55
Knob DWB-5140038-33
...
56
Handle DWB-5140111-81
...
57
Wheel DWB-5140111-82
...
58
Valve DWB-5134604-00
...
59
Plate DWB-5140038-37
...
60
Handle-Sleeve DWB-5140111-83
...
61
Handle-Sleeve DWB-5140111-84
...
62
Pin DWB-5140038-40
...
63
Clip DWB-5140038-41
...
64
Stopper DWB-5140111-85
...
65
Cover DWB-5140111-86
...
66
Gauge DWB-5140111-87
...
67
Cordset DWB-5140050-56
...
68
Locknut DWB-5140028-18
...
69
Compression Nut DWB-629409-00
...
70
Compression Ring DWB-629408-00
...
71
Compression Ring DWB-5140028-17
...
72
Compass DWB-5140028-19
...
73
Fitting DWB-5140110-56
...
74
Elbow DWB-5140038-46
...
75
Quick Coupler DWB-5140030-62
...
76
Pump/Motor Assy DWB-5140111-88
...
77
Filter DWB-5140019-80
...
78
Safety Valve DWB-5140028-14
...
79
Lock Nut DWB-5140111-89
...
80
Elbow DWB-5140028-59
...
81
Check Valve Assy DWB-5140030-78
...
82
Air Pipe DWB-5140038-47
...
83
Hose Clamp DWB-5140038-48
...
84
Compression Ring DWB-5140111-90
...
85
Check Valve DWB-5140111-91
...
86
Cable Clamp DWB-5140038-53
...
87
Drain Valve DWB-5140038-49
...
88
Front Panel DWB-5140038-50
...
89
Manifold DWB-5140111-92
...
90
Grommet DWB-5140028-30
...
91
Base Plate DWB-5140110-58
...
100
Nameplate DWB-N104698
...
101
Label DWB-N118967
...
105
Label DWB-N097031
...
106
Label DWB-N097032
...
107
Label DWB-N119219
...
109
Warning Label DWB-627676-00
...
111
Warning Label DWB-A18336
...
112
Label DWB-626966-00
...
113
Warning Strip DWB-5130366-00
...
114
Decal DWB-5130060-00
...
...
...
