Emglo AM782HC4V Type 2 Compressor

Model: AM782HC4V Type 2

Save Part Not Listed?
product name

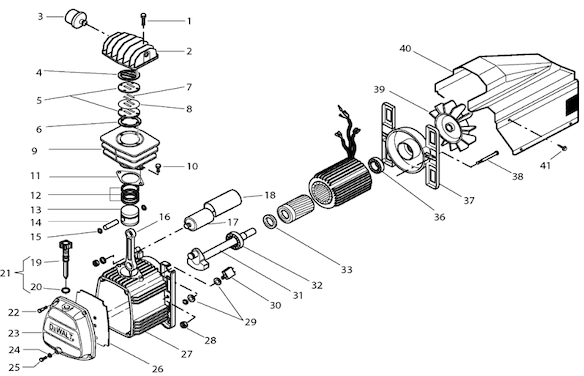

Emglo AM782HC4V Type 2

...
...
1
Bolt DWB-5130077-00
...
2
Head DWB-5130284-00
...
3
Filter DWB-5140019-80
...
4
Head Gasket DWB-5140026-38
...
5
Valve Plate DWB-5140016-72
...
6
Gasket DWB-5140026-39
...
7
Valve Blade DWB-5140016-73
...
8
Valve Plate Gasket DWB-5140016-74
...
9
Cylinder DWB-5140016-95
...
10
Bolt DWB-5130105-00
...
11
Gasket DWB-5140026-40
...
12
Piston Ring Set DWB-5130084-00
...
13
Piston DWB-5130085-00
...
14
Pin DWB-5130086-00
...
15
Retaining Ring DWB-5130087-00
...
16
Connecting Rod DWB-5130088-00
...
17
Condenser DWB-5140016-76
...
18
Cover DWB-5140016-77
...
19
Dipstick DWB-5134612-00
...
20
O-Ring DWB-5140026-42
...
21
Dipstick DWB-5140016-78
...
22
Screw DWB-5140016-79
...
23
Cover DWB-5140026-44
...
24
O-Ring DWB-5140016-81
...
25
Screw DWB-5140016-82
...
26
Cover,Seal DWB-5140016-83
...
27
Case Assembly DWB-5140040-44
...
28
Nut DWB-5130101-00
...
29
Washer DWB-5140026-48
...
30
Overload Protector DWB-5140028-31
...
31
Crankshaft DWB-5140016-86
...
32
Bearing DWB-5140016-87
...
33
Seal DWB-5140016-88
...
36
Bearing DWB-5134652-00
...
37
End Cover DWB-5134707-00
...
38
Screw DWB-5140016-91
...
39
Fan DWB-5130107-00
...
40
Housing DWB-5140016-92
...
41
Screw DWB-5130097-00

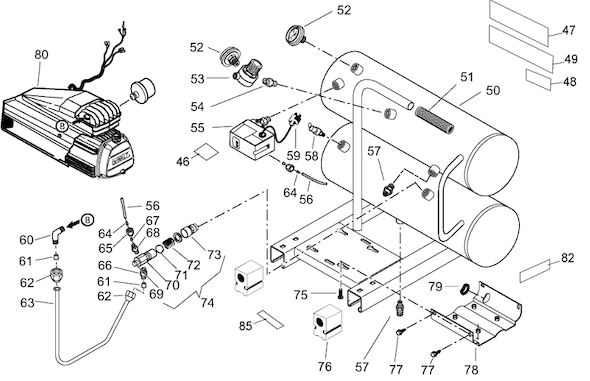

Emglo AM782HC4V Type 2

...
...
46
Warning Label DWB-627676-00
...
47
Warning Label DWB-A18336
...
48
Decal DWB-513005900
...
49
Id Label DWB-632657-00
...
50
Tank DWB-5140028-07
...
51
Knob DWB-5140028-08
...
52
Gauge DWB-5130205-00
...
53
Reducer DWB-5140028-10
...
54
Nipple DWB-5140028-11
...
55
Pressure Switch DWB-629406-00
...
56
Unloader Tube DWB-629407-00
...
57
Drain Valve DWB-5140038-49
...
58
Safety Valve DWB-5140028-14
...
59
Power Cable DWB-5140028-15
...
60
Elbow DWB-5140028-16
...
61
Compression Ring DWB-5140028-17
...
62
Locknut DWB-5140028-18
...
63
Aftercooler DWB-629401-00
...
64
Compass DWB-5140028-19
...
65
Compression Nut DWB-629409-00
...
66
Nipple DWB-514002820
...
67
Compression Ring DWB-629408-00
...
68
Nipple DWB-5140028-21
...
69
Cold Start Valve DWB-5130033-00
...
70
Check Valve Assembly DWB-5140030-78
...
71
Check Valve Assembly DWB-5140030-78
...
72
Check Valve Assembly DWB-5140030-78
...
73
Check Valve Assembly DWB-5140030-78
...
74
Check Valve Assembly DWB-5140030-78
...
75
Screw DWB-5140028-27
...
76
Foot DWB-513062800
...
77
Screw,Self-Tap. DWB-5140028-28
...
78
Base Plate DWB-5140028-29
...
79
Grommet DWB-5140028-30
...
80
Pump/Motor Assembly. DWB-5137078-00
...
82
Warning Label DWB-631791-00
...
85
Nameplate DWB-639451-00
