Electrolux EW27EW55PSE Wall Oven

Model: EW27EW55PSE

Save Part Not Listed?

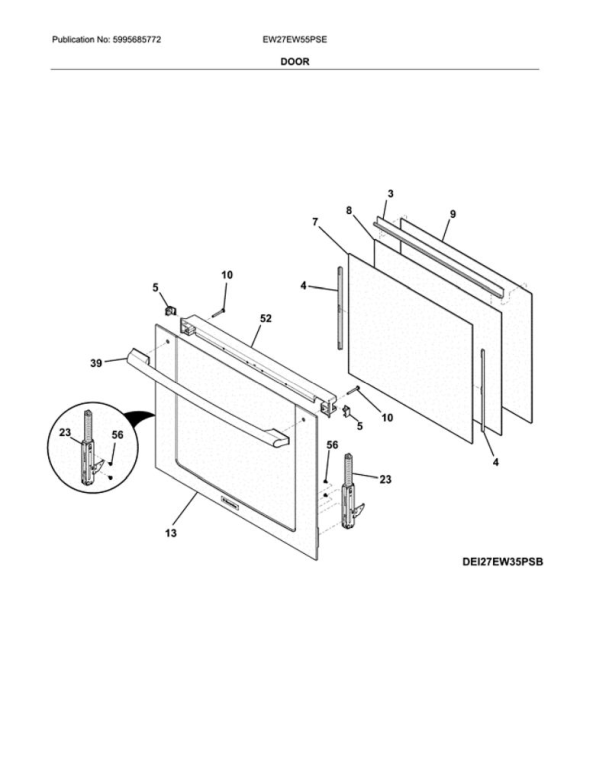

product name

Electrolux EW27EW55PSE

...
...
NI
Range Oven Door Spacer WCI-318165800
...
NI
Range Screw, #6-32 X 1/4-In WCI-316524400
...
NI
Range Screw WCI-316021110
...
NI
Range Screw WCI-316021105
...
NI
Harness-Ads Mdl E Elux Swo,Latch Harness WCI-5304517385
...
2A
Oven Cover WCI-139003601
...
2B
Oven Cover WCI-139003701
...
3
Wall Oven Cooling Fan Service Box WCI-318577801
...
3
Spacer WCI-5304490893
...
4
Wall Oven Door Glass Spacer WCI-808983501
...
5
Cap WCI-139010800
...
7
Glass WCI-139010503
...
8
Glass WCI-139010502
...
9
Range Oven Door Inner Glass WCI-5304505702
...
10
Screw WCI-316439507
...
13
Wall Oven Door Outer Panel (Black And Stainless) WCI-808950023
...
19
Control Panel WCI-139034533
...
20
Controller,Electronic ,Es630W12 WCI-316576697
...
21
Bracket WCI-139028000
...
23
Hinge WCI-139010303
...
39
Handle WCI-316380805
...
52
Trim WCI-5304498537
...
56
Screw WCI-807286001
...
77
Cooking Appliance Control Board Spacer WCI-316247900
...
77A
Range Power Control Board Support WCI-316114100
...
97
Wall Oven Relay Control Board WCI-316443941
...
97A
Wall Oven Power Supply Board WCI-316535201
...
98
Screw WCI-5304401490
...
98A
Range Screw, #8 X 1-In WCI-5303289910
...
99
Wall Oven Relay Control Board WCI-316519205

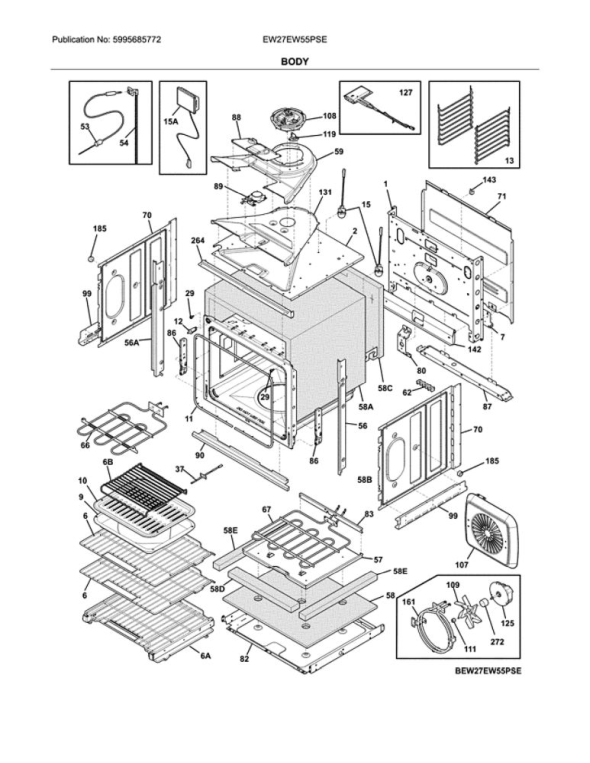

Electrolux EW27EW55PSE

...
...
NI
Range Oven Light Bulb WCI-318946500
...
NI
Range Screw WCI-316001003
...
NI
Screw WCI-5304470882
...
NI
Range Screw WCI-316021110
...
NI
Range Screw, #8 X 1-In WCI-5303289910
...
NI
Range Screw WCI-316021109
...
NI
Harness WCI-5304500988
...
NI
Harness Assembly,Conduit ,Elbow Connector,& Wiring WCI-5304506983
...
NI
Main Wiring Harness WCI-5304510377
...
NI
Range Hex Flange Nut, #10-32 X 3/8-In WCI-316205500
...
NI
Range Screw WCI-316021105
...
NI
Screw WCI-807597603
...
NI
Range Oven Door Spacer WCI-318165800
...
NI
Range Screw WCI-316418900
...
NI
Bracket WCI-318579001
...
NI
Harness-Ads Mdl E Elux Swo,Latch Harness WCI-5304517385
...
NI
Range Screw, #6-32 X 1/4-In WCI-316524400
...
1
Main Back Panel WCI-5304506958
...
2
Shield WCI-139027806
...
2B
Oven Cover WCI-139003701
...
2A
Oven Cover WCI-139003601
...
3
Wall Oven Cooling Fan Service Box WCI-318577801
...
6
Wall Oven Rack WCI-139011505
...
6A
Glide Rack WCI-808713910
...
6B
Range Oven Rack WCI-318365800
...
7
Panel,Service ,Main Back WCI-5304506960
...
9
Range Broil Pan WCI-316081901
...
10
Insert Broil WCI-316082001
...
11
Seal WCI-807545503
...
12
Range Oven Door Switch WCI-808136601
...
13
Ladder Assembly WCI-808713901
...
15
Range Oven Light Bulb WCI-139009000
...
15A
Range Halogen Light Bulb WCI-318946400
...
15A
Range Oven Light Assembly WCI-139001800
...
19
Control Panel WCI-139034533
...
20
Controller,Electronic ,Es630W12 WCI-316576697
...
21
Bracket WCI-139028000
...
29
Bumper WCI-316517601
...
37
Range Oven Temperature Sensor WCI-5304504897
...
53
Range Oven Meat Probe Sensor WCI-5304516490
...
54
Wall Oven Meat Probe Jack Assembly WCI-139017203
...
56
Trim WCI-318903728
...
56A
Trim WCI-318903729
...
57
Wall Oven Bake Element Base WCI-5304506949
...
58
Insulation,Bake Element ,Lower WCI-5304506952
...
58A
Insulation WCI-139001701
...
58C
Insulation,Oven ,Back WCI-5304506954
...
58D
Insulation,Bake Element ,Front WCI-5304506965
...
58E
Insulation,Bake Element ,Side WCI-5304506966
...
59
Duct WCI-139027600
...
62
Range Terminal Block WCI-5304409888
...
66
Range Broil Element WCI-139028200
...
67
Wall Oven Bake Element WCI-5304506946
...
70
Range Side Insulation Heat Shield WCI-139000600
...
71
Shield WCI-139022000
...
77A
Range Power Control Board Support WCI-316114100
...
77
Cooking Appliance Control Board Spacer WCI-316247900
...
80
Bracket WCI-139021101
...
82
Shield,Insulation ,Lower WCI-5304506947
...
83
Shield,Bake Element ,Rear WCI-5304506951
...
86
Receptacle WCI-139026900
...
87
Bracket WCI-139021900
...
88
Cover,Latch Motor WCI-5304506964
...
89
Motor,Latch Assy. ,2 Terminals WCI-139021303
...
90
Oven Trim WCI-318903535
...
97A
Wall Oven Power Supply Board WCI-316535201
...
97
Wall Oven Relay Control Board WCI-316443941
...
98A
Range Screw, #8 X 1-In WCI-5303289910
...
98
Cooking Appliance Screw, 6-18 X 1-In WCI-5304401490
...
99
Range Side Panel Lower Support Bracket WCI-318256201
...
99
Wall Oven Relay Control Board WCI-316519205
...
107
Cover WCI-139013902
...
108
Motor WCI-318575614
...
109
Blade WCI-139009100
...
111
Range Convection Fan Blade Nut WCI-316136600
...
119
Range High-Limit Thermostat WCI-318578506
...
125
Motor WCI-139008504
...
127
Catalyst WCI-807123502
...
131
Duct WCI-139027700
...
142
Sheild,Air Deflector ,Back WCI-5304506953
...
143
Stiffener WCI-318172904
...
161
Element WCI-139006500
...
185
Range Spacer WCI-318531800
...
264
Wall Oven Vent Trim (Black) WCI-139003501
...
272
Tube WCI-139021700

Electrolux EW27EW55PSE

...
...
NI
Cleaner-Cook WCI-318163602
...
NI
Screw WCI-807597603
...
NI
Harness Assembly,Filter ,Electrical ,W/Capacitors WCI-5304517285
...
NI
Main Wiring Harness WCI-5304510377
...
NI
Wall Oven Wire Harness WCI-5304506983
...
NI
Screw WCI-5304470882
...
NI
Range Screw, #8 X 1-In WCI-5303289910
...
NI
Range Oven Light Bulb WCI-318946500
...
NI
Bracket WCI-318579001
...
NI
Range Oven Door Spacer WCI-318165800
...
NI
Range Screw WCI-316418900
...
NI
Range Hex Flange Nut, #10-32 X 3/8-In WCI-316205500
...
NI
Range Screw WCI-316021109
...
NI
Range Screw WCI-316001017
...
1
Main Back Panel WCI-5304506958
...
2
Shield WCI-139027806
...
3
Spacer WCI-5304490893
...
4
Wall Oven Door Glass Spacer WCI-808983501
...
5
Cap WCI-139010800
...
6B
Range Roasting Rack WCI-318365800
...
6A
Glide Rack WCI-808713910
...
6
Wall Oven Rack WCI-139011505
...
7
Glass WCI-139010503
...
7
Panel,Service ,Main Back WCI-5304506960
...
8
Glass WCI-139010502
...
9
Range Oven Door Inner Glass WCI-5304505702
...
9
Range Broil Pan WCI-316081901
...
10
Screw WCI-316439507
...
10
Range Broil Pan Insert WCI-316082001
...
11
Seal WCI-807545503
...
12
Range Oven Door Switch WCI-808136601
...
13
Door Assembly WCI-808950023
...
13
Wall Oven Rack Ladder WCI-808713901
...
15A
Range Halogen Light Bulb WCI-318946400
...
15A
Range Oven Light Assembly WCI-139001800
...
15
Range Oven Light Bulb WCI-5304528790
...
23
Hinge WCI-139010303
...
29
Bumper WCI-316517601
...
37
Cooking Appliance Oven Temperature Sensor WCI-5304504897
...
39
Handle WCI-316380805
...
52
Trim WCI-5304498537
...
53
Range Oven Meat Probe Sensor WCI-5304503737
...
54
Wall Oven Meat Probe Jack Assembly WCI-139017203
...
56
Screw WCI-807286001
...
57
Wall Oven Bake Element Base WCI-5304506949
...
58E
Insulation,Bake Element ,Side WCI-5304506966
...
58D
Insulation,Bake Element ,Front WCI-5304506965
...
58C
Insulation,Oven ,Back WCI-5304506954
...
58A
Insulation WCI-139001701
...
58
Insulation,Bake Element ,Lower WCI-5304506952
...
59
Duct WCI-139027600
...
62
Range Terminal Block WCI-5304409888
...
66
Range Broil Element WCI-139028200
...
67
Wall Oven Bake Element WCI-5304506946
...
70
Range Side Insulation Heat Shield WCI-139000601
...
71
Shield WCI-139022000
...
80
Bracket WCI-139021101
...
82
Shield,Insulation ,Lower WCI-5304506947
...
83
Shield,Bake Element ,Rear WCI-5304506951
...
86
Receptacle WCI-139026900
...
87
Bracket WCI-139021900
...
88
Cover,Latch Motor WCI-5304506964
...
89
Wall Oven Door Lock Assembly WCI-5304528835
...
90
Oven Trim WCI-318903535
...
99
Range Side Panel Lower Support Bracket WCI-318256201
...
107
Cover WCI-139013902
...
108
Motor WCI-318575614
...
109
Range Convection Fan Blade WCI-318398302
...
111
Range Convection Fan Blade Nut WCI-316136600
...
119
Range High-Limit Thermostat WCI-318578506
...
125
Wall Oven Convection Fan Motor WCI-139008504
...
127
Catalyst WCI-807123502
...
131
Duct WCI-139027700
...
142
Sheild,Air Deflector ,Back WCI-5304506953
...
143
Stiffener WCI-318172904
...
161
Wall Oven Convection Element WCI-139006500
...
185
Range Spacer WCI-318531800
...
264
Wall Oven Vent Trim (Black) WCI-139003501
...
272
Tube WCI-139021700
