product name

Electrolux ECWS3011ASA Wall Oven

Model: ECWS3011ASA

Save
 Part Not Listed?Part Not Listed?
product name

Electrolux ECWS3011ASA

...
...
NI
Harness WCI-5304526698
...
NI
Wall Oven Upper Wire Harness WCI-5304514832
...
NI
Harness,Grounding Wire WCI-5304514831
...
NI
Screw WCI-5303323129
...
NI
Range Screw WCI-316021109
...
2B
Cover,Control Access WCI-5304520853
...
2A
Shield,Wire ,Top WCI-5304521623
...
19
Control Pane WCI-5304523595
...
21
Housing WCI-5304523582
...
97
Circuit Boar WCI-316472808

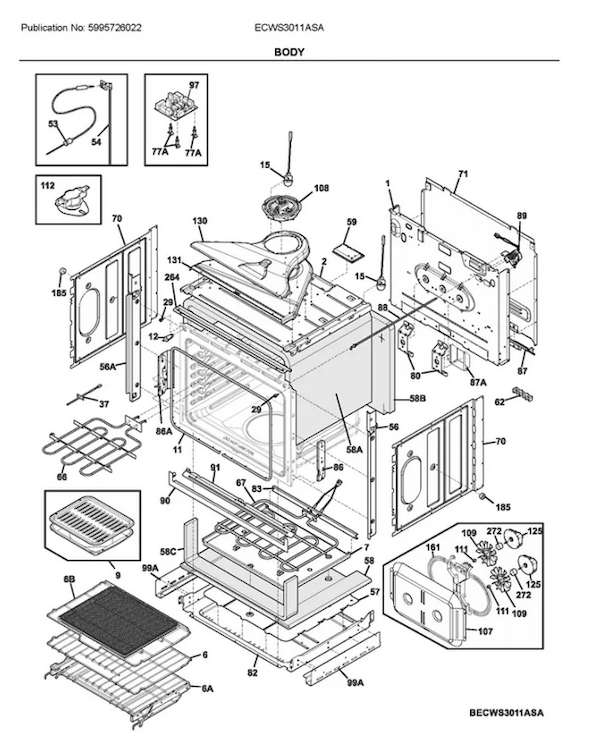

Electrolux ECWS3011ASA

...
...
NI
Screw WCI-807597603
...
NI
Harness WCI-5304523591
...
NI
Harness WCI-5304523577
...
NI
Wall Oven Wire Harness WCI-5304506984
...
NI
Screw WCI-5304470882
...
NI
Washer WCI-5304436864
...
NI
Range Surface Burner Igniter Spring WCI-5303311164
...
NI
Range Screw, #8 X 1-In WCI-5303289910
...
NI
Oven Clip WCI-318167300
...
NI
Range Screw WCI-316418900
...
NI
Range Hex Flange Nut, #10-32 X 3/8-In WCI-316205500
...
NI
Range Screw WCI-316021109
...
NI
Range Screw WCI-316001003
...
1
Panel,Main Back WCI-5304525130
...
2
Shield WCI-808651302
...
6A
Rack Assembl WCI-5304525128
...
6
Rack WCI-5304525129
...
7
Box,Bake Element WCI-5304520858
...
9
Range Broil Pan And Insert WCI-5304494997
...
11
Wall Oven Door Seal WCI-139036700
...
12
Range Oven Door Switch WCI-808136601
...
15
Range Oven Light Bulb WCI-5304528790
...
29
Range Door Bumper WCI-316517600
...
37
Cooking Appliance Oven Temperature Sensor WCI-5304504897
...
53
Range Oven Meat Probe Sensor WCI-5304504202
...
54
Wall Oven Meat Probe Jack Assembly WCI-139017203
...
56
Trim WCI-5304500598
...
56A
Trim WCI-5304500597
...
57
Sheild,Air Wash ,Lower WCI-5304521752
...
58C
Insulation WCI-807887503
...
58B
Insulation WCI-808905101
...
58A
Insulation,Oven Wrapper WCI-808905502
...
58
Insulation WCI-808816501
...
59
Vent Box Assembly WCI-808931401
...
62
Range Terminal Block WCI-5304409888
...
66
Element,Broil ,6 Pass ,4000W WCI-5304514924
...
67
Element,Hidden Bake ,2200W WCI-5304516286
...
70
Range Side Insulation Heat Shield WCI-139000601
...
71
Shield WCI-808650302
...
77A
Range Power Control Board Support WCI-316114100
...
80
Bracket WCI-139021101
...
82
Shield WCI-5304522581
...
83
Shield,Bake Tray ,Rear WCI-5304520860
...
86
Receptacle WCI-808930501
...
86A
Receptacle,Hinge ,W/Damper ,Soft Close WCI-807418503
...
87A
Shield,Terminals ,Bake Element WCI-5304520866
...
87
Bracket,Cable Box WCI-5304520557
...
88
Rod WCI-808721601
...
89
Range Oven Door Lock Motor WCI-5304528925
...
90
Trim WCI-5304523579
...
91
Wall Oven Vent Trim, Lower WCI-5304518870
...
97
Pc Board WCI-5304523590
...
99A
Support,Floor WCI-5304514974
...
107
Cover WCI-5304500627
...
108
Wall Oven Cooling Fan Assembly WCI-5304528825
...
109
Range Convection Fan Blade WCI-318398302
...
111
Range Convection Fan Blade Nut WCI-316136600
...
112
Wall Oven Safety Thermostat WCI-318578509
...
125
Wall Oven Convection Fan Motor WCI-139008504
...
130
Duct,Cooling Fan ,Upper WCI-808651606
...
131
Duct WCI-808651702
...
161
Element WCI-5304500622
...
185
Range Spacer WCI-318531800
...
264
Oven Trim WCI-5304500596
...
272
Tube WCI-139021700

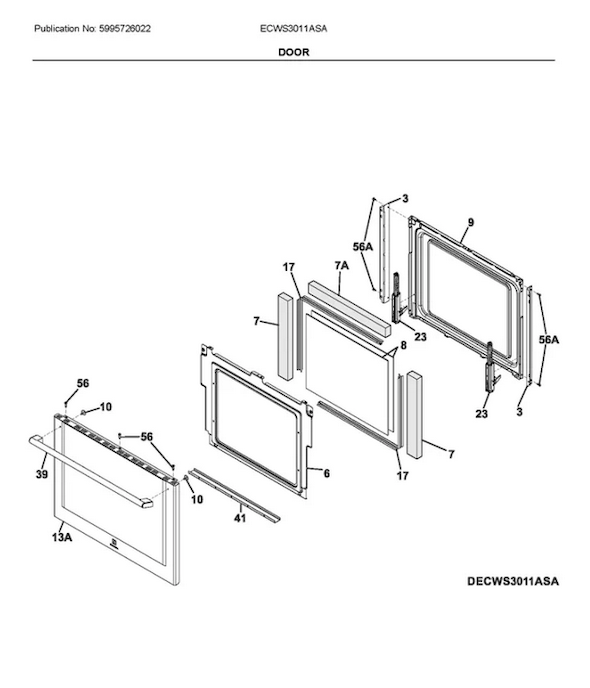

Electrolux ECWS3011ASA

...
...
NI
Range Screw WCI-316021109
...
NI
Range Screw WCI-316418900
...
3
Wall Oven Door Trim WCI-5304520787
...
6
Range Oven Door Heat Shield WCI-808474502
...
7A
Insulation WCI-5304505925
...
7
Insulation WCI-807887502
...
8A
Glass WCI-316502506
...
8
Glass WCI-316502505
...
9
Liner WCI-808474610
...
10
Screw WCI-316439510
...
13A
Door Assembl WCI-5304523587
...
17
Range Oven Door Middle Glass Spacer WCI-5304503172
...
23
Hinge WCI-808930403
...
39
Handle WCI-5304523585
...
41
Support WCI-5304500644
...
56
Range Screw WCI-316021109
...
56A
Range Screw WCI-5303324184
...
...
...
