product name

Electrolux ECWM3011ASA Wall Oven-Microwave Combo

Model: ECWM3011ASA

Save
 Part Not Listed?Part Not Listed?
product name

Electrolux ECWM3011ASA

...
...
NI
Range Hex Flange Nut, #10-32 X 3/8-In WCI-316205500
...
NI
Oven Clip WCI-318167300
...
NI
Range Screw WCI-316021109
...
NI
Screw WCI-5304470882
...
NI
Range Screw WCI-316001003
...
NI
Range Screw WCI-316418900
...
NI
Range Screw, #8 X 1-In WCI-5303289910
...
NI
Range Surface Burner Igniter Spring WCI-5303311164
...
NI
Washer WCI-5304436864
...
NI
Wall Oven Wire Harness WCI-5304506984
...
NI
Harness WCI-5304525132
...
NI
Harness WCI-5304525133
...
NI
Screw WCI-807597603
...
1
Panel,Main Back WCI-5304525130
...
2
Shield WCI-808651302
...
6
Rack WCI-5304525129
...
6A
Rack Assembl WCI-5304525128
...
7
Box,Bake Element WCI-5304520858
...
9
Range Broil Pan And Insert WCI-5304494997
...
11
Wall Oven Door Seal WCI-139036700
...
12
Range Oven Door Switch WCI-808136601
...
15
Range Oven Light Bulb WCI-5304528790
...
29
Range Door Bumper WCI-316517600
...
37
Cooking Appliance Oven Temperature Sensor WCI-5304504897
...
53
Range Oven Meat Probe Sensor WCI-5304504202
...
54
Wall Oven Meat Probe Jack Assembly WCI-139017203
...
56
Trim WCI-5304525149
...
56A
Trim WCI-5304525148
...
57
Sheild,Air Wash ,Lower WCI-5304521752
...
58
Insulation WCI-808816501
...
58A
Insulation,Oven Wrapper WCI-808905502
...
58B
Insulation WCI-808905101
...
58C
Insulation WCI-807887503
...
59
Vent Box Assembly WCI-808931401
...
62
Range Terminal Block WCI-5304409888
...
66
Element,Broil ,6 Pass ,4000W WCI-5304514924
...
67
Element,Hidden Bake ,2200W WCI-5304516286
...
70
Range Side Insulation Heat Shield WCI-139000601
...
71
Shield WCI-808650302
...
77A
Range Power Control Board Support WCI-316114100
...
80
Bracket WCI-139021101
...
82
Shield WCI-5304522581
...
83
Shield,Bake Tray ,Rear WCI-5304520860
...
86
Receptacle WCI-808930501
...
86A
Receptacle,Hinge ,W/Damper ,Soft Close WCI-807418503
...
87
Bracket,Cable Box WCI-5304520557
...
87A
Shield,Terminals ,Bake Element WCI-5304520866
...
88
Rod WCI-808721601
...
89
Range Oven Door Lock Motor WCI-5304528925
...
90
Trim WCI-5304523579
...
91
Wall Oven Vent Trim, Lower WCI-5304518870
...
97
Pc Board WCI-5304523590
...
99A
Support,Floor WCI-5304514974
...
107
Cover WCI-5304500627
...
108
Motor Assemb WCI-5304525125
...
109
Range Convection Fan Blade WCI-318398302
...
111
Range Convection Fan Blade Nut WCI-316136600
...
112
Range Thermal Cut-Off WCI-5304494446
...
125
Wall Oven Convection Fan Motor WCI-139008504
...
130
Bracket WCI-5304525136
...
131
Duct WCI-5304525126
...
161
Element WCI-5304500622
...
185
Range Spacer WCI-318531800
...
264
Trim WCI-5304525124
...
272
Tube WCI-139021700

Electrolux ECWM3011ASA

...
...
NI
Harness WCI-5304528839
...
NI
Range Screw WCI-316001003
...
NI
Range Screw WCI-316021109
...
NI
Screw WCI-5303323129
...
NI
Harness WCI-5304525141
...

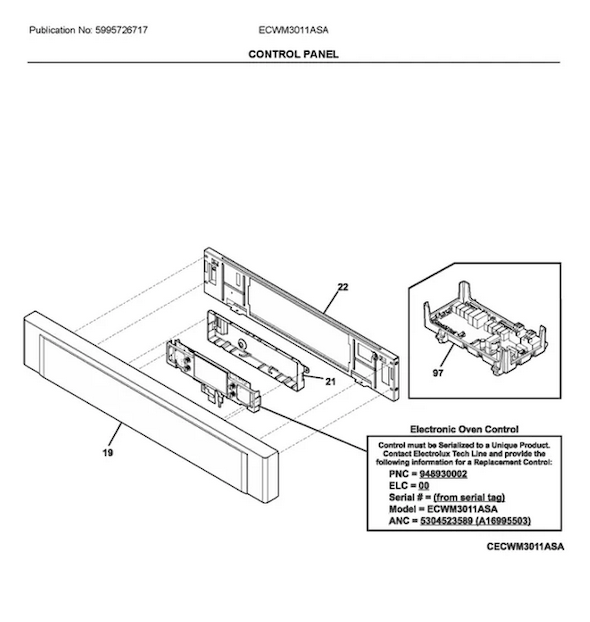

19
Control Pane WCI-5304525152
...
21
Housing WCI-5304523582
...
22
Bracket WCI-A16358901
...
97
Circuit Boar WCI-316472809

Electrolux ECWM3011ASA

...
...
NI
Wall Oven Microwave Wire Harness WCI-A17118003
...
NI
Wall Oven Microwave Wire Harness WCI-A17118006
...
NI
Wall Oven Microwave Wire Harness WCI-A17118014
...
NI
Wall Oven Microwave Wire Harness WCI-A17118016
...
NI
Wall Oven Microwave Wire Harness WCI-A17118021
...
NI
Screw Kit(4) WCI-405522329
...
NI
Range Screw WCI-316021109
...
NI
Screw(11) WCI-349475501
...
NI
Screw(9) WCI-387854510
...
NI
Clip Kit(11) WCI-5029617300
...
NI
Cooking Appliance Sensor WCI-555031101
...
NI
Nut WCI-561045004
...
1
Panel WCI-555010801
...
2
Base WCI-A19743502
...
3
Panel WCI-A18591502
...
4
Support WCI-A13873001
...
5
Housing WCI-A05908717
...
10
Thermostat WCI-A01802605
...
11
Cooking Appliance Cooling Fan WCI-A18653201
...
12
Duct WCI-A13630003
...
14
Lamp Assy WCI-A15722702
...
15
Mnt Plate,Ba WCI-A00843201
...
16
Element WCI-A08934211
...
17
Bracket WCI-A13375801
...
18
Element WCI-A08933932
...
19
Motor WCI-555027103
...
20
Shield WCI-555033100
...
21
Pin WCI-808373901
...
22
Support WCI-A18262002
...
23
Washer WCI-A19949501
...
24
Fan Blade WCI-555023101
...
25
Nut WCI-561231207
...
26
Cover WCI-A07296807
...
27
Cover WCI-A16295701
...
28
Motor WCI-A13805506
...
29
Gasket WCI-807177101
...
30
Sup Hinge L WCI-387886701
...
31
Sup Hinge R WCI-387886702
...
32
Magnetron WCI-555030400
...
33
Sensor WCI-555044200
...
34
Transformer WCI-555030502
...
35
Capacitor WCI-315795903
...
36
Diode WCI-555042802
...
39
Filter WCI-A20022801
...
40
Pc Board WCI-A18493801
...
42
Clip(4) WCI-330647300
...
43
Clip WCI-330647301
...
44
Wall Oven Microwave Fuse And Holder WCI-318647300
...
45
Holder Cable WCI-387963800
...
46
Interlock L WCI-A16919201
...
47
Interlock R WCI-A16919301
...
48
Filler Brack WCI-5304525122
...
49
Support Plat WCI-5304525135
...
50
Bracket WCI-5304525150
...
51
Bracket WCI-5304525151
...
52
Cover WCI-5304525134
...
54
Cover WCI-5304525138
...
56
Coupler WCI-A15654501
...
57
Roller Assy WCI-A13881201
...
58
Tray WCI-A13804901
...
59
Microwave Tu WCI-A18994801

Electrolux ECWM3011ASA

...
...
NI
Range Screw WCI-316418900
...
NI
Screw(8) WCI-349479701
...
NI
Range Screw WCI-316021109
...
1
Door Glass WCI-555118433
...
2
Spacer WCI-330158601
...
3
Wall Oven Door Trim WCI-5304520787
...
4
Door Frame WCI-561626486
...
5
Glass WCI-807625502
...
5A
Glass WCI-555033602
...
6
Range Oven Door Heat Shield WCI-808474502
...
7
Insulation WCI-807887502
...
7A
Insulation WCI-5304505925
...
8
Glass WCI-316502505
...
8A
Glass WCI-316502506
...
9
Liner WCI-808474610
...
10
Range Screw WCI-5303310510
...
10A
Screw WCI-316439510
...
11
Cover WCI-A06645500
...
12
Inner Door WCI-555040920
...
13
Door Assembl WCI-5304525144
...
13A
Door Assembl WCI-5304523587
...
14
Gasket WCI-808082001
...
15
Tape WCI-808140001
...
16
Cover WCI-5304525161
...
17
Range Oven Door Middle Glass Spacer WCI-5304503172
...
18
Cover WCI-5304525157
...
19
Cover WCI-5304525158
...
20
Stopper WCI-5304525159
...
21
Stopper WCI-5304525160
...
23
Hinge WCI-A06683602
...
23A
Hinge WCI-808930403
...
39
Handle WCI-5304523585
...
41
Support WCI-5304500644
...
56
Range Screw WCI-316021109
...
56A
Range Screw WCI-5303324184
...
...
...
