Echo SV-6/1 S/N: 36001001 - 36999999 Lawn Mower

Model: SV-6/1 S/N: 36001001 - 36999999

Save Part Not Listed?
product name

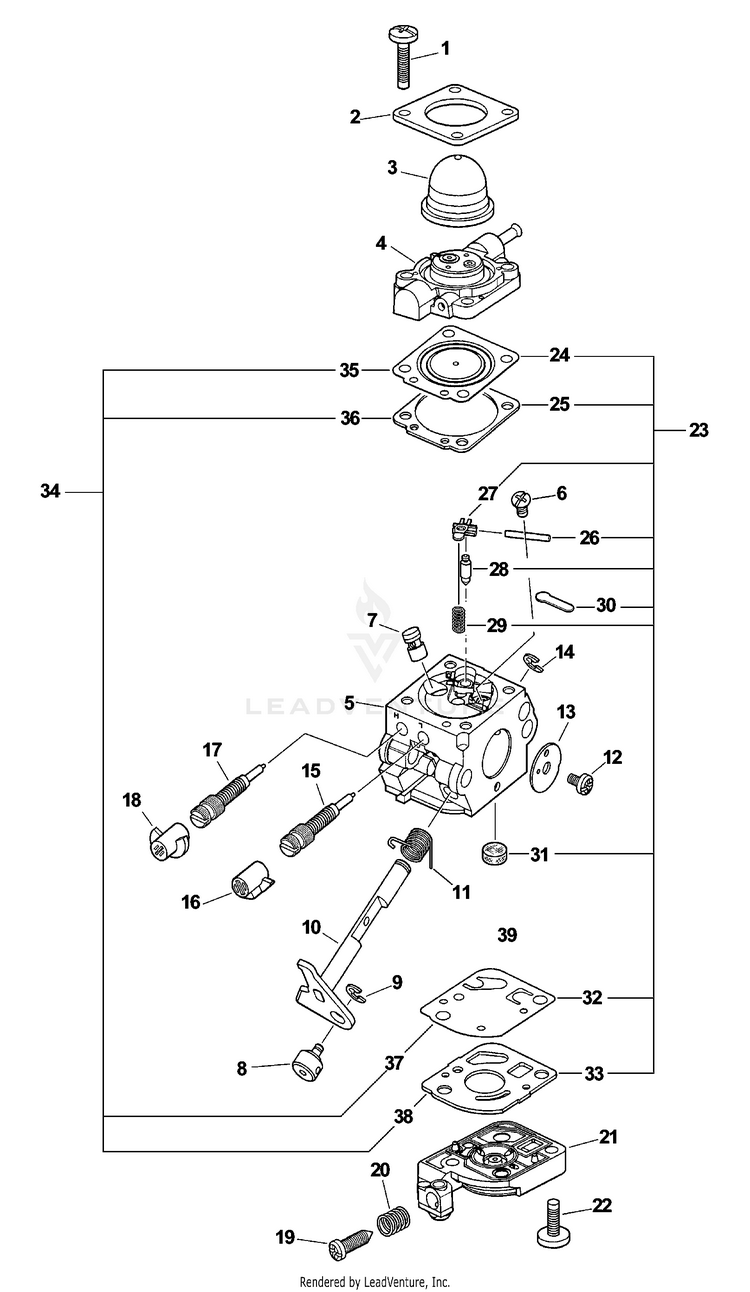

Carburetor -- C1U-K54A

...
...
xx
CARBURETOR, SV-5H LW 2020 ECH-12520013129
...
1
SCREW ECH-P005000980
...
2
RETAINER, PURGE BULB ECH-P005000620
...
3
BULB, PURGE ECH-P005003120
...
4
BODY ASSY, PURGE ECH-P005000970
...
5
BODY, CARBURETOR NOT AVAILABLE SEPARATELY ECH---
...
6
SCREW ECH-12533942030
...
7
NOZZLE, CHECK VALVE ECH-12537613120
...
8
SWIVEL ECH-12537242030
...
9
CLIP ECH-125327-13930
...
10
SHAFT ASSY, THROTTLE ECH-P005001070
...
11
SPRING, THROTTLE RETURN ECH-12531342030
...
12
SCREW ECH-12531413930
...
13
VALVE, THROTTLE ECH-12531649030
...
14
E-RING ECH-12532715130
...
15
NEEDLE, MIXTURE ECH-12531813120
...
16
CAP, LIMITER - WHITE ECH-12532909860
...
17
NEEDLE, HIGH SPEED ECH-12532013310
...
18
CAP, LIMITER - RED ECH-12532939030
...
19
SCREW, THROTTLE ADJUST ECH-12533406960
...
20
SPRING ECH-12533306960
...
21
COVER, FUEL PUMP ECH-12532412820
...
22
SCREW ECH-12531012820
...
23
REBUILD KIT INCLUDES ITEMS 24-33 ECH-12530012820
...
24
DIAPHRAGM, METERING ECH---
...
25
GASKET, METERING ECH---
...
26
PIN, METERING LEVER ECH---
...
27
LEVER, METERING ECH---
...
28
VALVE, INLET NEEDLE ECH---
...
29
SPRING, METERING LEVER ECH---
...
30
PLUG, WELCH ECH---
...
31
STRAINER ECH---
...
32
DIAPHRAGM, PUMP ECH---
...
33
GASKET, PUMP ECH---
...
34
GASKET / DIAPHRAGM KIT INCLUDES ITEMS 35-38 ECH-12530320560
...
35
DIAPHRAGM, METERING ECH---
...
36
GASKET, METERING ECH---
...
37
DIAPHRAGM, PUMP ECH---
...
38
GASKET, PUMP ECH---

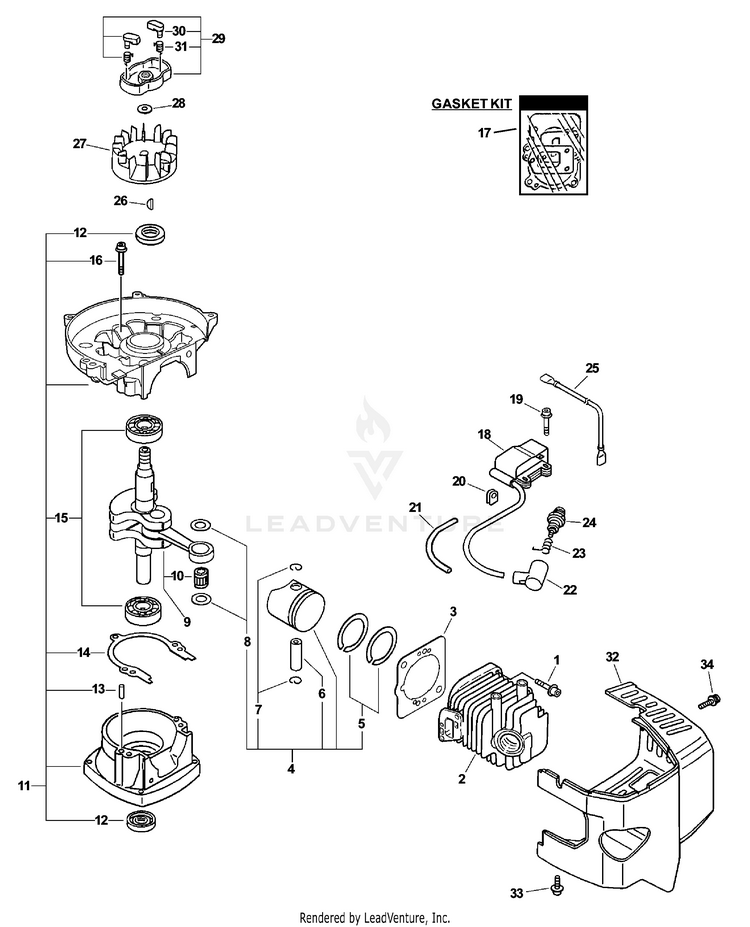

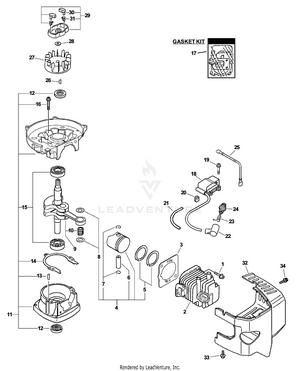

Engine, Ignition, Starter Pawl Asy, Cylinder Cover

...
...
1
BOLT 5x22 ECH-90016205022
...
2
CYLINDER ECH-A130000531
...
3
GASKET, CYLINDER Included In GASKET KIT ECH-V100000080
...
4
PISTON KIT INCLUDES ITEMS 5-8 ECH-P021001102
...
5
RING, PISTON ECH-A101000000
...
6
PIN, PISTON 8 ECH-10001311520
...
7
RING, SNAP ECH-10001504630
...
8
WASHER, THRUST ECH-10001411520
...
9
CRANKSHAFT ASSY Includes ITEM 10 ECH-A011000271
...
10
BEARING, NEEDLE 8 ECH-V553000010
...
11
CRANKCASE KIT Includes ITEMS 12-16 ECH-10020411521
...
12
SEAL, OIL 12 ECH-10021242031
...
13
PIN, LOCATING 4 ECH-V622000020
...
14
GASKET, CRANKCASE Included In GASKET KIT ECH-10024242030
...
15
BEARING, BALL 6201 ECH-9403536201
...
16
BOLT 5x28 ECH-90016205028
...
17
GASKET KIT ECH-P021006193
...
18
COIL, IGNITION ECH-A411000171
...
19
BOLT 4x20 ECH-90016204020
...
20
GROMMET ECH-15611004920
...
21
TUBE, INSULATOR ECH-V475002200
...
22
CAP, SPARK PLUG ECH-15901201620
...
23
TERMINAL, SPARK PLUG ECH-15901103432
...
24
SPARK PLUG - BPMR7A ECH-15901010230
...
25
LEAD - IGNITION ECH-V485000450
...
26
KEY, WOODRUFF ECH-61032502730
...
27
FLYWHEEL ECH-A409000150
...
28
WASHER, SPRING 8 ECH-90060500008
...
29
PAWL ASSY, STARTER INCLUDES ITEMS 30-31 ECH-17720212220
...
30
PAWL, STARTER - BLACK ECH-17721844330
...
31
SPRING, RETURN ECH-17723412220
...
32
COVER, ENGINE ECH-P021006161
...
33
SCREW 4x18 ECH-90023804018
...
34
BOLT 4x8 ECH-9110704008

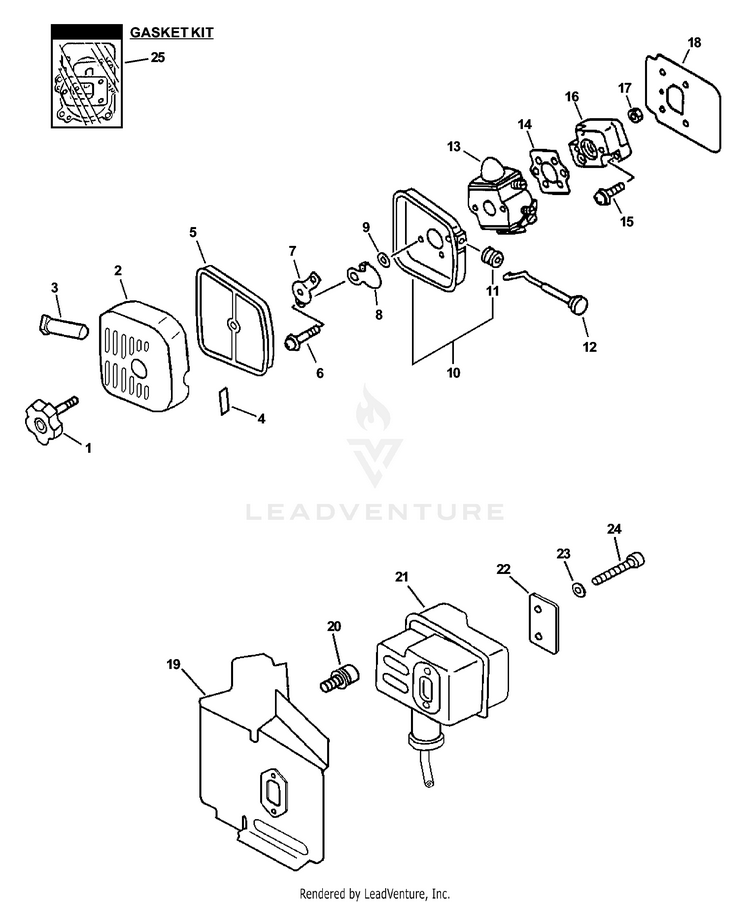

Intake, Exhaust

...
...
1
THUMBSCREW ECH-13040652131
...
2
LID, CLEANER ECH-A232000042
...
3
PLUG ECH-V141000010
...
4
LABEL - CHOKE ECH-X506000070
...
5
FILTER, AIR - HEAVY DUTY ECH-13031051830
...
6
SCREW 5x57 ECH-90024205057
...
7
PLATE, PREVENT ECH-12901152131
...
8
SHUTTER, CHOKE ECH-17851505060
...
9
WASHER 5.2x8x0.8T ECH-17851600830
...
10
AIR CLEANER CASE ASSY Includes ITEM 11 ECH-P100002340
...
11
GROMMET, CHOKE ECH-17881005230
...
12
ROD, CHOKE ECH-17851051730
...
13
CARBURETOR, SV-5H LW 2020 ECH-12520013129
...
14
GASKET, INTAKE Included In GASKET KIT ECH-13001642031
...
15
SCREW 5x20 ECH-90023805020
...
16
INSULATOR, INTAKE Included In GASKET KIT ECH-13001742031
...
17
NUT M5 ECH-90050000005
...
18
HEAT SHIELD, INTAKE Included In GASKET KIT ECH-V103001360
...
19
HEAT SHIELD, EXHAUST Included In GASKET KIT ECH-V104000410
...
20
BOLT 4x8 ECH-9110704008
...
21
MUFFLER ASSY ECH-A300000411
...
22
PLATE, EYE ECH-V150000371
...
23
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
24
SCREW - 5x70 ECH-90010505070
...
28
GASKET KIT ECH-P021006193

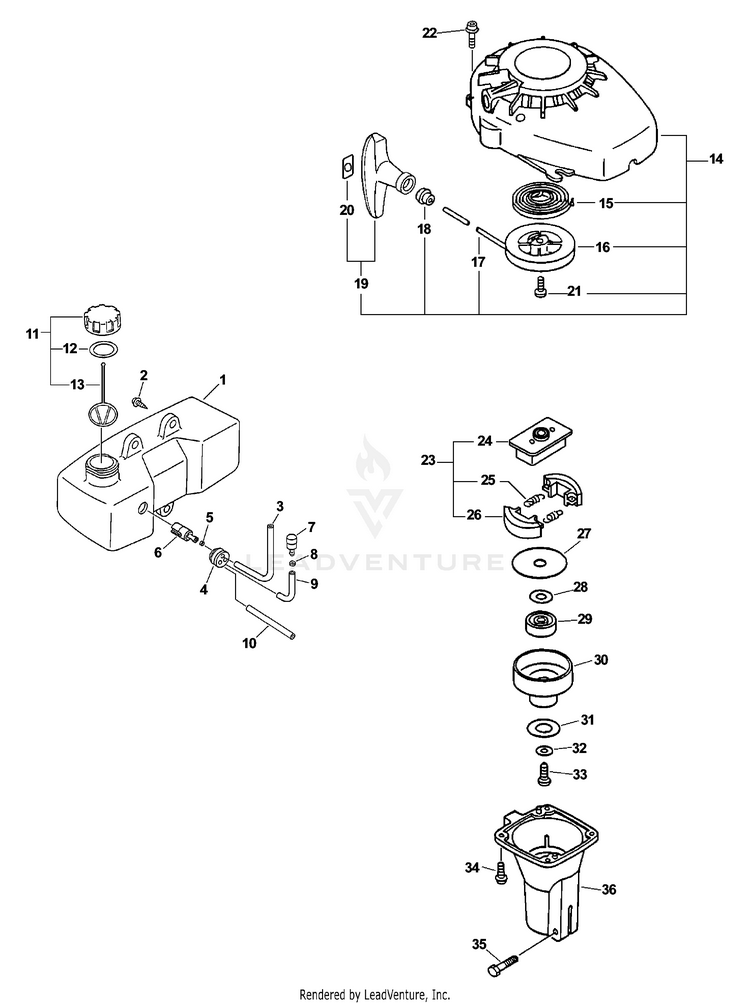

Starter, Clutch, Fuel System

...
...
1
TANK ASSY, FUEL ECH-A350000300
...
2
SCREW 5x15 ECH-90027505015
...
3
PIPE, FUEL 3x5x210 BLACK RePower BULK OPTION: 90014 ECH-V471001231
...
4
GROMMET, FUEL 5 ECH-13211546730
...
5
CLIP 6 MM ECH-13201309820
...
6
FILTER, FUEL ECH-A369000480
...
7
VENT ASSY ECH-A356000031
...
8
CLIP 5.5 ECH-13011100530
...
9
PIPE, FUEL RePower BULK OPTION: 90014 ECH-V471-001200
...
10
PIPE, RETURN, FUEL, 3X6X52 RePower BULK OPTION: 90017 ECH-V471006130
...
11
FUEL CAP ASSY Includes ITEMS 12-13 ECH-P100006610
...
12
GASKET, FUEL CAP ECH-V107000230
...
13
CONNECTOR, CAP L= 100 MM ECH-13105156030
...
14
STARTER ASSY Includes ITEMS 15-21 ECH-A051000950
...
15
SPRING, RECOIL ECH-P022019680
...
16
REEL, ROPE ECH-17721544430
...
17
ROPE, STARTER RePower BULK OPTION: 99944440000 ECH-P022006800
...
18
GUIDE, ROPE ECH-17722742030
...
19
GRIP, STARTER ECH-17722811120
...
20
RETAINER, ROPE ECH-P022037670
...
21
SCREW ECH-17723644330
...
22
SCREW 4x16 ECH-90023804016
...
23
CLUTCH ASSY INCLUDES ITEMS 24-26 ECH-17500007531
...
24
HUB, CLUTCH ECH-17501605020
...
25
SPRING, CLUTCH ECH-17501805130
...
26
SHOE, CLUTCH ECH-17500905131
...
27
PLATE, CLUTCH ECH-17501904630
...
28
WASHER 10.5x18x1.6 ECH-90060000010
...
29
BEARING, BALL 6000-2RLB ECH-90080836000
...
30
DRUM, CLUTCH ECH-17501004635
...
31
SPACER ECH-17504404630
...
32
WASHER, CLUTCH ECH-17501411520
...
33
SCREW 6x12 ECH-90023806012
...
34
SCREW 4x14 ECH-90023804014
...
35
BOLT 5 ECH-13041611520
...
36
CASE, CLUTCH ECH-61022311520
