Echo ST-5000 Type 1E -- 1998 Model Snow Thrower

Model: ST-5000 Type 1E -- 1998 Model

Save Part Not Listed?
product name

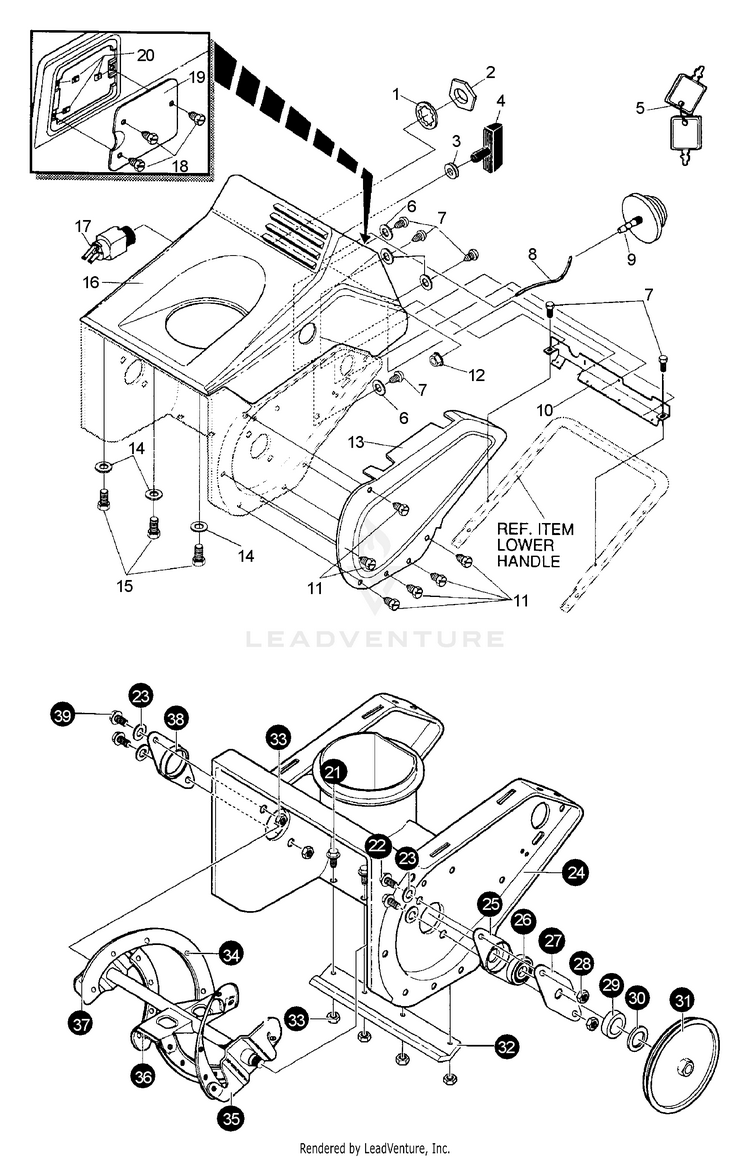

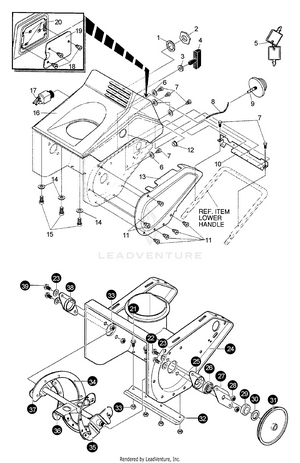

Belt Cover, Auger Housing

...
...
1
WASHER ECH-14138557
...
2
NUT ECH-14048140
...
3
GUIDE, ROPE ECH-14057587
...
4
KNOB, TEE ECH-14333643
...
5
KEYS & RING ASSY ECH-14049643
...
6
WASHER ECH-14303041
...
7
SCREW - 10-24x0.63" - PAN HEAD ECH-14309814
...
8
HOSE ECH-14001259
...
9
PRIMER, ENGINE 2CY ECH-14054601
...
10
BRACKET ECH-14307469
...
11
SCREW 10-24x38 ECH-14035258
...
12
NUT ECH-14303008
...
13
COVER, BELT ECH-14302416
...
14
WASHER ECH-14120385
...
15
SCREW ECH-14309813
...
16
COVER ECH-14307468
...
17
SWITCH, IGNITION ECH-14056992
...
18
SCREW ECH-14312362
...
19
DOOR, ACCESS ECH-14307470
...
20
NUT ECH-14309811
...
21
SCREW 1/4"-20x0.63 ECH-14055686
...
22
SCREW 1/4 20x.75 IN ECH-14302628
...
23
WASHER ECH-14120392
...
24
AUGER INTAKE ASSY - 21" ECH-14340381
...
25
RETAINER, BEARING ECH-14580251
...
26
BEARING, BALL ECH-14049562
...
27
RETAINER, BEARING ECH-14334287
...
28
NUT, 1/4"-20 ECH-14001502
...
29
SPACER, SLEEVE 0.640x0.88x0.15 ECH-14578101
...
30
WASHER, FLAT ECH-14040677
...
31
PULLEY ECH-14333446
...
32
BLADE, SCRAPER ECH-14302418
...
33
NUT, 1/4"-20 ECH-14046931
...
34
RIVET, 0.250x.5 IN. ECH-14049838
...
35
AUGER ASSY - 21" ECH-14309376
...
36
CENTER, AUGER BLADE ECH-14335992
...
37
AUGER, BLADE STRIP ECH-14302565
...
38
BEARING, FLANGE ECH-14577023
...
39
SCREW 1/4"-20x0.88 ECH-14180021

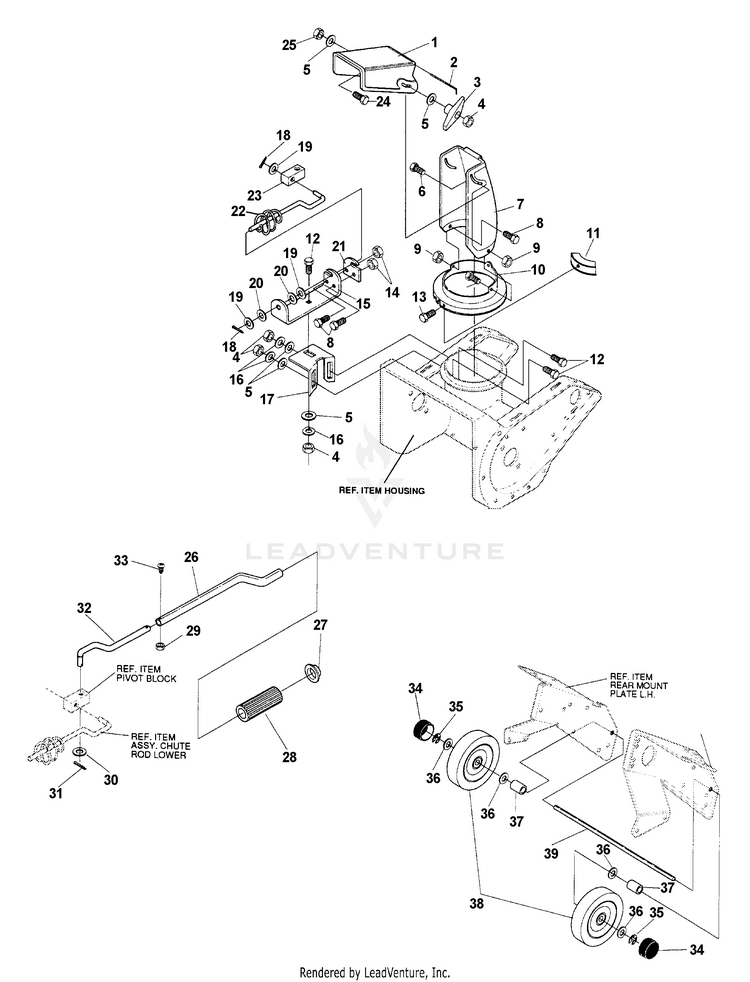

Chute, Chute Control, Wheel Assembly

...
...
1
CHUTE, UPR SRS W/OHKLE ECH-14325847
...
2
WIRE, HINGE 6.65 LONG SR ECH-14308931
...
3
KNOB, T 2 BLADE W/5/16-18 NUT ECH-14013527
...
4
NUT ECH-14120376
...
5
WASHER ECH-14120393
...
6
BOLT 5/16"-18x1.25" CARRLN ECH-14302842
...
7
CHUTE, LWR ECH-14334234
...
8
SCREW 1/4"-20x0.50 ECH-14180016
...
9
NUT, 1/4"-20 ECH-14046931
...
10
RING, LWR CHUTE ECH-14307842
...
11
CLIP, CHUTE RING NYLON ECH-14300790
...
12
BOLT, CARRIAGE 5/16-18x0.75 ECH-14070993
...
13
SCREW 1/4"-14x0.63 ECH-14056962
...
14
NUT, 1/4"-20 ECH-14001502
...
15
BRACKET, CHUTE ROD ECH-14300728
...
16
WASHER ECH-14120638
...
17
BRACKET, WORM ADJUST ECH-14302505
...
18
PIN - COTTER ECH-14121222
...
19
WASHER - 0.40x0.75x0.025" ECH-14012452
...
20
WASHER, SADDLE ECH-14313431
...
21
PLATE, CHUTE ROD ECH-14307741
...
22
ROD ASSY, CHUTE CONTROL LOWER ECH-14307742
...
23
BLOCK, PIVOT NYLON ECH-14051564
...
24
SCREW 5/16"-18 ECH-14578088
...
25
NUT, 5/16"-18 ECH-14001498
...
26
ROD, UPPER CHUTE CONTROL ECH-14309449
...
27
NUT, PUSH, FITS 3/8 DIA ECH-14331532
...
28
KNOB ECH-14307755
...
29
NUT ECH-14314159
...
30
WASHER - 0.40x0.75x0.025" ECH-14012452
...
31
PIN - COTTER ECH-14121222
...
32
ROD, CHUTE CONTROL MIDDLE ECH-14307756
...
33
SCREW 010-32x0.88 ECH-14314158
...
34
HUB CAP 3/20 ECH-14577037
...
35
E-RING ECH-14577598
...
36
WASHER ECH-14120394
...
37
SPACER ECH-14309656
...
38
WHEEL ASSY ECH-14325016
...
39
SHAFT, AXLE 5/21 ECH-14307719

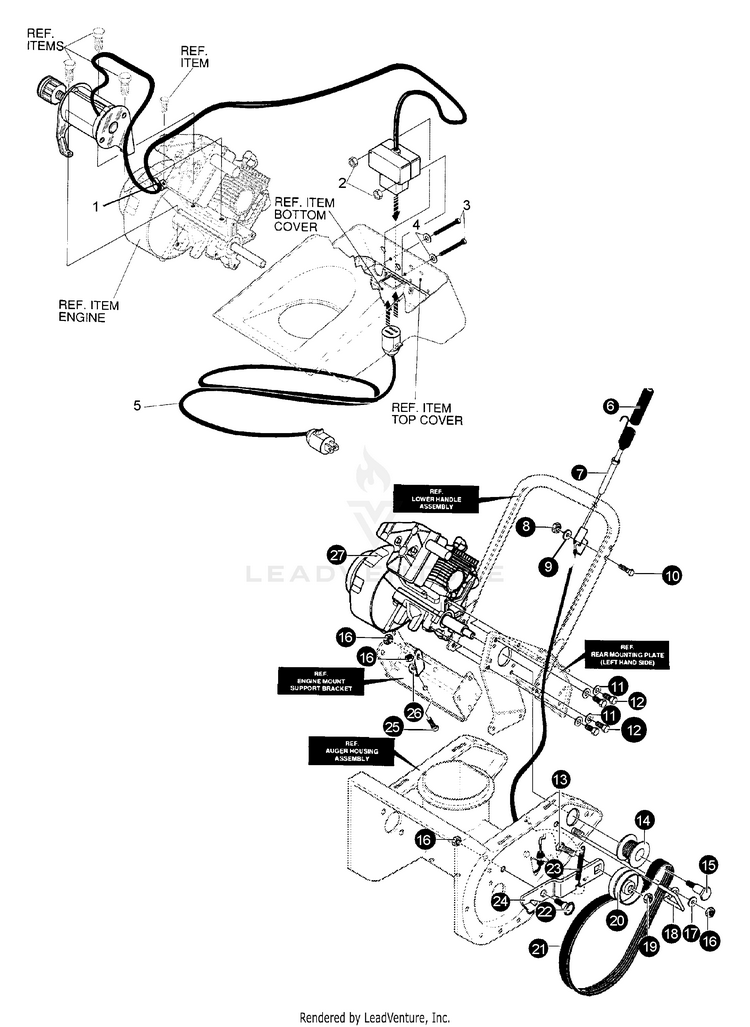

Electrical, Drive Belt, Idler Pulley

...
...
1
RETAINER, WIRE ECH-14057569
...
2
NUT - 8-32 - KEPS ECH-14271163
...
3
SCREW - 8-32x3.00" ECH-14311633
...
4
WASHER - 0.188x0.38x0.040" ECH-14414106
...
5
CORD, EXTENSION 10 FEET ECH-14056023
...
6
COVER ECH-14314142
...
7
CABLE, DRIVE CONTROL ECH-14320529
...
8
NUT, 1/4"-20 ECH-14001502
...
9
WASHER ECH-14120392
...
10
SCREW ECH-14070971
...
11
WASHER ECH-14120638
...
12
SCREW 5/16"-18x0.75 ECH-14180077
...
13
BOLT, 3/8-16x1.50 CARRSN ECH-14045892
...
14
PULLEY, 4.5 HP ECH-14333784
...
15
BOLT, SHOULDER 0.625x0.282 ECH-14333805
...
16
NUT, 5/16"-18 ECH-14001498
...
17
WASHER, FLAT 0.312x0.73x0.065 ECH-14120386
...
18
GUIDE, BELT 21" ECH-14340428
...
19
LOCKNUT - 3/8-16 ECH-14041529
...
20
PULLEY, IDLER BB 1.88 OD ECH-14048924
...
21
BELT, 10 RIB ECH-14333721
...
22
BOLT, 0.500x0.177 HHSH 5/16-18 ECH-14333594
...
23
SPRING, IDLER BRAKE ECH-14339017
...
24
BRACKET, IDLER ARM ECH-14339415
...
25
SCREW - 5/16-18 X0.50" - HEX HEAD CAP ECH-14180073
...
26
SUPPORT, ENGINE ECH-14301415
...
------------------
ENGINE - 5 HP SEE ENGINE MANUAL ECH---

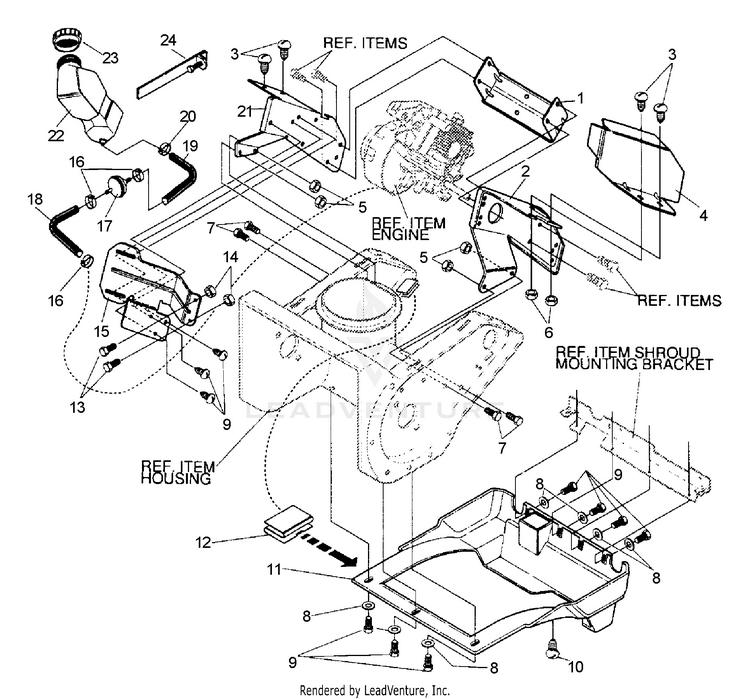

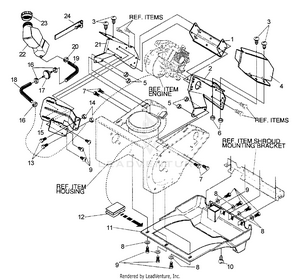

Frame Components

...
...
1
SUPPORT, FRAME ECH-14301419
...
2
PLATE, REAR MOUNT - LEFT ECH-14301421
...
3
SCREW - 1/4-20x0.63" ECH-14318139
...
4
SHIELD, HEAT ECH-14311738
...
5
NUT, 5/16"-18 ECH-14001498
...
6
NUT, 1/4"-20 ECH-14046931
...
7
SCREW - 5/16-18 X0.50" - HEX HEAD CAP ECH-14180073
...
8
WASHER ECH-14303041
...
9
SCREW - 10-24x0.63" - PAN HEAD ECH-14309814
...
10
SCREW - 10-16x0.50" ECH-14057366
...
11
COVER, BOTTOM ECH-14302287
...
12
CLIP ECH-14313057
...
13
SCREW - 10x24x0.50" - HEX HEAD MACHINE ECH-14274707
...
14
NUT ECH-14997316
...
15
BRACKET, FUEL TANK ECH-14307724
...
16
CLAMP, HOSE ECH-14323387
...
17
FILTER ECH-14056679
...
18
TUBING, GAS LINE 30" ECH-14323395
...
19
TUBING, GAS LINE 8" ECH-14323363
...
20
CLAMP, HOSE ECH-14047345
...
21
PLATE, REAR MOUNT - RIGHT ECH-14301420
...
22
TANK, FUEL ECH-14326142
...
23
CAP, FUEL ECH-14327018
...
24
CLAMP, WORM DRIVE ECH-14311671

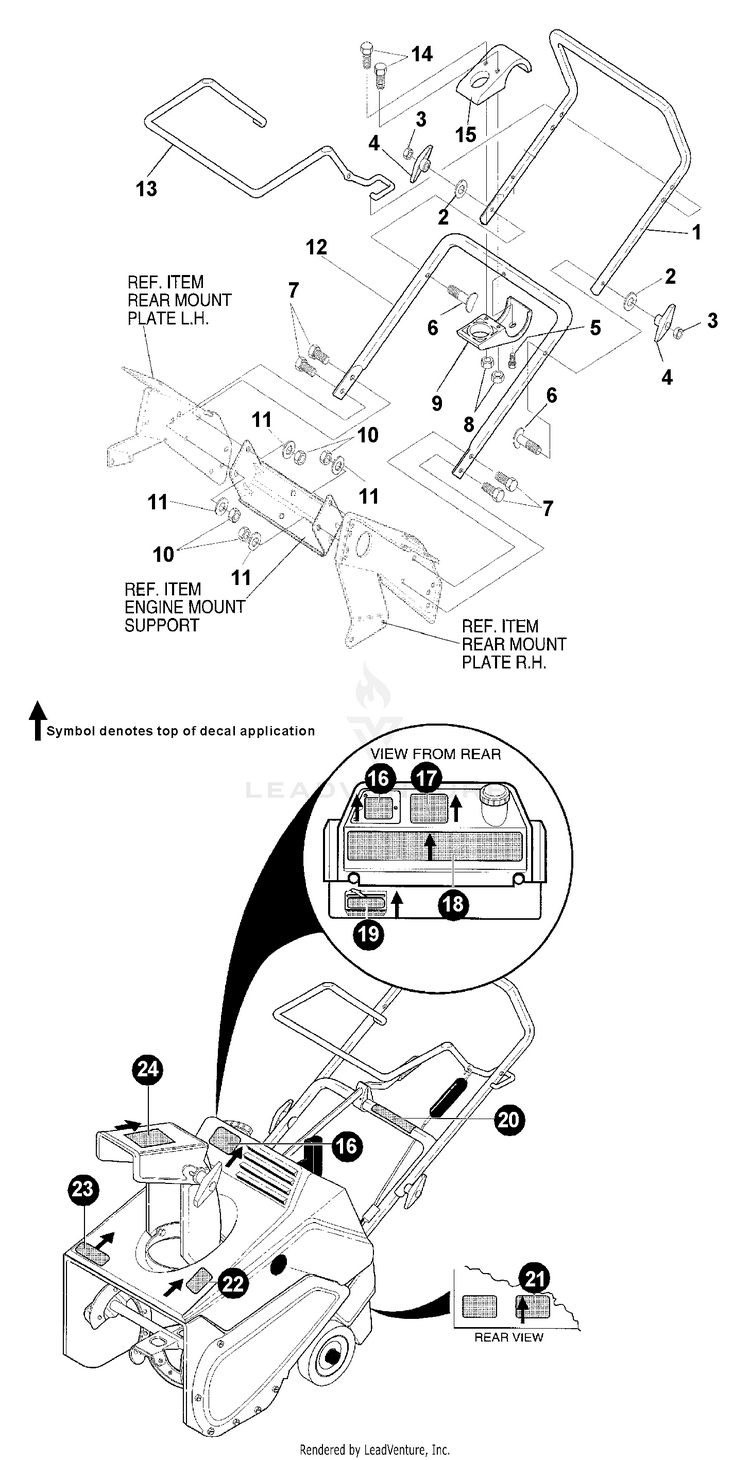

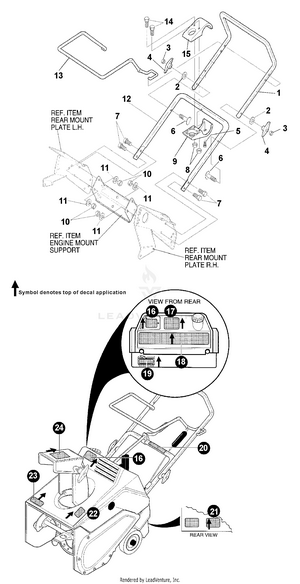

Handle Assembly, Decals

...
...
1
HANDLE, UPPER ECH-14337408
...
2
WASHER ECH-14022025
...
3
NUT ECH-14120376
...
4
KNOB, T 2 BLADE W/5/16-18 NUT ECH-14013527
...
5
SCREW 1/4"-20x0.63 ECH-14310169
...
6
BOLT, 5/16-18x2.00 ECH-14337584
...
7
SCREW 5/16"-18x0.75 ECH-14180077
...
8
NUT, 10-24 ECH-14071055
...
9
BRKT HALF, CHUTE CRANK ECH-14308716
...
10
NUT, 5/16"-18 ECH-14001498
...
11
WASHER ECH-14120393
...
12
HANDLE, LOWER ECH-14309964
...
13
BAR, DRIVE CONTROL LOOP ECH-14302417
...
14
SCREW #10-24x1.00 ECH-14309815
...
15
BRKT HALF, CHUTE CRANK ECH-14308715
...
16
LABEL - ECHO - ST-5000E For model ST-5000 ECH-14402609
...
16
LABEL - ECHO - ST-5000E For model ST-5000E ECH-14402608
...
17
LABEL - STARTING ECH-14325768
...
18
LABEL - CONTROL PANEL For model ST-5000 ECH-14325050
...
18
LABEL - CONTROL PANEL For model ST-5000E ECH-14313296
...
19
LABEL - CHOKE ECH-14318494
...
20
LABEL - AUGER CONTROL BAR ECH-14337524
...
21
LABEL - EPA ECH-14761032
...
22
LABEL - DANGER ECH-14070141
...
23
LABEL - ECHO ECH-14325458
...
24
LABEL - DANGER ECH-14326162
