Echo ST-5000 S/N: 5001002 - 5001627 Snow Thrower

Model: ST-5000 S/N: 5001002 - 5001627

Back To Assemblies

Save Part Not Listed?
product name

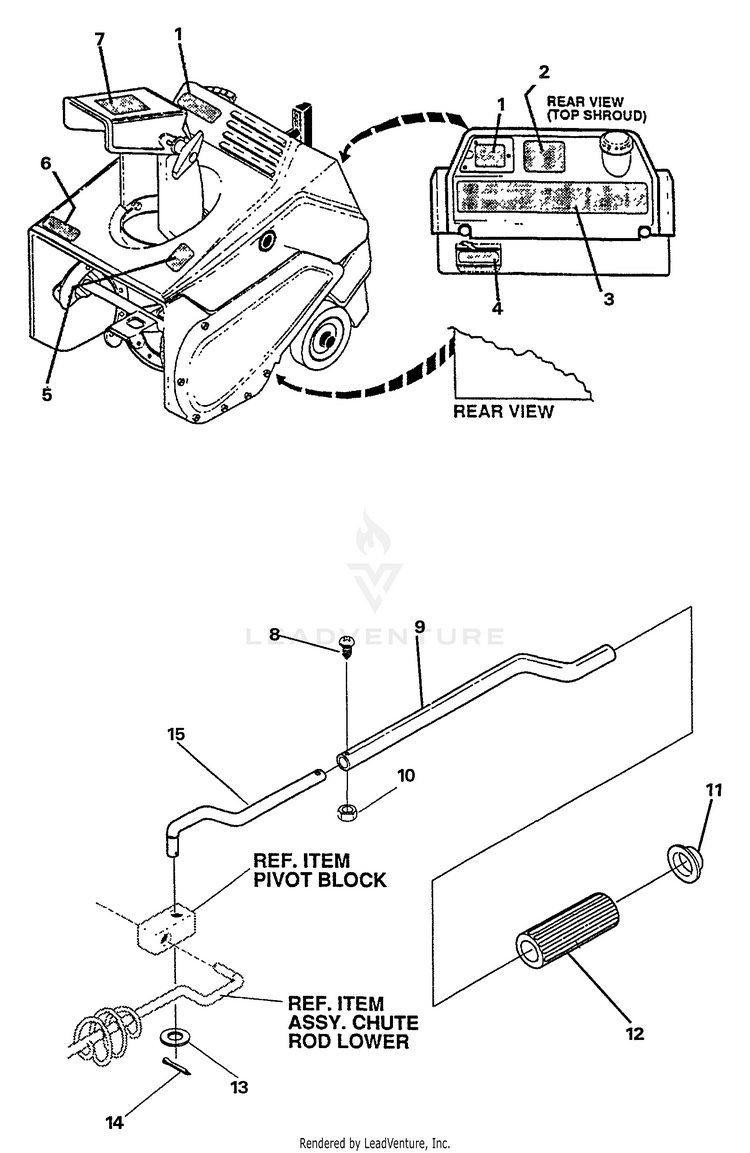

Decals, Chute Crank

...
...
1
LABEL - ECHO - ST-5000E ECH-14402609
...
1
LABEL - ECHO - ST-5000E ECH-14402608
...
2
LABEL - STARTING ECH-14325768
...
3
LABEL - CONTROL PANEL ST-5000 ECH-14325050
...
3
LABEL - CONTROL PANEL ST-5000E ECH-14313296
...
4
LABEL - CHOKE ECH-14318494
...
5
LABEL - DANGER ECH-14070141
...
6
LABEL - ECHO ECH-14325458
...
7
LABEL - DANGER ECH-14326162
...
8
SCREW 010-32x0.88 ECH-14314158
...
9
ROD, UPPER CHUTE CONTROL ECH-14309449
...
10
NUT ECH-14314159
...
11
NUT, PUSH, FITS 3/8 DIA ECH-14331532
...
12
KNOB ECH-14307755
...
13
WASHER - 0.40x0.75x0.025" ECH-14012452
...
14
PIN - COTTER ECH-14121222
...
15
ROD, CHUTE CONTROL MIDDLE ECH-14307756
Schematic Image Zoomed
