Echo SRM-4600 Brushcutter

Model: SRM-4600

Back To Assemblies

Save Part Not Listed?
product name

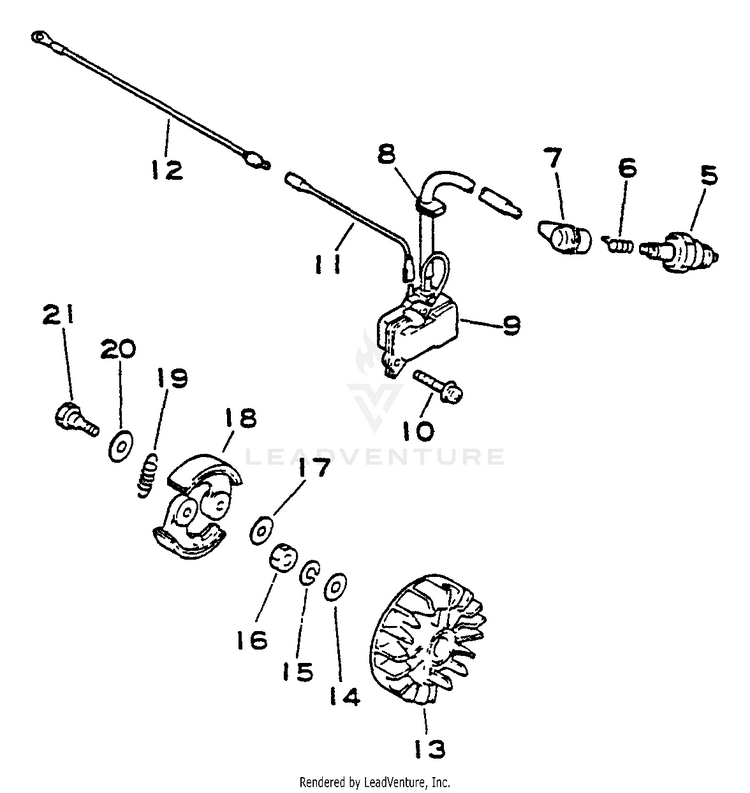

Ignition, Clutch

...
...
5
SPARK PLUG - BPMR7A ECH-15901010230
...
6
TERMINAL, SPARK PLUG ECH-15901103432
...
7
CAP, SPARK PLUG ECH-15901203433
...
8
GROMMET ECH-15611240630
...
9
COIL, IGNITION ECH-15662642230
...
10
SCREW 5x20 ECH-90023805020
...
11
LEAD ECH-16202142230
...
12
LEAD - GROUND ECH-15663543130
...
13
FLYWHEEL ECH-15680142230
...
14
WASHER 10.5x18x1.6 ECH-90060000010
...
15
SCREW ECH-900605-00010
...
16
NUT 3N-10 ECH-90050200010
...
17
WASHER 8.2x17x1.6 ECH-17504903920
...
18
SHOE, CLUTCH ECH-17500942231
...
19
SPRING, CLUTCH ECH-17501842230
...
20
WASHER 10.2x18x1.0 ECH-17504803920
...
21
BOLT, CLUTCH ECH-17504606230
