Echo SRM-4600 Brushcutter

Model: SRM-4600

Back To Assemblies

Save Part Not Listed?
product name

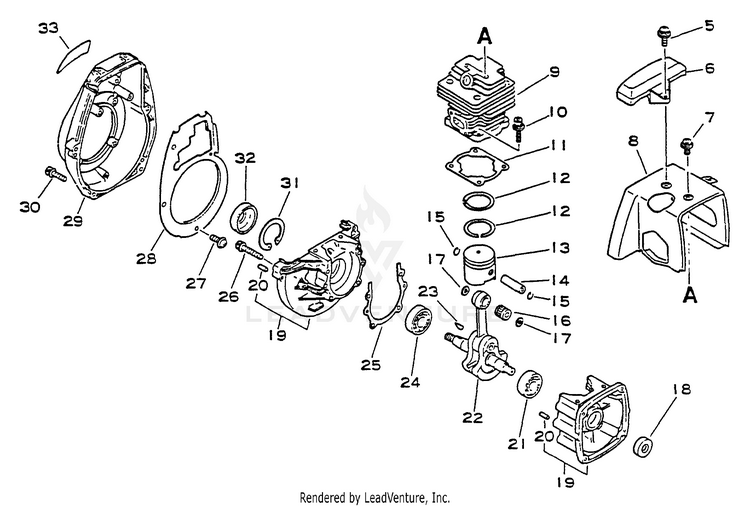

Engine, Crankcase, Fan Housing, Cover

...
...
5
SCREW 5x14 ECH-90023805014
...
6
GUARD, TOP ECH-15990543130
...
7
SCREW 5x10 ECH-90023805010
...
8
COVER, ENGINE ECH-10151442230
...
9
CYLINDER ECH-10101147530
...
10
BOLT 5x20 ECH-90016205020
...
11
GASKET, CYLINDER Included In GASKET KIT 88900042231 ECH-10101042231
...
12
RING, PISTON ECH-10001143230
...
13
RING, PISTON ECH-10001143230
...
14
PIN, PISTON ECH-10001300410
...
15
RING, SNAP 8 ECH-10001500120
...
16
BEARING, NEEDLE 10 ECH-10001212331
...
17
WASHER, THRUST 10 ECH-V307000050
...
18
SEAL, OIL 12 ECH-10021227930
...
19
CRANKCASE KIT ECH-10020042230
...
20
PIN, LOCATING 5x10 ECH-10021502830
...
21
BEARING, BALL 6201 ECH-9403536201
...
22
CRANKSHAFT ASSY ECH-10010043130
...
23
KEY, WOODRUFF ECH-10014212330
...
24
BEARING, BALL 6202 ECH-90081036202
...
25
GASKET, CRANKCASE Included In GASKET KIT 88900042231 ECH---
...
26
BOLT 5x30 ECH-90016205030
...
27
SCREW 4x10 ECH-90023804010
...
28
SHIELD, FAN ECH-10153442231
...
29
COVER, FAN ECH-10151142230
...
30
BOLT 5x25 ECH-90016205025
...
31
RING, SNAP 35 ECH-90070200035
...
32
SEAL, OIL 18 ECH-10021302830
...
33
LABEL - MODEL ECH-89013543130
...
xx
GASKET KIT ECH-88900042231
