Echo SRM-4600 Brushcutter

Model: SRM-4600

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

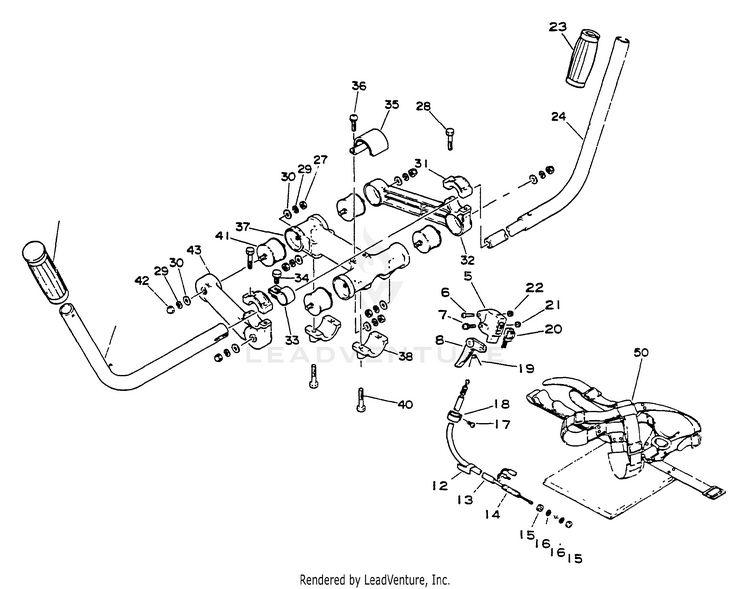

Throttle, Stop Switch, Handles, Harness

...
...
5
BODY, THROTTLE CONTROL ECH-17802451830
...
6
SCREW ECH-17811005330
...
7
SCREW 5x30 ECH-90024205030
...
8
TRIGGER, THROTTLE ECH-17801005330
...
12
CLIP ECH-17811106230
...
13
PIPE ECH-17812741030
...
14
CABLE, THROTTLE ECH-17800141030
...
15
NUT, HEX M6 ECH-90050000006
...
16
WASHER 6.5x11.5x0.8 ECH-90060000006
...
17
SCREW 5x10 ECH-90022005010
...
18
CLAMP ECH-17810605330
...
19
SPRING ECH-17804305230
...
20
SWITCH, ON-OFF ECH-16340041030
...
21
NUT M5 ECH-90050000005
...
22
NUT, LOCK M5 ECH-90056000005
...
23
GRIP ECH-35131522130
...
24
HANDLE ECH-35111008130
...
xx
V.L. UNIT ECH-35200004230
...
27
NUT M5 ECH-90050000005
...
28
BOLT - 5x25 ECH-90014205025
...
29
WASHER, SPRING 5 ECH-90060500005
...
30
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
31
RETAINER ECH-35201505330
...
32
ARM, RETAINER - RIGHT ECH-35201405330
...
35
PLATE ECH-35209005330
...
36
SCREW 5x14 ECH-90024105014
...
37
HOLDER, D.S. HOUSING ECH-35201005330
...
38
HOLDER ECH-35201805330
...
40
BOLT - 6x30 ECH-90010006030
...
41
CUSHION ECH-35201905330
...
42
NUT - 5 - CAP ECH-90053000005
...
43
ARM, HANDLE - LEFT ECH-35201305330
...
33
BAND ECH-35164208130
...
34
BOLT - 6x12 ECH-90010006012
...
44
HANDLE, FRONT ECH-35161008130
...
45
GRIP, HANDLE ECH-35131102330
...
50
HARNESS, SHOULDER (USA) ECH-30100051831
...
50
HARNESS, SHOULDER CANADA MODEL ECH-30100049731
