Echo SRM-400AE Brushcutter

Model: SRM-400AE

Back To Assemblies

Save Part Not Listed?
product name

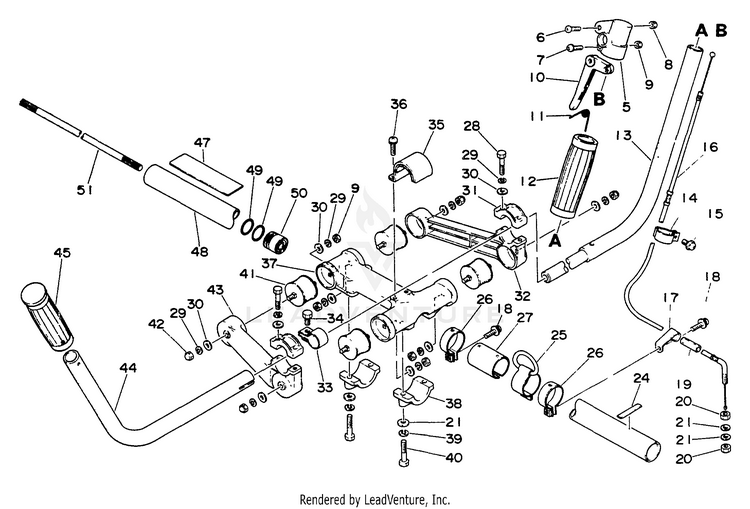

Driveshaft, Handles, Throttle

...
...
5
BRACKET, TRIGGER ECH-17802406130
...
6
SCREW ECH-17811005330
...
7
SCREW 5x25 ECH-90022005025
...
8
NUT, LOCK M5 ECH-90056000005
...
9
NUT M5 ECH-90050000005
...
10
TRIGGER, THROTTLE ECH-17801005330
...
11
SPRING ECH-17804305230
...
12
GRIP, HANDLE ECH-35131527931
...
13
HANDLE ECH-35111008130
...
14
CLAMP ECH-17810606230
...
15
SCREW 5x12 ECH-90024205012
...
16
CABLE, THROTTLE ECH-17800209131
...
17
CLIP ECH-17811106230
...
19
TUBE, VINYL ECH-17801605330
...
20
NUT M6 ECH-90050200006
...
21
WASHER 6.5x11.5x0.8 ECH-90060000006
...
24
LABEL - ALIGNMENT ECH-89015204930
...
xx
HANGER ASSY Includes items 18, 25 thru 17 ECH-30120006230
...
18
SCREW 5x14 ECH-90024205014
...
25
HANGER ASSY ECH-30120006230
...
26
CLAMP ECH-30120705630
...
27
COLLAR ECH-30122406230
...
xx
V.L. UNIT Includes items 9, 21 and 28 thru 43 except 33 and 34 ECH-35200004230
...
28
BOLT - 5x25 ECH-90010005025
...
29
WASHER, SPRING 5 ECH-90060500005
...
30
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
31
RETAINER ECH-35201505330
...
32
ARM, RETAINER - RIGHT ECH-35201405330
...
33
BAND ECH-35164208130
...
34
BOLT - 6x12 ECH-90010006012
...
35
PLATE ECH-35209005330
...
36
SCREW 5x14 ECH-90024105014
...
37
HOLDER, D.S. HOUSING ECH-35201005330
...
38
HOLDER ECH-35201805330
...
39
WASHER, SPRING 6 ECH-90060500006
...
40
BOLT - 6x30 ECH-90010006030
...
41
CUSHION ECH-35201905330
...
42
NUT - 5 - CAP ECH-90053000005
...
43
ARM, HANDLE - LEFT ECH-35201305330
...
44
HANDLE, FRONT ECH-35161008130
...
45
GRIP, HANDLE ECH-35131102330
...
47
LABEL ECH-89016044730
...
48
MAIN PIPE ASSY Includes items 49 and 50 ECH-61020604231
...
49
O-RING ECH-61011204230
...
50
BUSHING ECH-61010504230
...
51
DRIVESHAFT ECH-61001106230
