Echo SRM-400AE Brushcutter

Model: SRM-400AE

Back To Assemblies

Save Part Not Listed?
product name

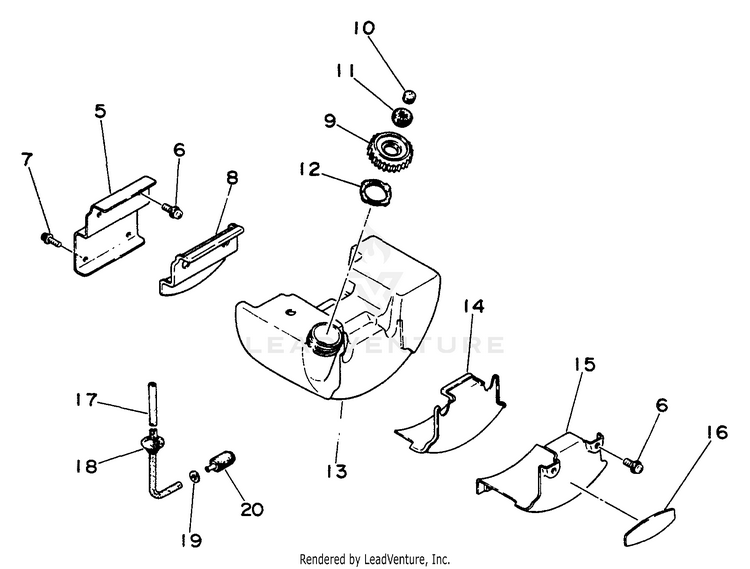

Fuel System

...
...
5
BRACKET, FUEL TANK ECH-13191024830
...
6
SCREW 5x14 ECH-90024205014
...
7
SCREW 4x14 ECH-90024204014
...
8
CUSHION ECH-13192024830
...
9
CAP ASSY Includes ITEMS 10-12 ECH-13100406320
...
10
FILTER, CHECK VALVE ECH-13131505020
...
11
VENT ASSY ECH-13131406320
...
12
PACKING ECH-13101604920
...
13
TANK, FUEL ECH-13101024831
...
14
CUSHION ECH-13192424830
...
15
BRACKET, FUEL TANK ECH-13191824830
...
16
LABEL - ECHO ECH-89011824030
...
17
FUEL PIPE KIT Includes items 18 ECH-13200724830
...
18
GROMMET ECH-13211504920
...
19
WASHER 5.5x12x0.8 ECH-90060300005
...
20
FILTER, FUEL ECH-A369000470
