Echo SRM-400AE Brushcutter

Model: SRM-400AE

Back To Assemblies

Save Part Not Listed?
product name

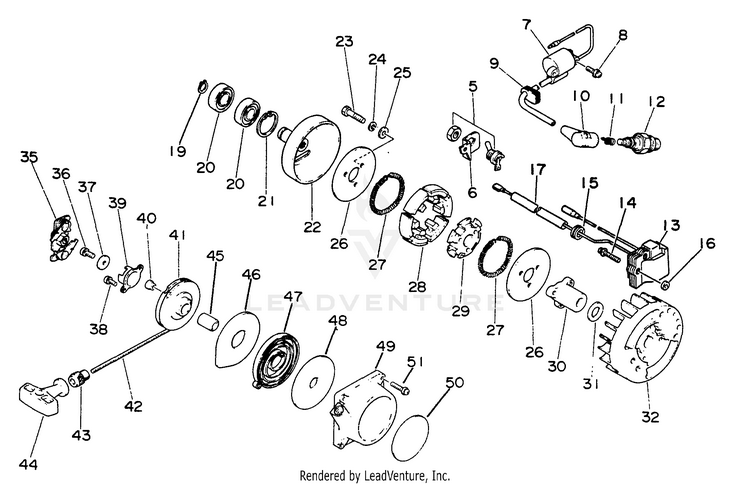

Clutch, Ignition, Starter

...
...
5
SWITCH, IGNITION ECH-16340006520
...
6
BRACKET, SWITCH ECH-16381006720
...
7
COIL, IGNITION ECH-15662621430
...
8
SCREW 4x14 ECH-90024204014
...
9
GROMMET ECH-15011009130
...
10
CAP, SPARK PLUG ECH-15901203433
...
11
TERMINAL, SPARK PLUG ECH-15901103432
...
12
SPARK PLUG - BPMR7A ECH-15901010230
...
13
COIL, IGNITION ECH-15660122730
...
14
SCREW 4x22 ECH-90024204022
...
15
GROMMET ECH-15011409130
...
16
WASHER ECH-15011709130
...
17
TUBE ECH-15661124830
...
19
RING, RETAINING 15 ECH-90070100015
...
20
BEARING, BALL 6203 ECH-90081906202
...
21
RING, SNAP 35 ECH-90070200035
...
22
DRUM, CLUTCH ECH-17500521431
...
23
BOLT - 5x25 ECH-90010005025
...
24
WASHER, SPRING 5 ECH-90060500005
...
25
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
26
PLATE, SIDE ECH-17501921430
...
xx
CLUTCH ASSY Includes 27 thru 30 ECH-17500021431
...
27
SPRING, CLUTCH ECH-17501803330
...
28
SHOE, CLUTCH ECH-17500904231
...
29
BOSS, CLUTCH ECH-17501621430
...
30
ADAPTOR ECH-17505621430
...
31
WASHER ECH-10013221430
...
32
FLYWHEEL ECH-15680021430
...
35
PAWL ASSY, STARTER ECH-177305-06720
...
xx
STARTER ASSY Includes 36 thru 49 ECH-17720006722
...
36
SCREW 5x10 ECH-90024105010
...
37
WASHER 5.2x16x1.0 ECH-17721402830
...
38
SCREW 4x8 ECH-90024104008
...
39
PAWL CATCHER ECH-17724304130
...
40
CLIP, STARTER ROPE ECH-17724603930
...
41
REEL, ROPE ECH-17721504130
...
42
ROPE, STARTER 3.5x850 RePower BULK OPTION: 99944445000 ECH-17722603930
...
43
GUIDE, ROPE ECH-17722705330
...
44
HANDLE ECH-17722811130
...
45
BUSHING ECH-17721612330
...
46
PLATE, SIDE ECH-17724206721
...
47
SPRING, RECOIL ECH-17722003930
...
48
PLATE, SIDE ECH-17722106720
...
49
CASE, STARTER ECH-17720906721
...
50
LABEL - ECHO ECH-89011849330
...
51
SCREW 4x20 ECH-90024204020
