Echo SRM-400AE Brushcutter

Model: SRM-400AE

Back To Assemblies

Save Part Not Listed?
product name

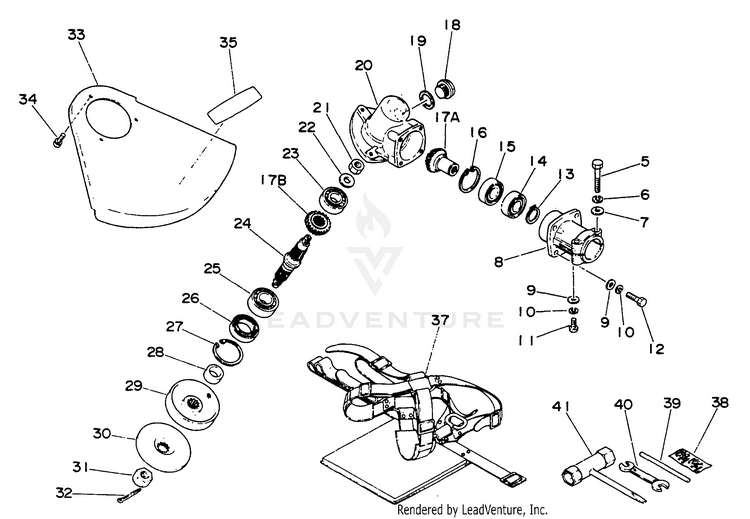

Gear Case, Harness, Tools

...
...
xx
GEAR CASE ASSY Includes items 5 thru 32 ECH-61040022730
...
5
BOLT - 6x32 ECH-90010006035
...
6
WASHER, SPRING 6 ECH-90060500006
...
7
WASHER 6.5x11.5x0.8 ECH-90060000006
...
8
HOUSING, BEARING ECH-61041206230
...
9
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
10
WASHER, SPRING 5 ECH-90060500005
...
11
SCREW 5x12 ECH-90022005012
...
12
BOLT - 5x20 ECH-90010005020
...
13
RING, RETAINING 15 ECH-90070100015
...
14
BEARING, BALL 6002D ECH-90080106002
...
15
BEARING, BALL 6002 ECH-90080006002
...
16
RING, SNAP 32 ECH-90070200032
...
18
FITTING, GREASE ECH-61051001930
...
19
GASING, GEAR ECH-61051101230
...
20
HOUSING, GEAR CASE ECH-61041006231
...
21
NUT 8x1.25 ECH-90050200008
...
22
WASHER 8.5x16x1.2 ECH-90060000008
...
23
BEARING, BALL 6201 ECH-9403536201
...
24
GEAR, SHAFT ECH-61031022730
...
25
BEARING, BALL 6202 ECH-90081006202
...
26
SEAL ECH-61041306230
...
27
RING, SNAP 35 ECH-90070200035
...
28
SPACER ECH-61033406230
...
29
PLATE ECH-61031306230
...
30
PLATE, ADAPTOR - LOWER ECH-61031406231
...
31
NUT 10 ECH-90051100010
...
32
PIN, COTTER 2x22 BULK OPTION: 89850201130 - 10 PACK ECH-90030020022
...
33
SHIELD ECH-69901006230
...
34
SCREW 5x14 ECH-90024105014
...
35
LABEL - ECHO ECH-X502000320
...
37
HARNESS, SHOULDER ECH-30100051831
...
38
PIN, COTTER 2x22 (PKG. OF 10) ECH-89850201130
...
39
TOOL, LOCKING 5x120 MM ECH-89751801131
...
40
SPANNER 8x10 ECH-89511200330
...
41
T-WRENCH 17x19 L200 ECH-X602000020
