Echo SRM-400AE Brushcutter

Model: SRM-400AE

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

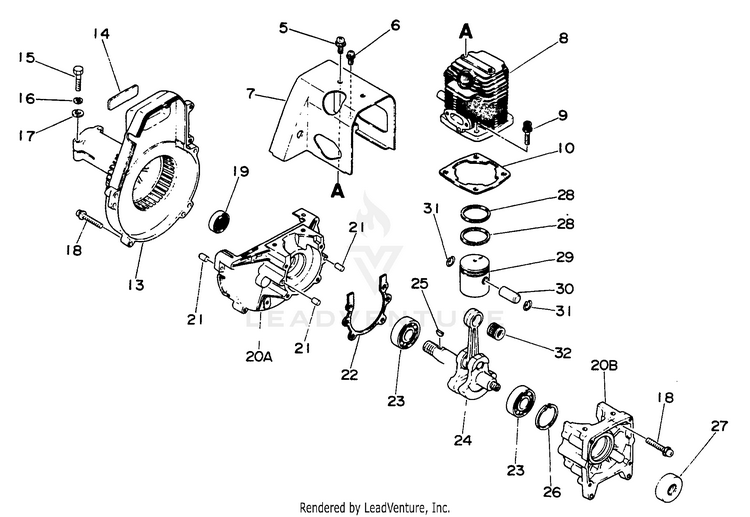

Engine, Crankcase, Fan Housing, Cover

...
...
5
SCREW 5x10 ECH-90024205010
...
6
SCREW 4x10 ECH-90024204010
...
7
COVER, ENGINE ECH-10151424830
...
8
CYLINDER ECH-10101121430
...
9
BOLT 5x20 ECH-90016205020
...
10
GASKET, CYL. BASE ECH-10101021431
...
13
CASE, FAN ECH-10151121430
...
14
LABEL - MODEL 400AE ECH-89011224530
...
15
BOLT - 5x25 ECH-90010005025
...
16
WASHER, SPRING 5 ECH-90060500005
...
17
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
18
SCREW 5x30 ECH-90024205030
...
19
SEAL, OIL 15 ECH-10021300310
...
20
CRANKCASE KIT Includes ITEM 21 ECH-10020021430
...
20A
CRANKCASE KIT See Ref No. 20, Crankcase set, P/N 10020021430 ECH-10020021430
...
20B
CRANKCASE KIT See Ref No. 20, Crankcase set, P\N 10020021430 ECH-10020021430
...
21
PIN, LOCATING 5x10 ECH-10021502830
...
22
GASKET, CRANKCASE ECH-10024206720
...
23
BEARING, BALL 6202 ECH-90081036202
...
24
CRANKSHAFT ASSY ECH-10010021430
...
25
KEY, WOODRUFF ECH-10014212330
...
26
RING, SNAP 35 ECH-90070200035
...
27
SEAL, OIL 18 ECH-10021302830
...
28
RING, PISTON ECH-10001110530
...
29
PISTON KIT ECH-10000021430
...
30
PIN, PISTON ECH-10001300410
...
31
RING, SNAP 8 ECH-10001500120
...
32
BEARING, NEEDLE 10 ECH-10001212331
