Echo SRM-3800 Type 1 Brushcutter

Model: SRM-3800 Type 1

Back To Assemblies

Save Part Not Listed?
product name

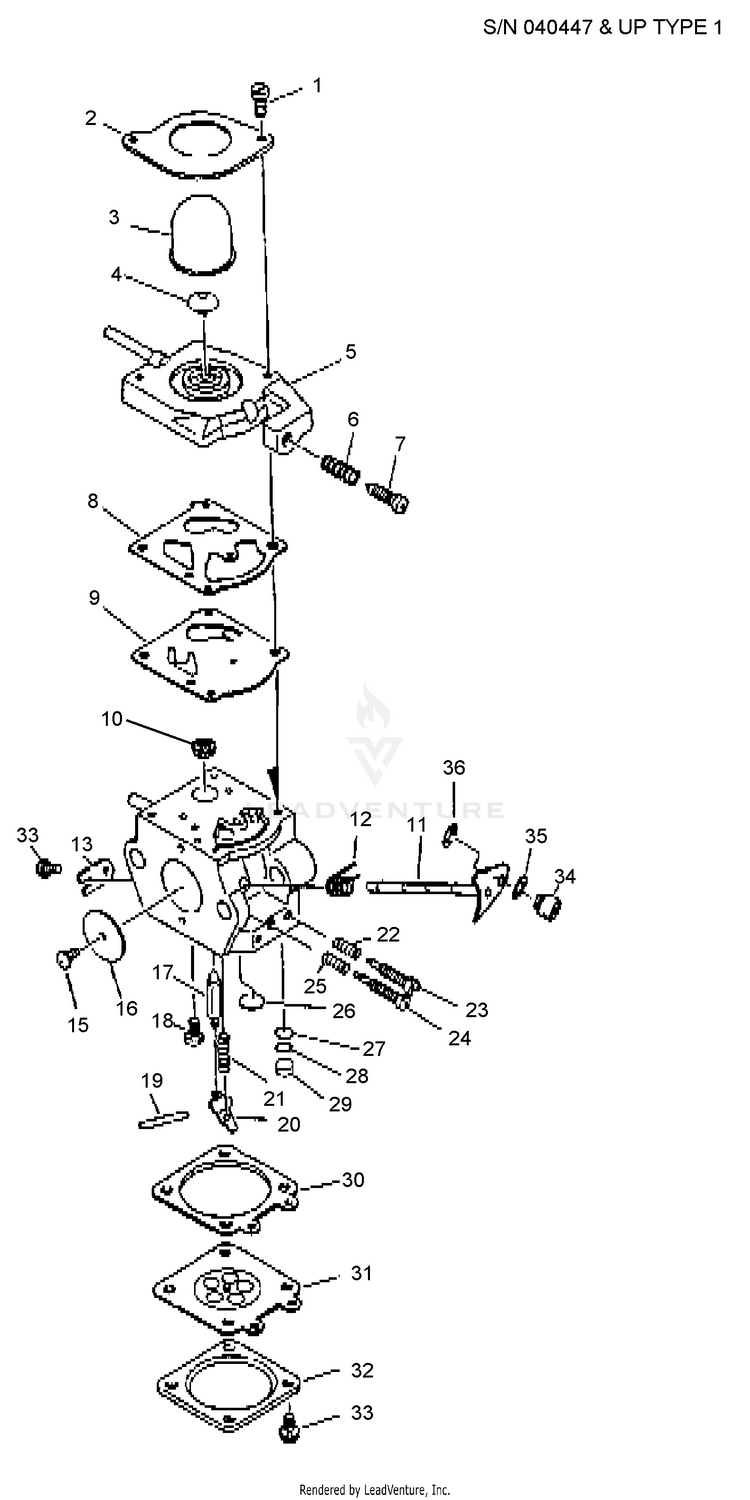

Carburetor S/N: Type 1 -- 040447 - 999999

...
...
xx
CARBURETOR - WT-297 INCLUDES THE FOLLOWING ITEMS ECH-12300051430
...
1
SCREW USE REBUILD KIT P/N 12310009560 ECH---
...
2
RETAINER, PURGE BULB ECH-12314209560
...
3
BULB, PURGE ECH-A263000020
...
4
VALVE, CHECK ECH-12317135630
...
5
COVER, FUEL PUMP ECH-12312451431
...
6
SPRING, IDLE ECH-P003006940
...
7
SCREW, IDLE ADJUSTMENT ECH-P003006950
...
8
GASKET, PUMP USE REBUILD KIT P/N 12310009560 AND GASKET/DIAPHRAGM KIT P/N 12310151430 ECH---
...
9
DIAPHRAGM, PUMP USE REBUILD KIT P/N 12310009560 AND GASKET/DIAPHRAGM KIT P/N 12310151430 ECH---
...
10
STRAINER USE REBUILD KIT P/N 12310009560 ECH---
...
11
SHAFT, THROTTLE ECH-12311705020
...
12
SPRING, THROTTLE RETURN ECH-12311315030
...
13
CLIP, THROTTLE SHAFT ECH-12312703930
...
15
SCREW ECH-12311403930
...
16
VALVE, THROTTLE ECH-12311610530
...
17
VALVE, INLET NEEDLE USE REBUILD KIT P/N 12310009560 ECH---
...
18
SCREW, METERING LEVER PIN USE REBUILD KIT P/N 12310009560 ECH---
...
19
PIN, METERING LEVER USE REBUILD KIT P/N 12310009560 ECH---
...
20
LEVER, METERING USE REBUILD KIT P/N 12310009560 ECH---
...
21
SPRING, METERING LEVER USE REBUILD KIT P/N 12310009560 ECH---
...
22
SPRING USE REBUILD KIT P/N 12310009560 ECH---
...
23
NEEDLE, HIGH SPEED ECH-12312051430
...
24
NEEDLE, LOW SPEED ECH-12311837330
...
25
SPRING USE REBUILD KIT P/N 12310009560 ECH---
...
26
PLUG, WELCH USE REBUILD KIT P/N 12310009560 ECH---
...
27
STRAINER USE REBUILD KIT P/N 12310009560 ECH---
...
28
RING, RETAINING ECH-12316910630
...
29
PLUG, WELCH USE REBUILD KIT P/N 12310009560 ECH---
...
30
GASKET, METERING USE REBUILD KIT P/N 12310009560 AND GASKET/DIAPHRAGM KIT P/N 12310151430 ECH---
...
31
DIAPHRAGM, METERING USE REBUILD KIT P/N 12310009560 AND GASKET/DIAPHRAGM KIT P/N 12310151430 ECH---
...
32
COVER, PUMP ECH-12312403930
...
33
SCREW USE REBUILD KIT P/N 12310009560 ECH---
...
34
SWIVEL ECH-12317226030
...
35
WASHER ECH-P003007000
...
36
CLIP, SWIVEL ECH-P003006790
...
xx
REPAIR KIT AO608WT ECH-12310009560
...
xx
GASKET / DIAPHRAGM KIT ECH-12310151430
