Echo SRM-3800 Type 1 Brushcutter

Model: SRM-3800 Type 1

Back To Assemblies

Save Part Not Listed?
product name

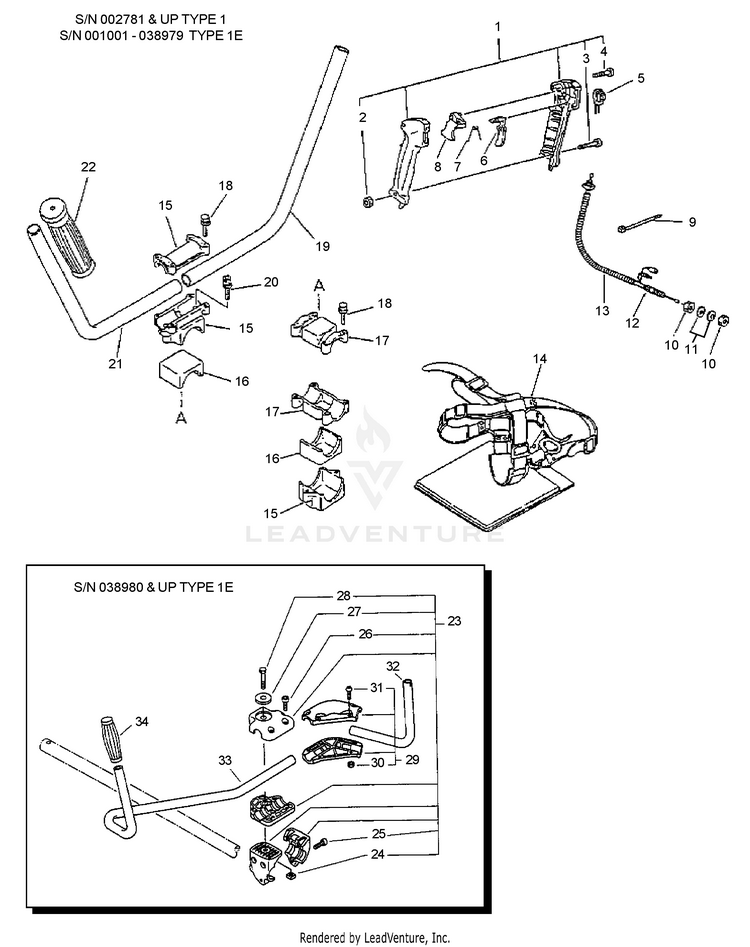

Handle, Throttle Control, Switch, Harness

...
...
1
CONTROL HANDLE KIT INCLUDES ITEMS 2 - 4 ECH-35110247530
...
2
NUT M5 ECH-90050000005
...
3
SCREW 5x30 ECH-90022005030
...
4
SCREW 3x25 ECH-90024603025
...
5
SWITCH, ON-OFF ECH-A440000300
...
6
LOCKOUT, THROTTLE ECH-17801205960
...
7
SPRING, TORSION ECH-17801335631
...
8
TRIGGER, THROTTLE ECH-17801005960
...
9
STRAP, CABLE ECH-17812143230
...
10
NUT M6 ECH-90050200006
...
11
WASHER 6.5x11.5x0.8 ECH-90060000006
...
12
CABLE, THROTTLE ECH-17800143230
...
13
TUBE, FLEXIBLE 7x820 ECH-17812743230
...
14
HARNESS, SHOULDER ECH-30100051831
...
15
BRACKET ASSY, HANDLE INCLUDES ITEMS 18 & 20 ECH-35130151430
...
16
CUSHION ECH-35133540530
...
17
BRACKET ASSY ECH-61060151430
...
18
BOLT - 5x25 ECH-90014205025
...
19
HANDLE, FRONT ECH-35101043130
...
20
BOLT 5x25 ECH-90016205025
...
21
HANDLE, LEFT ECH-35121023430
...
22
GRIP, HANDLE ECH-35131102330
...
23
MOUNT KIT, HANDLE TYPE 1E S/N 038980 & UP INCLUDES 24 - 28 ECH-P021012831
...
24
NUT 8x1.25 ECH-90056550008
...
25
BOLT 5x30 ECH-90016205030
...
26
BOLT 5x20 ECH-90016205020
...
27
WASHER 8 ECH-60501454230
...
28
BOLT 8x55 ECH-35142152130
...
29
BRACKET KIT, HANDLEBAR TYPE 1E S/N 038980 & UP INCLUDES 30 - 31 ECH-P021012781
...
30
NUT M5 ECH-90050000005
...
31
BOLT 5x20 ECH-90016205020
...
32
HANDLEBAR, RIGHT TYPE 1E S/N 038980 & UP ECH-35121452931
...
33
HANDLEBAR, LEFT TYPE 1E S/N 038980 & UP ECH-35101052931
...
34
GRIP, HANDLE TYPE 1E S/N 038980 & UP ECH-35131122431
