Echo SRM-3800 Type 1 Brushcutter

Model: SRM-3800 Type 1

Back To Assemblies

Save Part Not Listed?
product name

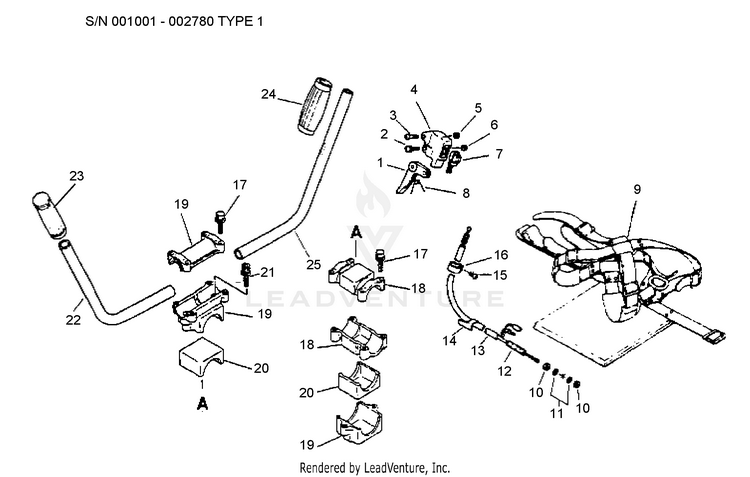

Handle, Throttle Control, Switch, Harness S/N: 001001 - 002780 Type 1

...
...
1
TRIGGER, THROTTLE ECH-17801005330
...
2
SCREW 5x30 ECH-90024205030
...
3
SCREW ECH-17811005330
...
4
BODY, THROTTLE CONTROL ECH-17802451830
...
5
NUT, LOCK M5 ECH-90056000005
...
6
NUT M5 ECH-90050000005
...
7
SWITCH, ON-OFF ECH-16340041030
...
8
SPRING ECH-17804305230
...
9
HARNESS, SHOULDER (USA) ECH-30100051831
...
9
HARNESS, SHOULDER CANADA MODEL ECH-30100049731
...
10
NUT, HEX M6 ECH-90050000006
...
11
WASHER 6.5x11.5x0.8 ECH-90060000006
...
12
CABLE, THROTTLE ECH-17800141030
...
13
PIPE ECH-17812741030
...
14
CLIP ECH-17811106230
...
15
SCREW 5x10 ECH-90022005010
...
16
CLAMP ECH-17810605330
...
17
BOLT - 5x25 ECH-90014205025
...
18
BRACKET KIT ECH-61060140530
...
19
BRACKET ASSY Includes ITEMS 17-18 ECH-35130140530
...
20
CUSHION ECH-35133540530
...
21
BOLT 5x25 ECH-90016205025
...
22
HANDLE, LEFT ECH-35121005530
...
23
GRIP, HANDLE ECH-35131102330
...
24
GRIP ECH-35131522130
...
25
HANDLE ECH-35101005530
