Echo SRM-3800 Type 1 Brushcutter

Model: SRM-3800 Type 1

Back To Assemblies

Save Part Not Listed?
product name

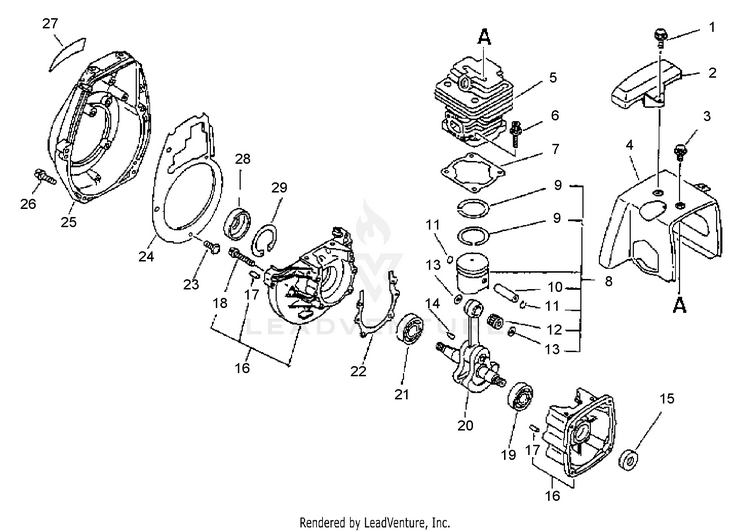

Engine, Fan Housing, Cover

...
...
1
SCREW 5x14 ECH-90023805014
...
2
GUARD, TOP ECH-15990543130
...
3
SCREW 5x10 ECH-90023805010
...
4
COVER, CYLINDER ECH-10157647530
...
5
CYLINDER ECH-10101143130
...
6
BOLT 5x20 ECH-90016205020
...
7
GASKET, CYLINDER USE GASKET KIT P/N 88900042231 ECH-10101042231
...
8
PISTON KIT INCLUDES ITEMS 9 - 13 ECH-10000043131
...
9
RING, PISTON ECH-10001142230
...
10
PIN, PISTON ECH-10001300410
...
11
RING, SNAP 8 ECH-10001500120
...
12
BEARING, NEEDLE 10 ECH-10001212331
...
13
WASHER, THRUST 10 ECH-V307000050
...
14
KEY, WOODRUFF ECH-10014212330
...
15
SEAL, OIL 12 ECH-10021227930
...
16
CRANKCASE KIT Includes ITEMS 17-18 ECH-10020042230
...
17
PIN, LOCATING 5x10 ECH-10021502830
...
18
BOLT 5x30 ECH-90016205030
...
19
BEARING, BALL 6201 ECH-9403536201
...
20
CRANKSHAFT ASSY ECH-10010043130
...
21
BEARING, BALL 6202 ECH-90081036202
...
22
GASKET, CRANKCASE USE GASKET KIT P/N 88900042231 ECH---
...
23
SCREW 4x10 ECH-90023804010
...
24
SHIELD, FAN ECH-10153442231
...
25
CASE, FAN ECH-10151147530
...
26
BOLT 5x25 ECH-90016205025
...
27
LABEL - MODEL ECH-89013543130
...
28
SEAL, OIL 18 ECH-10021302830
...
29
RING, SNAP 35 ECH-90070200035
...
xx
GASKET KIT OPTIONAL ECH-88900042231
...
xx
GASKET, CYLINDER OPTIONAL ECH-10101042231
...
xx
GASKET, CRANKCASE OPTIONAL ECH---
...
xx
GASKET, CARBURETOR OPTIONAL ECH-13001606232
...
xx
GASKET, INTAKE OPTIONAL ECH-13001642231
...
xx
GASKET, MUFFLER OPTIONAL ECH-14551042231
...
xx
GASKET, EXHAUST OPTIONAL ECH-14586643131
Schematic Image Zoomed
