Echo SRM-3800 Type 1 Brushcutter

Model: SRM-3800 Type 1

Save Part Not Listed?

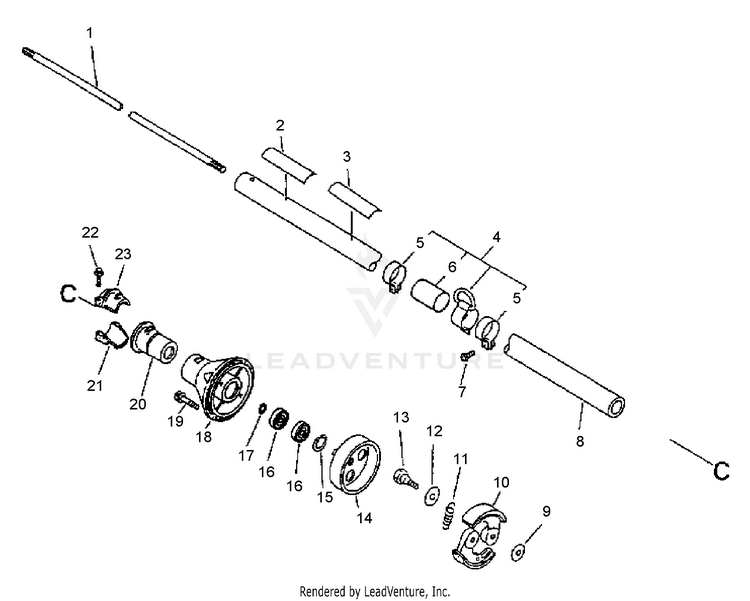

Driveshaft, Clutch, Clutch Housing

DRIVESHAFT ECH-61001106230

LABEL - CAUTION ECH-89016049730

LABEL - CAUTION ECH-89017751830

HANGER ASSY INCLUDES ITEMS 5 - 7 ECH-30120006230

CLAMP ECH-30120705630

COLLAR ECH-30122406230

SCREW 5x14 ECH-90024205014

MAIN PIPE ASSY 25x1500 ECH-61020441030

WASHER 8.2x17x1.6 ECH-17504903920

SHOE, CLUTCH ECH-17500942231

SPRING, CLUTCH ECH-17501842230

WASHER 10.2x18x1.0 ECH-17504803920

BOLT, CLUTCH ECH-17504606230

DRUM, CLUTCH ECH-A556000181

RING, SNAP 28 ECH-90070200028

BEARING, BALL 6001 ECH-9406106001

RING, SNAP 12 ECH-90070100012

CASE, CLUTCH DRUM TYPE 1 S/N 001001 & UP TYPE 1E S/N 001001 - 037579 ECH-61020547531

CASE, CLUTCH DRUM TYPE 1E S/N 037580 & UP ECH-61020547531

BOLT 5x20 ECH-90016205020

CUSHION TYPE 1 S/N 001001 & UP TYPE 1E S/N 001001 - 037579 ECH-61091040430

CUSHION 28 TYPE 1E S/N 037580 & UP ECH-61091051830

HOLDER TYPE 1 S/N 001001 & UP TYPE 1E S/N 001001 - 037579 ECH-61092340430

HOLDER, MAIN PIPE TYPE 1E S/N 037580 & UP ECH-61092255630

BOLT - 5x25 ECH-90014205025

CLAMP, MAIN PIPE ECH-61092243130
