product name

Echo SRM-3800 Type 1 Brushcutter

Model: SRM-3800 Type 1

Back To Assemblies

Save Part Not Listed?
product name

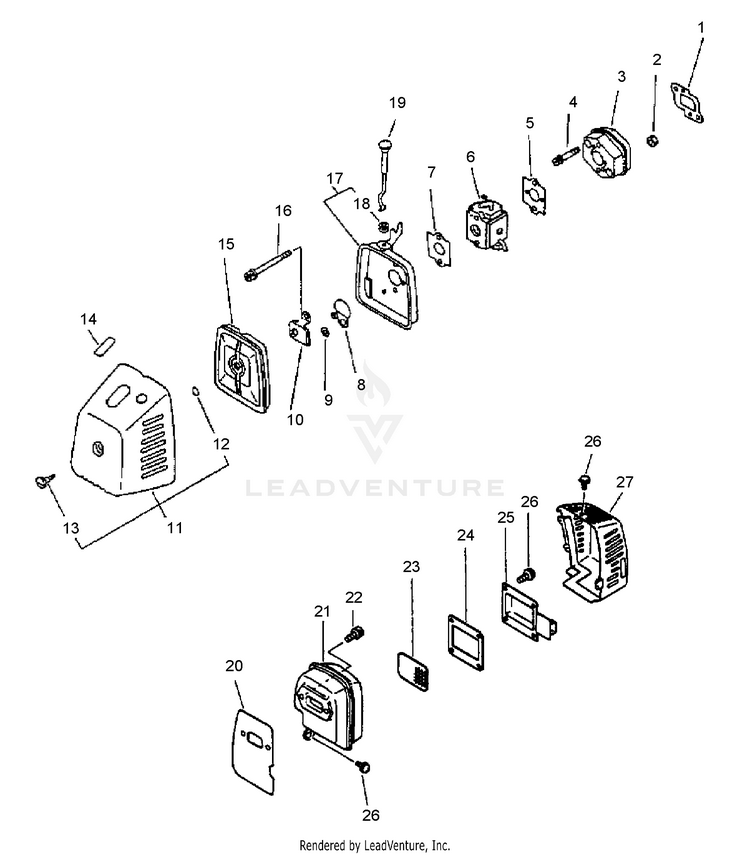

Intake, Air Filter, Exhaust

...
...
1
GASKET, INTAKE USE GASKET KIT P/N 88900042231 ECH-13001642231
...
2
NUT M5 ECH-90050000005
...
3
INSULATOR, INTAKE ECH-13001743130
...
4
BOLT 5x25 ECH-90016205025
...
5
GASKET, CARBURETOR USE GASKET KIT P/N 88900042231 ECH-13001606232
...
6
CARBURETOR - WT-74A TYPE 1 S/N 001001 - 040446 ECH-12300043131
...
6
CARBURETOR - WT-297 TYPE 1 S/N 040447 & UP ECH-12300051430
...
6
CARBURETOR TYPE 1E S/N 001001 & UP ECH-12300143132
...
7
SPACER TYPE 1E S/N 001001 & UP ECH-10158643130
...
8
SHUTTER, CHOKE ECH-17851543130
...
9
WASHER 5.2x8x0.8T ECH-17851600830
...
10
PLATE ECH-12900643130
...
11
COVER ASSY, AIR FILTER Includes ITEMS 12-13 ECH-P100005190
...
12
O-RING ECH-90072000004
...
13
SCREW ECH-13041540630
...
14
LABEL - CHOKE ECH-X506000070
...
15
FILTER, AIR ECH-13031043130
...
16
BOLT 5x57 TYPE 1 S/N 0001001 & UP ECH-90016205057
...
16
SCREW 5x60 TYPE 1E S/N 001001 & UP ECH-90024205060
...
17
CASE ASSY, AIR FILTER Includes ITEM 18 ECH-13030143130
...
18
GROMMET, CHOKE ECH-17881005230
...
19
ROD, CHOKE ECH-17851047530
...
20
GASKET, MUFFLER USE GASKET KIT P/N 88900042231 ECH-14551042231
...
21
MUFFLER ECH-14561043130
...
22
BOLT 5x20 ECH-90016205020
...
23
SCREEN, SPARK ARRESTER ECH-14586243130
...
24
GASKET, EXHAUST USE GASKET KIT P/N 88900042231 ECH-14586643131
...
25
GUIDE, EXHAUST ECH-14586743131
...
26
SCREW 4x10 ECH-90023804010
...
27
COVER, MUFFLER ECH-A320000890
...
xx
GASKET KIT ECH-88900042231
