Echo SRM-3800 Type 1 Brushcutter

Model: SRM-3800 Type 1

Back To Assemblies

Save Part Not Listed?
product name

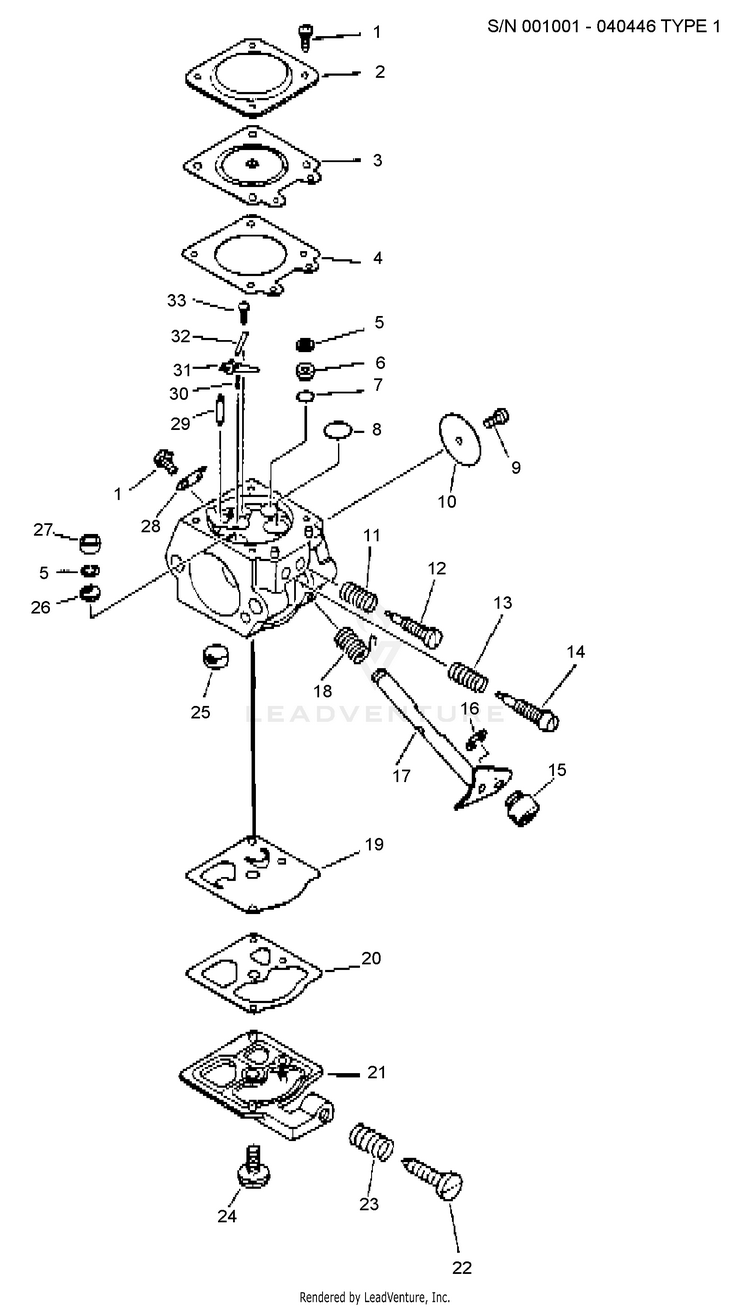

Carburetor S/N: Type 1 -- 001001 - 040446

...
...
xx
CARBURETOR - WT-74A INCLUDES THE FOLLOWING ITEMS ECH-12300043131
...
1
SCREW USE REBUILD KIT P/N 12310043130 ECH---
...
2
COVER, MET. DIA. ECH-P003006890
...
3
GASKET, PUMP USE REBUILD KIT P/N 12310043130 AND GASKET/DIAPHRAGM KIT P/N 12310110530 ECH---
...
4
DIAPHRAGM, PUMP USE REBUILD KIT P/N 12310043130 ECH---
...
5
RING, RETAINING ECH-12316910630
...
6
JET, MAIN ECH-12318443130
...
7
O-RING ECH-12318305960
...
8
PLUG, WELCH USE REBUILD KIT P/N 12310043130 ECH---
...
9
SCREW ECH-12311403930
...
10
VALVE, THROTTLE ECH-12311610530
...
------------------
SPRING, NEEDLE USE REBUILD KIT P/N 12310043130 ECH---
...
12
NEEDLE, LOW SPEED ECH-12311824430
...
------------------
SPRING, NEEDLE USE REBUILD KIT P/N 12310043130 ECH---
...
14
NEEDLE, HIGH SPEED ECH-12312004420
...
15
SWIVEL ECH-12317204320
...
16
RING, RETAINING ECH-12312710630
...
17
SHAFT, THROTTLE ECH-12311705020
...
18
SPRING, THROTTLE RETURN ECH-12311315030
...
19
GASKET, METERING USE REBUILD KIT P/N 12310043130 AND GASKET/DIAPHRAGM KIT P/N 12310110530 ECH---
...
20
DIAPHRAGM, METERING USE REBUILD KIT P/N 12310043130 AND GASKET/DIAPHRAGM KIT P/N 12310110530 ECH---
...
21
COVER, PUMP ECH-12312409520
...
22
SCREW, IDLE ADJUSTMENT ECH-P003006950
...
23
SPRING, IDLE ECH-P003006940
...
24
SCREW, PUMP COVER ECH-P003006850
...
25
STRAINER USE REBUILD KIT P/N 12310043130 ECH---
...
26
STRAINER USE REBUILD KIT P/N 12310043130 ECH---
...
27
PLUG, WELCH USE REBUILD KIT P/N 12310043130 ECH---
...
28
CLIP, THROTTLE SHAFT ECH-12312703930
...
29
VALVE, INLET NEEDLE USE REBUILD KIT P/N 12310043130 ECH---
...
30
SPRING, METERING LEVER USE REBUILD KIT P/N 12310043130 ECH---
...
31
LEVER, METERING USE REBUILD KIT P/N 12310043130 ECH---
...
32
PIN, METERING LEVER USE REBUILD KIT P/N 12310043130 ECH---
...
33
SCREW USE REBUILD KIT P/N 12310043130 ECH---
...
xx
REPAIR KIT ECH-12310043130
...
xx
GASKET / DIAPHRAGM KIT ECH-12310110530
