Echo SRM-3800 Type 1 Brushcutter

Model: SRM-3800 Type 1

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

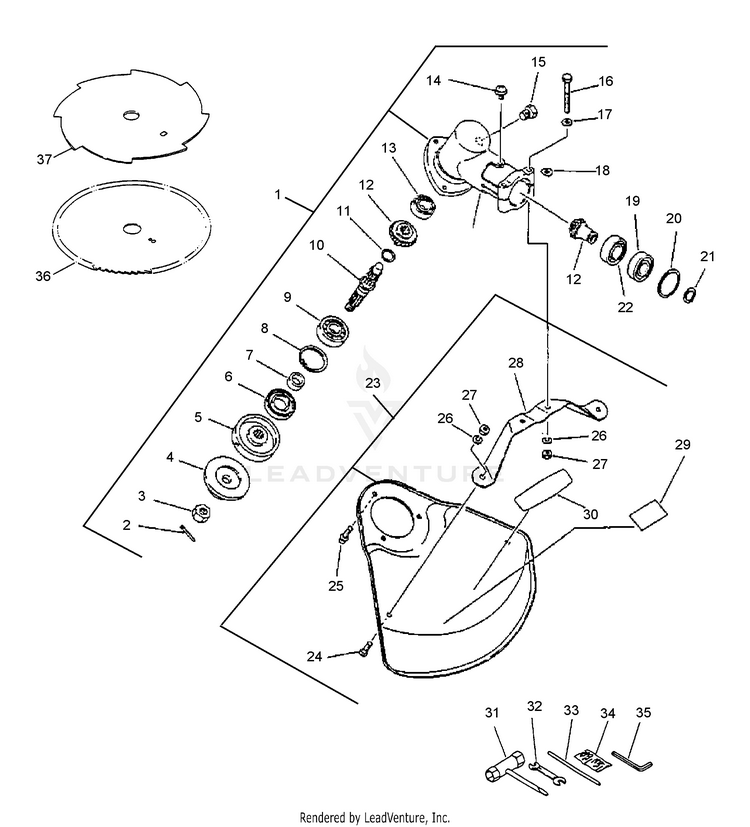

Gear Housing Asy, Blades, Shield, Tools

...
...
1
GEAR CASE ASSY INCLUDES ITEMS 2 - 21 ECH-P021046200
...
2
PIN, COTTER 2x22 BULK OPTION: 89850201130 - 10 PACK ECH-90030020022
...
3
NUT 10 ECH-90051100010
...
4
PLATE, ADAPTOR - LOWER ECH-C535000150
...
5
PLATE, ADAPTOR - UPPER ECH-61031307132
...
6
SEAL, OIL 22 ECH-61041307130
...
7
SPACER 11.8x15x9 ECH-61031507130
...
8
RING, SNAP 32 ECH-90070200032
...
9
BEARING, BALL 6201 ECH-9403536201
...
10
SHAFT, GEAR ECH-61031041030
...
11
RING, SNAP 12 ECH-90070600012
...
12
GEAR SET ECH-61030040430
...
13
BEARING, BALL 6000 ECH-90080036000
...
14
SCREW 5x10 ECH-90024205010
...
15
BOLT 8x8 SP ECH-90010008008
...
16
BOLT 5x40 ECH-90010005040
...
17
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
18
D-WASHER ECH-61023904130
...
19
BEARING, BALL 6001 ECH-9406106001
...
20
RING, SNAP 28 ECH-90070200028
...
21
RING, SNAP 12 ECH-90070100012
...
22
BEARING, BALL 6001 ECH-90080036001
...
23
SHIELD KIT, DEBRIS - BLADE INCLUDES ITEMS 24 - 29 ECH-69900023532
...
24
SCREW 5x8 ECH-90022005008
...
25
SCREW 5x10 ECH-90024205010
...
26
WASHER, SPRING 5 ECH-90060500005
...
27
NUT M5 ECH-90050000005
...
28
BRACKET, SHIELD MOUNTING ECH-69901523532
...
29
LABEL - DANGER ECH-89016841031
...
30
LABEL - ECHO ECH-X502000320
...
31
T-WRENCH 17x19 L200 ECH-X602000020
...
32
SPANNER 8x10 ECH-89511200330
...
33
TOOL, LOCKING 5x120 MM ECH-89751801131
...
34
PIN, COTTER 2x22 (PKG. OF 10) ECH-89850201130
...
35
WRENCH, ALLEN 4 MM ECH-A605000100
...
36
BLADE, 10" 80 TOOTH ECH-69500121431
...
37
BLADE 8" - 8 TOOTH (25 MM ARBOR) ECH-69600121431
