Echo SRM-3110 Type 2E Brushcutter

Model: SRM-3110 Type 2E

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

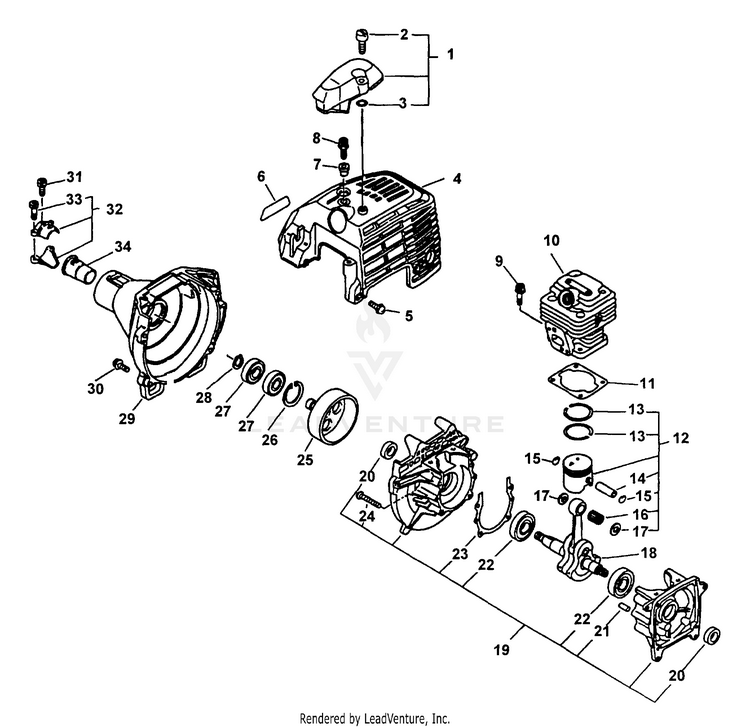

Engine, Fan Housing

...
...
1
GUARD KIT, TOP INCLUDES ITEMS 2 & 3 ECH-P100002320
...
2
THUMBSCREW M5x15.5 ECH-35232555230
...
3
O-RING ECH-90072000004
...
4
COVER, ENGINE ECH-10151455830
...
5
BOLT 5x12 ECH-90016205012
...
6
LABEL - MODEL SRM-3100 ECH-89011255730
...
6
LABEL - MODEL SRM-3110 SRM-3110 ECH-89011555730
...
7
COLLAR ECH-10153155230
...
8
BOLT 5x20 ECH-90016205020
...
9
BOLT 5x20 ECH-90016205020
...
10
CYLINDER ECH-10103455630
...
11
GASKET, CYLINDER Also Included in GASKET KIT 88900055430 ECH-10101055430
...
12
KIT, PISTON INCLUDES ITEMS 13 - 17 ECH-P021034820
...
13
RING, PISTON ECH-10001116131
...
14
PIN, PISTON ECH-10001327430
...
15
RING, SNAP ECH-10001503931
...
16
BEARING, NEEDLE 9 ECH-10001216131
...
17
WASHER, THRUST ECH-10001453630
...
18
CRANKSHAFT ASSY USE SB1028 ECH---
...
19
CRANKCASE KIT USE SB1028 ECH---
...
20
SEAL, OIL 12 ECH-10021305530
...
21
PIN, LOCATING 4 ECH-V622000020
...
22
BEARING, BALL 6201 ECH-9403536201
...
23
GASKET, CRANKCASE Also Included in GASKET KIT 88900055430 ECH---
...
24
BOLT 5x30 ECH-90016205030
...
25
DRUM, CLUTCH ECH-17500555730
...
26
RING, SNAP 28 ECH-90070200028
...
27
BEARING, BALL 6001 ECH-9406106001
...
28
RING, SNAP 12 ECH-90070100012
...
29
COVER, FAN ECH-10151155830
...
30
BOLT 5x20 ECH-90016205020
...
31
BOLT 5x12 ECH-90016205012
...
32
RETAINER KIT Includes ITEM 33 ECH-61090355430
...
33
BOLT 5x25 ECH-90016205025
...
34
CUSHION ECH-61091055730
...
xx
SHORT BLOCK ECH-SB1028
...
xx
GASKET KIT ECH-88900055430
