Echo SRM-3110 Type 2E Brushcutter

Model: SRM-3110 Type 2E

Back To Assemblies

Save Part Not Listed?
product name

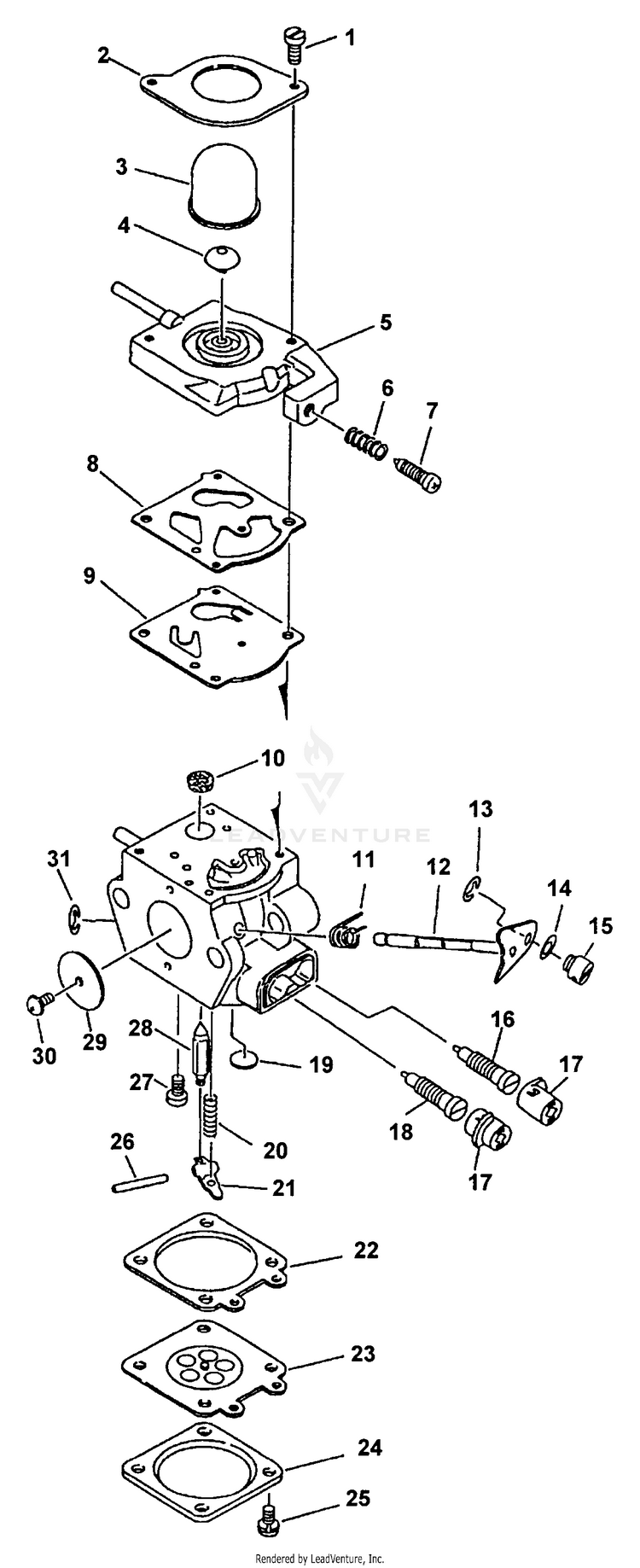

Carburetor -- WT-418A

...
...
xx
CARBURETOR ECH-12300055832
...
1
SCREW ECH-12311043130
...
2
RETAINER, PURGE BULB ECH-12314209560
...
3
BULB, PURGE ECH-A263000020
...
4
VALVE, CHECK ECH-12317135630
...
5
COVER, FUEL PUMP ECH-12312443230
...
6
SPRING, IDLE ECH-P003006940
...
7
SCREW, IDLE ADJUSTMENT ECH-P003006950
...
8
GASKET, PUMP INCLUDED IN REPAIR KIT & DIAPHRAGM/GASKET KIT ECH---
...
9
DIAPHRAGM, PUMP INCLUDED IN REPAIR KIT & DIAPHRAGM/GASKET KIT ECH---
...
10
STRAINER Included In REPAIR KIT ECH---
...
11
SPRING, THROTTLE RETURN ECH-12311352130
...
12
SHAFT, THROTTLE ECH-12311755830
...
13
CLIP, SWIVEL ECH-P003006790
...
14
WASHER ECH-P003007000
...
15
SWIVEL ECH-12317226030
...
16
NEEDLE, HIGH SPEED ECH-12312009460
...
17
CAP, LIMITER ECH-12315139230
...
18
NEEDLE, IDLE ECH-12311803660
...
19
PLUG, WELCH Included In REPAIR KIT ECH---
...
20
SPRING, METERING LEVER Included In REPAIR KIT ECH---
...
21
LEVER, METERING Included In REPAIR KIT ECH---
...
22
GASKET, DIAPHRAGM INCLUDED IN REPAIR KIT & DIAPHRAGM/GASKET KIT ECH---
...
23
DIAPHRAGM, METERING INCLUDED IN REPAIR KIT & DIAPHRAGM/GASKET KIT ECH---
...
24
COVER, MET. DIA. ECH-P003006890
...
25
SCREW Included In REPAIR KIT ECH---
...
26
PIN, METERING LEVER Included In REPAIR KIT ECH---
...
27
SCREW, METERING LEVER PIN Included In REPAIR KIT ECH---
...
28
VALVE, INLET NEEDLE INCLUDED IN REPAIR KIT ECH---
...
29
VALVE, THROTTLE ECH-12311623230
...
30
SCREW ECH-12311403930
...
31
E-RING ECH-12312715030
...
xx
REPAIR KIT ECH-12310055830
...
xx
GASKET / DIAPHRAGM KIT ECH-12310155730
