Echo SRM-3110 Type 2E Brushcutter

Model: SRM-3110 Type 2E

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Ignition, Starter, Clutch

...
...
1
TUBE, PROTECTIVE 6x7x110 ECH-15061114530
...
2
CAP, SPARK PLUG ECH-15901201620
...
3
SEAL, SPARK PLUG ECH-15901555230
...
4
TERMINAL, SPARK PLUG ECH-15901103432
...
5
SPARK PLUG - BPMR7A ECH-15901010230
...
6
COIL, IGNITION ECH-15262655430
...
7
KEY, WOODRUFF ECH-10014212330
...
8
PAWL ASSY, STARTER INCLUDES ITEMS 9 - 11 ECH-A052000370
...
9
E-RING 4 ECH-90070000004
...
10
SPRING, RETURN ECH-17723440630
...
11
PAWL, STARTER ECH-17721840630
...
12
STARTER ASSY, RECOIL INCLUDES ITEMS 13 - 18 ECH-17720055631
...
13
SCREW ECH-17723640630
...
14
REEL, ROPE ECH-17721543130
...
15
SPRING, RECOIL ECH-17722040630
...
------------------
ROPE, STARTER 3.5×950 MM RePower BULK OPTION: 99944445000 ECH---
...
17
GUIDE, ROPE ECH-17722742030
...
18
GRIP, STARTER ECH-17722811120
...
19
BOLT 4x14 ECH-90016204014
...
20
LABEL - ECHO ECH-89011849330
...
21
NUT 8x1.25 ECH-90050200008
...
22
FLYWHEEL ECH-15280155430
...
23
WASHER 8.5x16x1.2 ECH-90060000008
...
24
WASHER, SPRING 8 ECH-90060500008
...
25
SHOE, CLUTCH ECH-A553000000
...
26
BOLT, CLUTCH M6 ECH-17504646430
...
27
SPRING, CLUTCH ECH-17501849933
...
28
WASHER 6.2x19x1.0 ECH-17504805530
...
29
BOLT 5x20 ECH-90016205020
...
30
GROMMET ECH-15011244330
...
31
LEAD - GROUND ECH-16201452930
...
32
SCREW 5x10 ECH-90023805010
...
33
LEAD 170 MM ECH-16201055630

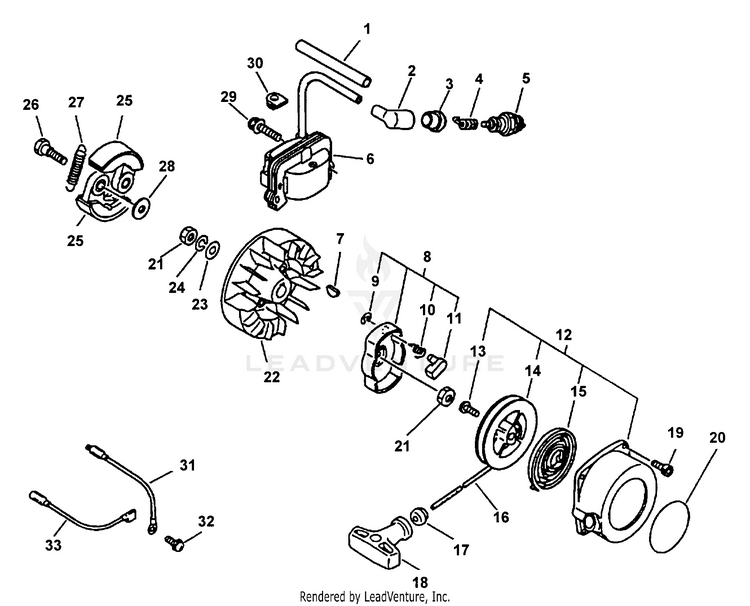

Schematic Image Zoomed
