Echo SRM-302ADX Brushcutter

Model: SRM-302ADX

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

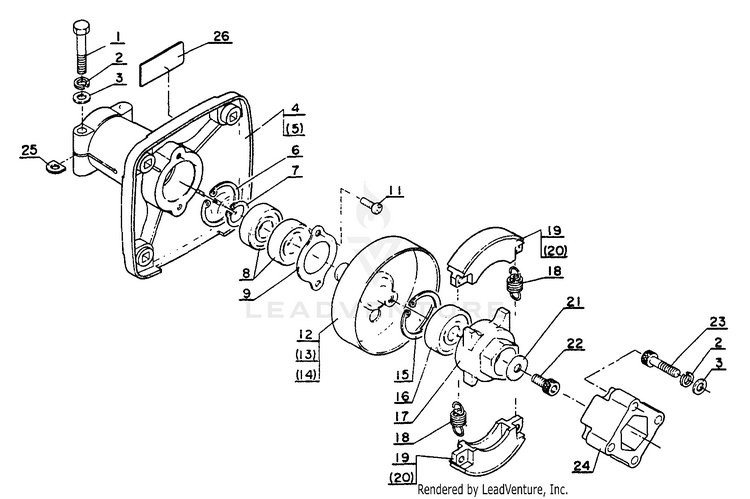

Clutch

...
...
1
BOLT 5x30 ECH-90010005030
...
2
WASHER, SPRING 5 ECH-90060500005
...
3
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
4
CASE, CLUTCH ECH-61020504930
...
5
N/A ECH---
...
6
RING, SNAP 28 ECH-90070200028
...
7
RING, SNAP 12 ECH-90070100012
...
8
BEARING, BALL ECH-9404206001
...
9
RETAINER ECH-61023404130
...
11
SCREW 4x10 ECH-90022004010
...
12
CASE, CLUTCH ECH-17500504130
...
13
N/A ECH---
...
14
N/A ECH---
...
15
E-RING 30 ECH-90070200030
...
16
BEARING, BALL 6200 ECH-90081206200
...
xx
CLUTCH ASSY ECH-17500004131
...
17
HUB, CLUTCH ECH-17501604130
...
18
SPRING, CLUTCH ECH-17501804130
...
19
SHOE, CLUTCH ECH-17500904131
...
20
N/A ECH---
...
21
WASHER 5.2x16x1.0 ECH-17721402830
...
22
BOLT 5x12 ECH-90010505012
...
23
BOLT 5x25 ECH-90010505025
...
24
COUPLING ECH-60001004130
...
25
D-WASHER ECH-61023904130
...
26
N/A ECH---
