Echo SRM-302ADX Brushcutter

Model: SRM-302ADX

Back To Assemblies

Save Part Not Listed?
product name

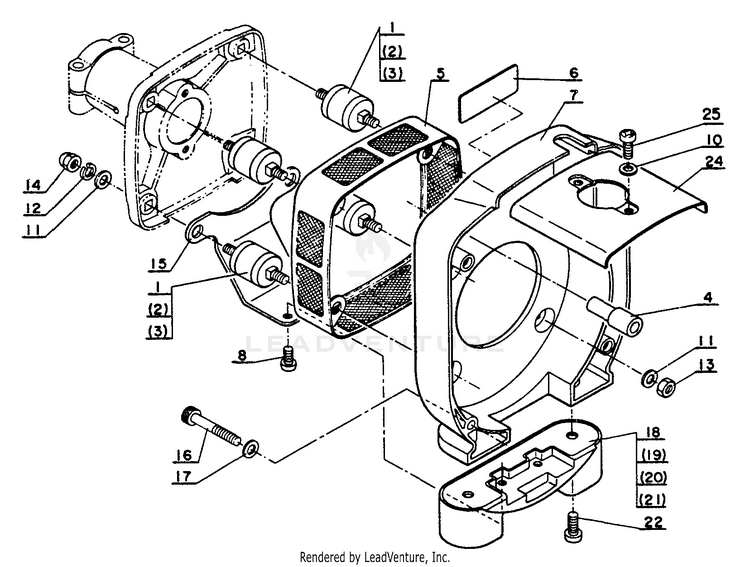

Fan Housing

...
...
1
CUSHION - UPPER ECH-61090504930
...
2
N/A ECH---
...
3
N/A ECH---
...
4
TUBE ECH-17812104930
...
5
SEAL, DUST ECH-10061604931
...
6
MODEL PLATE ECH-89001204931
...
7
CASE, FAN ECH-10151104932
...
8
SCREW 4x12 ECH-90022004012
...
10
WASHER 4 MM ECH-90060000004
...
11
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
12
WASHER, SPRING 5 ECH-90060500005
...
13
NUT, LOCK M5 ECH-90056000005
...
14
NUT - 5 - CAP ECH-90053000005
...
15
CUSHION SUPPORTER ECH-61091704130
...
16
SCREW - 5x35 ECH-90010505035
...
17
WASHER ECH-10024702830
...
18
CUSHION - LOWER ECH-61090604930
...
19
N/A ECH---
...
20
N/A ECH---
...
21
N/A ECH---
...
22
SCREW 5x12 ECH-90022005012
...
24
COVER, ENGINE ECH-10151404930
...
25
SCREW 4x8 ECH-90022004008
