product name

Echo SRM-302ADX Brushcutter

Model: SRM-302ADX

Back To Assemblies

Save Part Not Listed?
product name

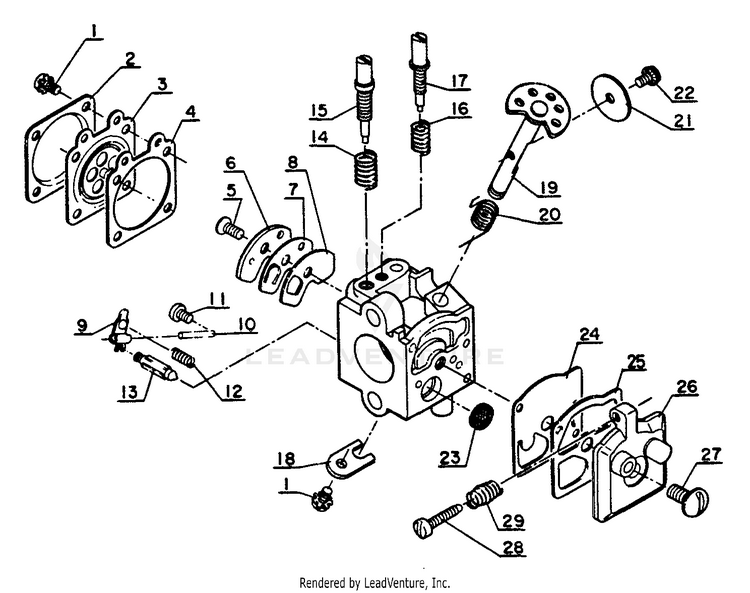

Carburetor

...
...
xx
CARBURETOR - WA-7B ECH-12300004931
...
1
SCREW ECH-12314403930
...
2
COVER, MET. DIA. ECH-P003006890
...
3
DIAPHRAGM, METERING ECH-12314103930
...
4
GASKET, METERING DIAPHRAGM ECH-P003006980
...
5
SCREW, CIRCUIT PLATE ECH-12316705230
...
6
PLATE, CIRCUIT ECH-12316603930
...
7
VALVE, CHECK ECH-12316503930
...
8
GASKET, CIRCUIT PLATE ECH-12316403930
...
9
LEVER, METERING ECH-12312338330
...
10
PIN ECH-P003006740
...
11
SCREW, METER. LEV. PIN ECH-P003007030
...
12
SPRING ECH-12312203930
...
13
VALVE, INLET NEEDLE ECH-12313703930
...
14
SPRING, NEEDLE ECH-12311903930
...
15
NEEDLE, HIGH SPEED ECH-12312003930
...
16
SPRING, NEEDLE ECH-12312103930
...
17
NEEDLE, IDLE ECH-12311806230
...
18
CLIP, THROTTLE SHAFT ECH-12312703930
...
19
SHAFT, THROTTLE ECH-12311703930
...
20
SPRING, THROTTLE RETURN ECH-12311309660
...
21
VALVE, THROTTLE ECH-12311603930
...
22
SCREW ECH-12311403930
...
23
SCREEN, INLET ECH-P003006710
...
24
DIAPHRAGM, FUEL PUMP ECH-12311203930
...
25
GASKET, FUEL PUMP ECH-12312503930
...
26
COVER, PUMP ECH-12312403930
...
27
SCREW, PUMP COVER ECH-P003006850
...
28
SCREW, IDLE ADJUST ECH-12313403930
...
29
SPRING, IDLE ADJUST ECH-12313303930
