Echo SRM-302ADX Brushcutter

Model: SRM-302ADX

Back To Assemblies

Save Part Not Listed?
product name

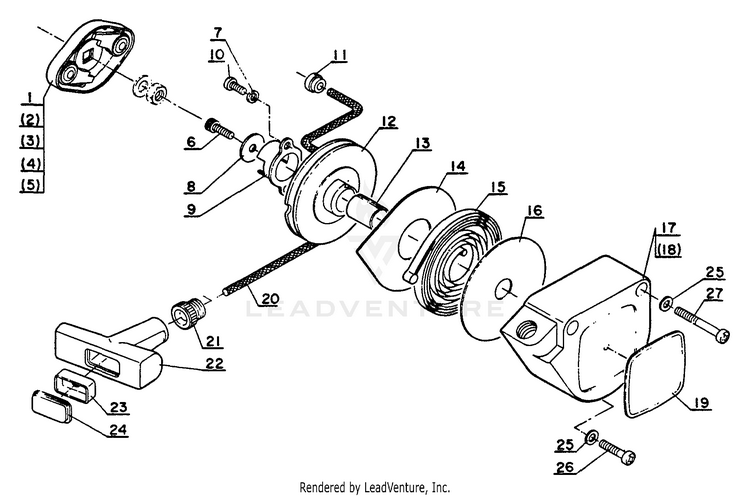

Starter

...
...
1
STARTER PAWL ASSY ECH-17730504130
...
xx
STARTER ASSY ECH-17720004932
...
2
N/A ECH---
...
3
N/A ECH---
...
4
N/A ECH---
...
5
N/A ECH---
...
6
BOLT 4x12 ECH-90010504012
...
7
WASHER, SPRING 4 ECH-900605-00004
...
8
WASHER 4.2x16.5x1 ECH-17721403930
...
9
PAWL CATCHER ECH-17724304130
...
10
SCREW 4x8 ECH-90022004008
...
11
CLIP, STARTER ROPE ECH-17724603930
...
12
REEL, ROPE ECH-17721504130
...
13
BUSHING ECH-17721603930
...
14
PLATE, SIDE ECH-17724203930
...
15
SPRING, RECOIL ECH-17722003930
...
16
PLATE, SIDE ECH-17722103930
...
17
CASE, STARTER ECH-17720904931
...
18
N/A ECH---
...
19
NAME PLATE ECH-89005306631
...
20
ROPE, STARTER 3.5x850 RePower BULK OPTION: 99944445000 ECH-17722603930
...
21
GUIDE, ROPE ECH-17722705330
...
22
GRIP, STARTER ECH-17722819830
...
23
WASHER ECH-17722902830
...
24
COVER, HANDLE ECH-17724402830
...
25
WASHER 4 MM ECH-90060000004
...
26
SCREW 4x20 ECH-90022004020
...
27
SCREW - 4x35 ECH-90022004035
