product name

Echo SRM-302ADX Brushcutter

Model: SRM-302ADX

Back To Assemblies

Save Part Not Listed?
product name

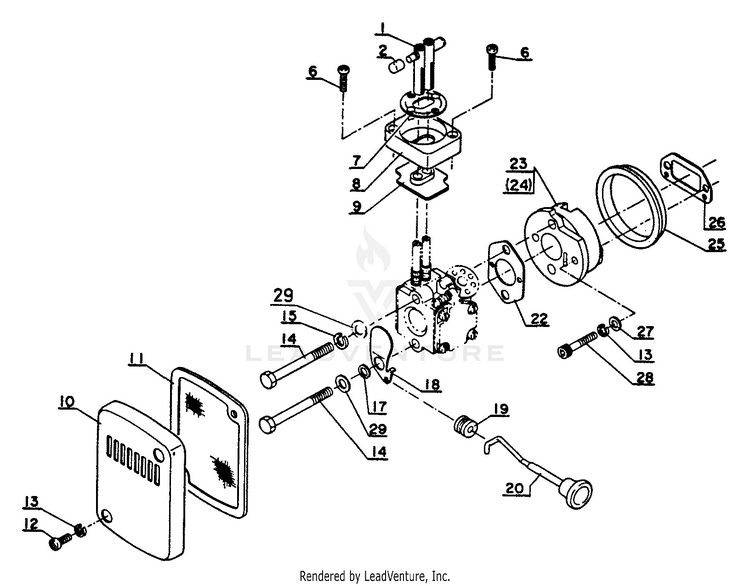

Intake, Exhaust, Air Cleaner

...
...
1
ADJUSTING ARM Includes ITEM 2 ECH-12900504132
...
2
ADJUSTING ARM ECH-12900504132
...
6
SCREW 3x10 ECH-90022003010
...
7
LABEL - DECOMPRESSION ECH-89015104930
...
8
FRAME ECH-12901604130
...
9
GROMMET ECH-12901504130
...
10
COVER, AIR FILTER ECH-13031304930
...
11
FILTER, AIR ECH-13031004130
...
12
SCREW 4x12 ECH-90022004012
...
13
WASHER, SPRING 4 ECH-900605-00004
...
14
BOLT 5x40 ECH-90010005040
...
15
WASHER, SPRING 5 ECH-90060500005
...
17
WASHER 5.2x8x0.8T ECH-17851600830
...
18
SHUTTER, CHOKE ECH-17851503331
...
19
GROMMET, CHOKE ECH-17881003330
...
20
ROD, CHOKE ECH-17851004131
...
22
GASKET, INTAKE ECH-13001604130
...
24
UNKNOWN ECH---
...
23
INSULATOR ECH-13000704131
...
25
CARBURETOR RUBBER GROMMET ECH-13001204130
...
26
GASKET ECH-13001003932
...
27
WASHER 4 MM ECH-90060000004
...
28
BOLT, HEX 4x20 ECH-90010504020
...
29
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
